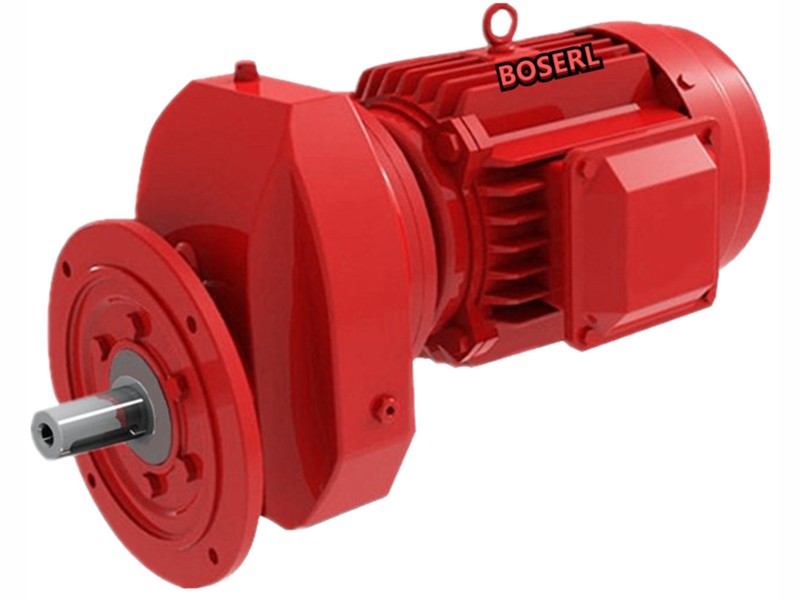

R67 speed-reducing motorDetailed Information
Keyword: r67 deviators electric motion_r67y2. 2kw_r67y3kw_r67 deviators producer_r67 deviators
R67Y2.2KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67Y2.2KW | 39.88 | 2.2KW | 36.0rpm | 585N.m | 57kg | 7700N | 1.00 |
| R67Y2.2KW | 37.50 | 2.2KW | 38.0rpm | 550N.m | 57kg | 8080N | 1.05 |
| R67Y2.2KW | 32.27 | 2.2KW | 44.0rpm | 475N.m | 57kg | 8790N | 1.15 |
| R67Y2.2KW | 28.83 | 2.2KW | 49.0rpm | 425N.m | 57kg | 9170N | 1.20 |
| R67Y2.2KW | 23.00 | 2.2KW | 61.0rpm | 345N.m | 57kg | 9110N | 1.60 |
| R67Y2.2KW | 19.89 | 2.2KW | 72.0rpm | 290N.m | 57kg | 8740N | 2.00 |
| R67Y2.2KW | 17.95 | 2.2KW | 79.0rpm | 260N.m | 57kg | 8510N | 2.20 |
| R67Y2.2KW | 15.79 | 2.2KW | 90.0rpm | 230N.m | 57kg | 8220N | 2.40 |
| R67Y2.2KW | 14.91 | 2.2KW | 96.0rpm | 215N.m | 57kg | 8090N | 2.50 |
| R67Y2.2KW | 12.70 | 2.2KW | 112rpm | 187N.m | 57kg | 7740N | 2.80 |
| R67Y2.2KW | 11.54 | 2.2KW | 123rpm | 170N.m | 57kg | 7530N | 2.90 |
| R67Y2.2KW | 10.00 | 2.2KW | 143rpm | 147N.m | 57kg | 7230N | 3.20 |
| R67Y2.2KW | 8.70 | 2.2KW | 164rpm | 128N.m | 57kg | 6940N | 3.40 |
| R67Y2.2KW | 7.79 | 2.2KW | 183rpm | 115N.m | 57kg | 6730N | 3.30 |
R67y3kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67Y3KW | 19.89 | 3KW | 73.0rpm | 390N.m | 60kg | 8350N | 1.55 |
| R67Y3KW | 17.95 | 3KW | 81.0rpm | 350N.m | 60kg | 8150N | 1.65 |
| R67Y3KW | 15.79 | 3KW | 92.0rpm | 310N.m | 60kg | 7900N | 1.80 |
| R67Y3KW | 14.91 | 3KW | 98.0rpm | 290N.m | 60kg | 7790N | 1.85 |
| R67Y3KW | 23.44 | 3KW | 62.0rpm | 460N.m | 60kg | 8660N | 1.20 |
| R67Y3KW | 12.70 | 3KW | 115rpm | 250N.m | 60kg | 7470N | 2.10 |
| R67Y3KW | 11.54 | 3KW | 126rpm | 225N.m | 60kg | 7290N | 2.20 |
| R67Y3KW | 10.00 | 3KW | 146rpm | 197N.m | 60kg | 7010N | 2.40 |
R67reducing motorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction
R67reducing motorInstall size drawings
R67reducing motorProduction plant display: three days' appointment for the factory
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
