R67R37DRS71D4Detailed Information
Keyword: 0. 37 kw power for reduction r67r37drs71d4_r67r37dr63ms4
R67R37DRS71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67R37DRS71D4 | 294 | 0.37KW | 4.70r/min | 665N.m | 44kg | 4670N | 0.90 |
| R67R37DRS71D4 | 261 | 0.37KW | 5.30r/min | 600N.m | 44kg | 7550N | 1.00 |
| R67R37DRS71D4 | 234 | 0.37KW | 5.90r/min | 535N.m | 44kg | 8220N | 1.10 |
| R67R37DRS71D4 | 200 | 0.37KW | 6.90r/min | 455N.m | 44kg | 8930N | 1.30 |
R67r37dr63ms4 deviation motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67R37DR63MS4 | 891 | 0.12KW | 1.60r/min | 625N.m | 39kg | 7190N | 0.95 |
| R67R37DR63MS4 | 730 | 0.12KW | 1.90r/min | 505N.m | 39kg | 8530N | 1.20 |
| R67R37DR63MS4 | 644 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9060N | 1.35 |
| R67R37DR63MS4 | 571 | 0.12KW | 2.40r/min | 385N.m | 39kg | 9430N | 1.55 |
| R67R37DR63MS4 | 486 | 0.12KW | 2.80r/min | 320N.m | 39kg | 9790N | 1.85 |
| R67R37DR63MS4 | 836 | 0.12KW | 1.60r/min | 590N.m | 39kg | 7670N | 1.00 |
| R67R37DR63MS4 | 750 | 0.12KW | 1.80r/min | 490N.m | 39kg | 8630N | 1.20 |
| R67R37DR63MS4 | 646 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9050N | 1.35 |
| R67R37DR63MS4 | 574 | 0.12KW | 2.40r/min | 400N.m | 39kg | 9330N | 1.50 |
| R67R37DR63MS4 | 495 | 0.12KW | 2.80r/min | 345N.m | 39kg | 9660N | 1.75 |
| R67R37DR63MS4 | 438 | 0.12KW | 3.20r/min | 285N.m | 39kg | 9940N | 2.10 |
R67r37drrs71d4 deviation motorType:

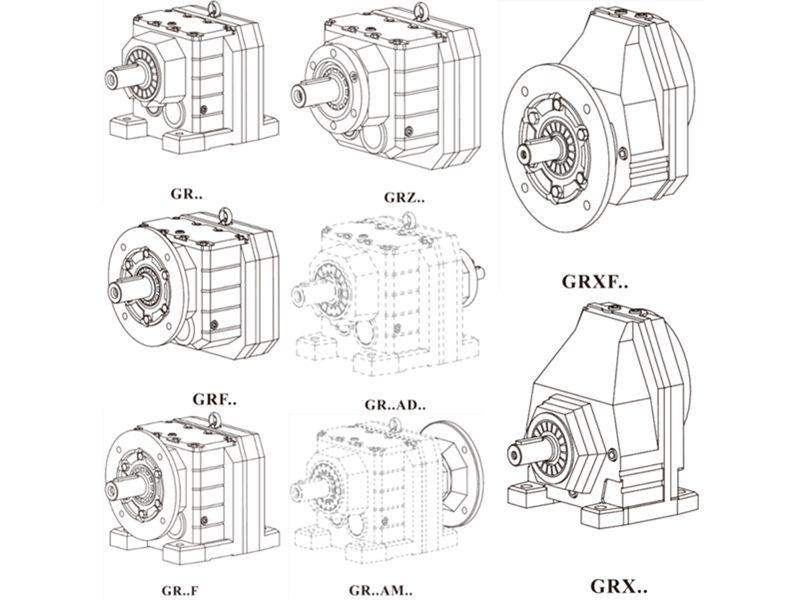

Rx67r37drs71d4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors
Rxf67r37drs71d4 electric motion single level b5flMotor geared reducer
R67r37drrs71d4 electric motor base foot installation of tilt gear reduction power
R67fr37drrs71d4 motor base, b5franc installation of tilt gear reduction power
Rf67r37drs71d4 electric motor b5fl
Rz67r37drrs71d4 electric motor b14 frf installation of tilt gear reduction power
R67r37drrs71d4 deviation motorInstall size drawings
R67r37drs71d4 power plant, three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: How does 0. 37kw power fit the speed reduction machine r67r37drrs71d4 r67r37dr63ms4
- 上一条R67R37DRS63L4
- 下一条R67R37DRS71S4
