R67R37DV71M4Detailed Information
Keyword: 0. 37 kw power matching axle-reducing machine_r67r37dv71m4_r67r37drrn63m4
R67R37DV71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67R37DV71M4 | 294 | 0.37KW | 4.70r/min | 665N.m | 44kg | 4670N | 0.90 |
| R67R37DV71M4 | 261 | 0.37KW | 5.30r/min | 600N.m | 44kg | 7550N | 1.00 |
| R67R37DV71M4 | 234 | 0.37KW | 5.90r/min | 535N.m | 44kg | 8220N | 1.10 |
| R67R37DV71M4 | 200 | 0.37KW | 6.90r/min | 455N.m | 44kg | 8930N | 1.30 |
R67r37drn63m4 reduction motorparameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R67R37DRN63M4 | 891 | 0.12KW | 1.60r/min | 625N.m | 39kg | 7190N | 0.95 |
| R67R37DRN63M4 | 730 | 0.12KW | 1.90r/min | 505N.m | 39kg | 8530N | 1.20 |
| R67R37DRN63M4 | 644 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9060N | 1.35 |
| R67R37DRN63M4 | 571 | 0.12KW | 2.40r/min | 385N.m | 39kg | 9430N | 1.55 |
| R67R37DRN63M4 | 486 | 0.12KW | 2.80r/min | 320N.m | 39kg | 9790N | 1.85 |
| R67R37DRN63M4 | 836 | 0.12KW | 1.60r/min | 590N.m | 39kg | 7670N | 1.00 |
| R67R37DRN63M4 | 750 | 0.12KW | 1.80r/min | 490N.m | 39kg | 8630N | 1.20 |
| R67R37DRN63M4 | 646 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9050N | 1.35 |
| R67R37DRN63M4 | 574 | 0.12KW | 2.40r/min | 400N.m | 39kg | 9330N | 1.50 |
| R67R37DRN63M4 | 495 | 0.12KW | 2.80r/min | 345N.m | 39kg | 9660N | 1.75 |
| R67R37DRN63M4 | 438 | 0.12KW | 3.20r/min | 285N.m | 39kg | 9940N | 2.10 |
R67r37dv71m4 deviation engineType:
Rx67r37dv71m4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors
Rxf67r37dv71m4 power-motion single-level b5 franMotor geared reducer
R67r37dv71m4 electric motor base foot installation of tilt gear reduction power
R67fr37dv71m4 deviation motor base foot, b5franc installation of tilt gear deviator
Rf67r37dv71m4 electric motor b5fl
Rz67r37dv71m4 deviation engine b14 frf installation of tilt gear deviation engine

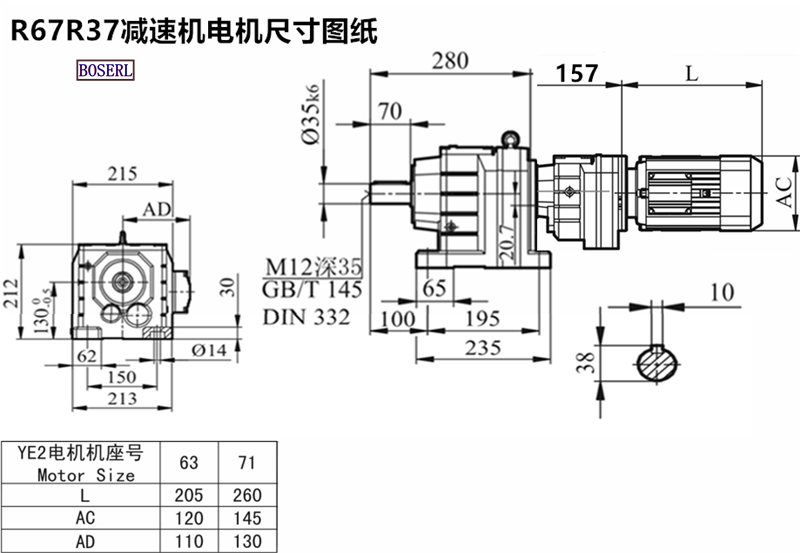

R67r37dv71m4 deviation engineInstall size drawings
R67r37dv71m4reducing power plantHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
