R77 Motor reducerDetailed Information

R77 Motor reducer
prevnext

R77 Motor reducer

TEL：Email:[email protected]
  1. 详细信息

Keywords: R77 motor reducer_R77Y0.75KW_R77Y1.1KW_R77 motor_R77 motor manufacturer

R77Y0.75KW Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R77Y0.75KW166.59
0.75KW8.60rpm830N.m52kg9810N1.00
R77Y0.75KW145.670.75KW9.80rpm725N.m52kg10700N1.15
R77Y0.75KW138.390.75KW10.0rpm690N.m52kg11000N1.20
R77Y0.75KW121.420.75KW12.0rpm605N.m52kg11500N1.35
R77Y0.75KW102.990.75KW14.0rpm510N.m52kg12000N1.60
R77Y0.75KW92.970.75KW15.0rpm460N.m52kg12200N1.75
R77Y0.75KW81.80.75KW18.0rpm405N.m52kg12500N2.00
R77Y0.75KW77.240.75KW19.0rpm385N.m52kg12500N2.10
R77Y0.75KW65.770.75KW22.0rpm325N.m52kg12700N2.50
R77Y0.75KW57.680.75KW25.0rpm285N.m52kg12800N2.80
R77Y0.75KW52.070.75KW28.0rpm255N.m52kg12900N3.20
R77Y0.75KW45.810.75KW31.0rpm225N.m52kg13000N3.60
R77Y0.75KW43.260.75KW33.0rpm215N.m52kg13000N3.80

R77y1. 1kw Motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R77Y1.1KW121.421.1KW12.0rpm890N.m56kg9130N0.90
R77Y1.1KW102.991.1KW14.0rpm760N.m56kg10400N1.10
R77Y1.1KW92.971.1KW15.0rpm685N.m56kg11000N1.20
R77Y1.1KW81.81.1KW17.0rpm605N.m56kg11500N1.35
R77Y1.1KW77.241.1KW18.0rpm570N.m56kg11700N1.45
R77Y1.1KW65.771.1KW22.0rpm485N.m56kg12100N1.70
R77Y1.1KW57.681.1KW25.0rpm425N.m56kg12400N1.90
R77Y1.1KW52.071.1KW27.0rpm385N.m56kg12500N2.10
R77Y1.1KW45.811.1KW31.0rpm335N.m56kg12700N2.40
R77Y1.1KW43.261.1KW33.0rpm320N.m56kg12700N2.60
R77Y1.1KW36.831.1KW39.0rpm270N.m56kg12900N3.00
R77Y1.1KW33.471.1KW42.0rpm245N.m56kg12900N3.30

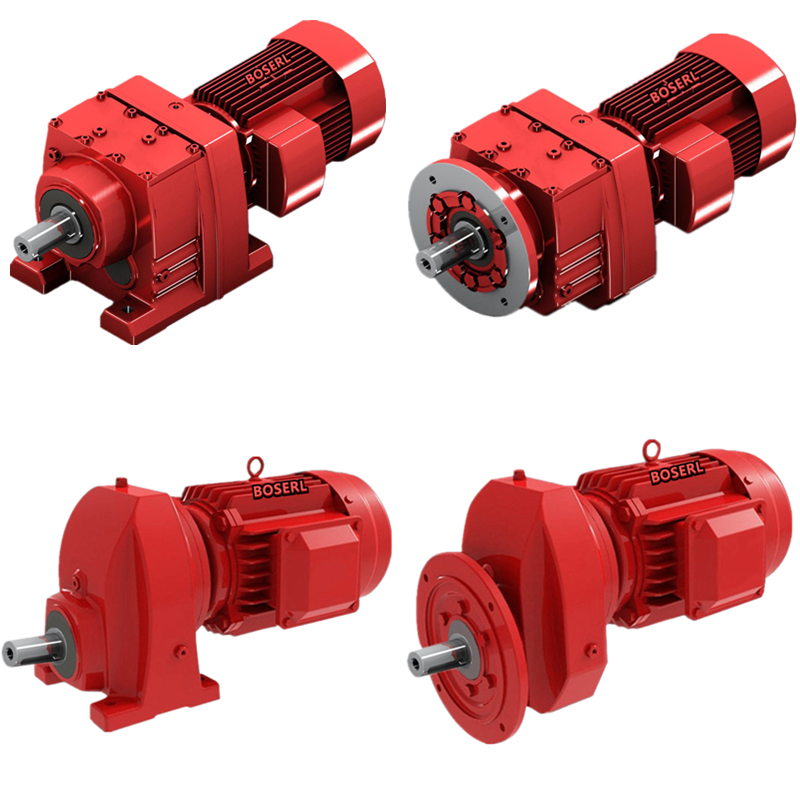

R77 Motor reducer Type:

Rx77y0. 75kw single-step bottom foot installation of tilt gear-reducing power

Rxf77y0. 75kw single level b5 installation slope Motor geared reducer

R77y0. 75kw bottom foot installation of tilt gear-reducing power

R77fy0. 75kw bottom foot, b5frand installation of tilt gear deviation engine

Rf77y0. 75kwb5 installation of tilt gear-reducing power

Rz77y0. 75 kwb14 installation of tilt gear-reducing electric power

Rx77y1. 1kw single-step bottom foot installation of tilt gear-reducing electric power

Rxf77y1. 1kw single-scale b5 flang installation of tilt gear-reducing motors

R77y1. 1kw bottom foot installation of tilt gear deviation engine

R77fy1. 1kw bottom foot, b5frand installation of tilt gear deviation

Rf77y1. 1kwb5 installation of tilt gear-reducing power

Rz77y1. 1flkwb14 installation of tilt gear reduction power

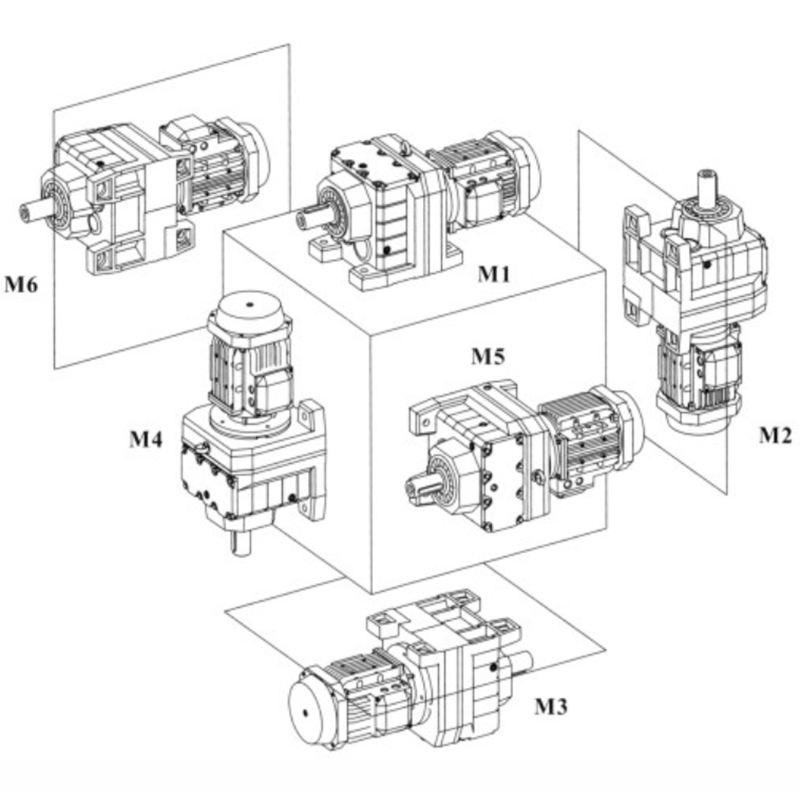

Horizontal reducer.png

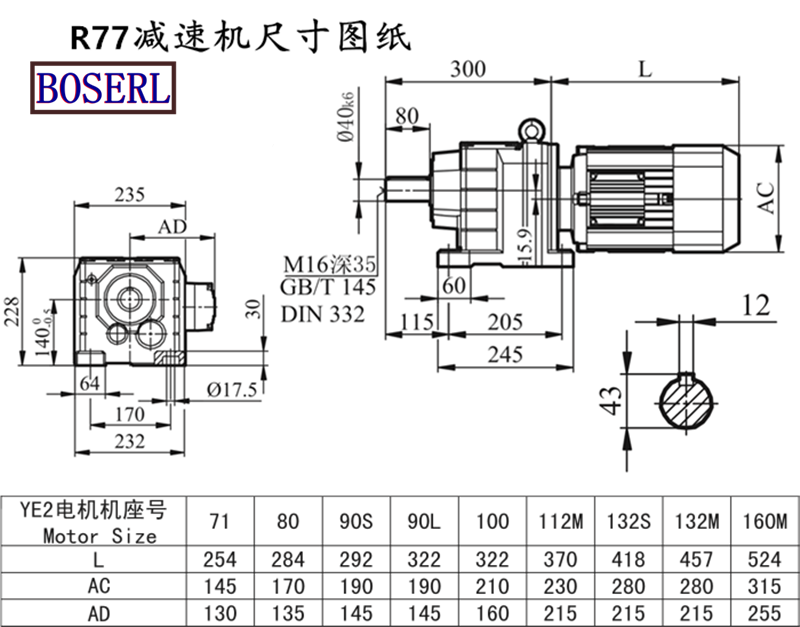

R77 Motor reducer size drawings

1540797169901452.pngHorizontal reducer.png

R77 Motor reducer Producer: Please make an appointment three days in advance Horizontal reducer

Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
