R77R37DVE63M4Detailed Information
Keyword: 0. 12 kw power sets with a plattered gear-reducing power _ r77r37dve63m4_r77r37dre80m4_R77R37DM63M4
R77R37DVE63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R77R37DVE63M4 | 1303 | 0.12KW | 1.10r/min | 930N.m | 50kg | 8660N | 0.85 |
| R77R37DVE63M4 | 1124 | 0.12KW | 1.20r/min | 795N.m | 50kg | 10100N | 1.05 |
| R77R37DVE63M4 | 1047 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| R77R37DVE63M4 | 915 | 0.12KW | 1.50r/min | 635N.m | 50kg | 11300N | 1.30 |
| R77R37DVE63M4 | 1218 | 0.12KW | 1.10r/min | 820N.m | 50kg | 9910N | 1.00 |
| R77R37DVE63M4 | 1084 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| R77R37DVE63M4 | 940 | 0.12KW | 1.50r/min | 660N.m | 50kg | 11200N | 1.25 |
| R77R37DVE63M4 | 821 | 0.12KW | 1.70r/min | 520N.m | 50kg | 12000N | 1.55 |
| R77R37DVE63M4 | 731 | 0.12KW | 1.90r/min | 475N.m | 50kg | 12200N | 1.70 |
| R77R37DVE63M4 | 646 | 0.12KW | 2.10r/min | 455N.m | 50kg | 12300N | 1.80 |
| R77R37DVE63M4 | 520 | 0.12KW | 2.60r/min | 375N.m | 50kg | 12600N | 2.20 |
| R77R37DVE63M4 | 451 | 0.12KW | 3.10r/min | 320N.m | 50kg | 12700N | 2.50 |
| R77R37DVE63M4 | 422 | 0.12KW | 3.30r/min | 300N.m | 50kg | 12800N | 2.70 |
| R77R37DVE63M4 | 365 | 0.12KW | 3.80r/min | 255N.m | 50kg | 12900N | 3.20 |
R77R37DRE80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R77R37DRE80M4 | 276 | 0.55KW | 5.00r/min | 970N.m | 59.5kg | 6200N | 0.85 |
| R77R37DRE80M4 | 236 | 0.55KW | 5.80r/min | 820N.m | 59.5kg | 9850N | 1.00 |
| R77R37DRE80M4 | 221 | 0.55KW | 6.20r/min | 770N.m | 59.5kg | 10300N | 1.05 |
| R77R37DRE80M4 | 186 | 0.55KW | 7.40r/min | 645N.m | 59.5kg | 11300N | 1.25 |
R77r37dve63m4 machineType:
Rx77r37dve63m4 electricly motorized single-stage bottom foot installation of tilt gear-reducing power
Rxf77r37dve63m4 power drive single level b5flMotor geared reducer
R77r37dve63m4 electric motor base foot installation of tilt gear reduction power
R77fr37dve63m4 motor base forreducing machines, and b5fl for tilt gear-reducing motors
Rf77r37dve63m4 deviation engine b5frand installation of tilt gear deviators
Rz77r37dve63m4 deviation motor b14frand installation of tilt gear deviators

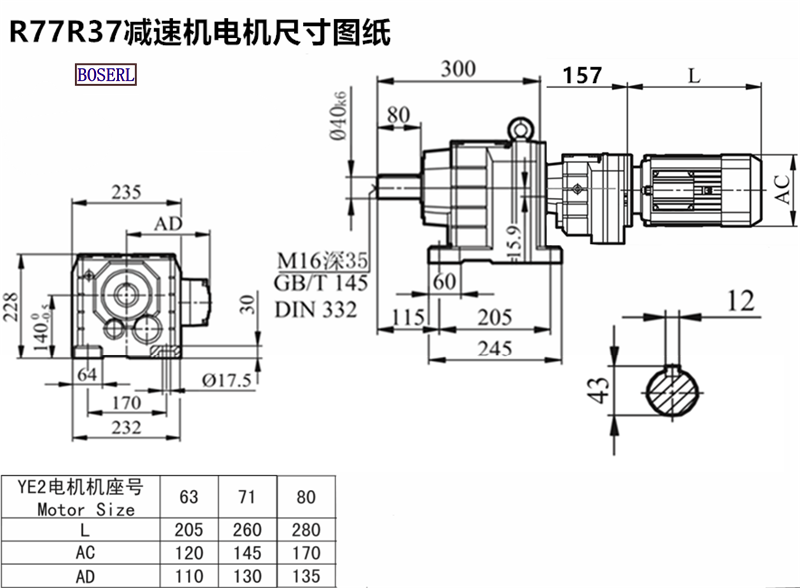

R77r37dve63m4 deviation motorInstall size drawings
R77r37dve63m4 deviation power plant, three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
