Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Horizontal reducer

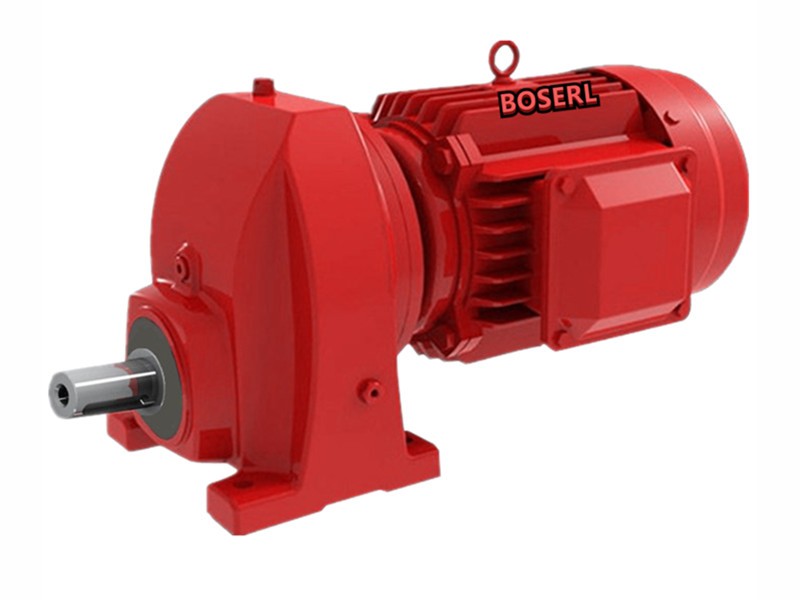

R87DT112M4Detailed Information

R87DT112M4
prevnext

R87DT112M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: drives 1 to 155reducing machines _ r87dt112m4 _ r87drs112m4 _ movers _ 155 to 1

R87DT112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R87DT112M493.383KW16rpm1830N.m98kg12000N0.85
R87DT112M481.923KW18rpm1610N.m98kg16500N0.95
R87DT112M472.573KW20rpm1420N.m98kg17700N1.1
R87DT112M463.683KW23rpm1250N.m98kg18700N1.25
R87DT112M460.353KW24rpm1180N.m98kg19000N1.3
R87DT112M452.823KW28rpm1030N.m98kg19700N1.5
R87DT112M447.583KW31rpm930N.m98kg19800N1.65
R87DT112M441.743KW35rpm820N.m98kg19200N1.9
R87DT112M436.843KW40rpm725N.m98kg18500N2.1
R87DT112M432.663KW45rpm640N.m98kg17900N2.4
R87DT112M427.883KW52rpm545N.m98kg17200N2.7
R87DT112M434.43KW42rpm675N.m98kg18200N2.2
R87DT112M431.43KW46rpm615N.m98kg17800N2.5
R87DT112M427.843KW52rpm545N.m98kg17200N2.8
R87DT112M423.43KW62rpm460N.m98kg16300N3.4
R87DT112M421.513KW68rpm420N.m98kg15900N3.5
R87DT112M419.13KW76rpm375N.m98kg15400N3.8
R87DT112M417.083KW85rpm335N.m98kg14900N4.1
R87DT112M415.353KW95rpm300N.m98kg14400N4.4

R87drs112m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R87DRS112M463.684KW23rpm1660N.m109kg13600N0.95
R87DRS112M460.354KW24rpm1570N.m109kg14200N1
R87DRS112M452.824KW28rpm1380N.m109kg15500N1.1
R87DRS112M447.584KW31rpm1240N.m109kg16200N1.25
R87DRS112M441.744KW35rpm1090N.m109kg17000N1.4
R87DRS112M436.844KW40rpm960N.m109kg17500N1.6
R87DRS112M432.664KW45rpm850N.m109kg17400N1.8
R87DRS112M427.884KW52rpm725N.m109kg16700N2.1
R87DRS112M434.44KW42rpm900N.m109kg17600N1.65
R87DRS112M431.44KW46rpm820N.m109kg17200N1.9
R87DRS112M427.844KW52rpm725N.m109kg16700N2.1
R87DRS112M423.44KW62rpm610N.m109kg16000N2.5
R87DRS112M421.514KW68rpm560N.m109kg15600N2.7
R87DRS112M419.14KW76rpm495N.m109kg15100N2.9
R87DRS112M417.084KW85rpm445N.m109kg14600N3.1
R87DRS112M415.354KW95rpm400N.m109kg14200N3.3
R87DRS112M413.334KW110rpm345N.m109kg13600N3.7
R87DRS112M411.934KW122rpm310N.m109kg13200N3.9

Rr87dt112m4 motor reduction machineType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

R87dt112m4 motor reduction machineInstall size drawings

1540797057516524.pngHorizontal reducer.png

R87dt112m4 motor reduction machineProduction plant display: three days' appointment for the factory

Horizontal reducerPresentation of application cases:


Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
