R87DVE100L4Detailed Information

R87DVE100L4
prevnext

R87DVE100L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 2. 2 kwh motor decelerator_r87dve100l4_r87dv100ls4

R87DVE100L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R87DVE100L4124.972.2KW11rpm1840N.m96kg11700N0.85
R87DVE100L4118.432.2KW12rpm1740N.m96kg15400N0.9
R87DVE100L4103.652.2KW14rpm1520N.m96kg17100N1
R87DVE100L493.382.2KW15rpm1370N.m96kg18000N1.15
R87DVE100L481.922.2KW17rpm1200N.m96kg18900N1.3
R87DVE100L472.572.2KW20rpm1060N.m96kg19600N1.45
R87DVE100L463.682.2KW22rpm930N.m96kg20000N1.65
R87DVE100L460.352.2KW24rpm880N.m96kg20000N1.75
R87DVE100L452.822.2KW27rpm775N.m96kg20000N2
R87DVE100L447.582.2KW30rpm700N.m96kg20000N2.2
R87DVE100L441.742.2KW34rpm615N.m96kg19800N2.5
R87DVE100L436.842.2KW39rpm540N.m96kg19100N2.8
R87DVE100L432.662.2KW44rpm480N.m96kg18500N3.2
R87DVE100L434.42.2KW41rpm505N.m96kg18800N3
R87DVE100L431.42.2KW45rpm460N.m96kg18300N3.4
R87DVE100L427.842.2KW51rpm410N.m96kg17600N3.8
R87DVE100L423.42.2KW61rpm345N.m96kg16700N4.5
R87DVE100L421.512.2KW66rpm315N.m96kg16300N4.7

R87dv100ls4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
R87DV100LS4246.540.37KW3.7rpm960N.m73.5kg
20000N1.6
R87DV100LS4216.540.37KW4.2rpm840N.m73.5kg20000N1.85
R87DV100LS4205.710.37KW4.4rpm800N.m73.5kg
20000N1.95
R87DV100LS4181.770.37KW5rpm705N.m73.5kg20000N2.2
R87DV100LS4155.340.37KW5.8rpm605N.m73.5kg
20000N2.6
R87DV100LS4142.410.37KW6.4rpm555N.m73.5kg20000N2.8

R87dve100l4 electric motor retarderType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

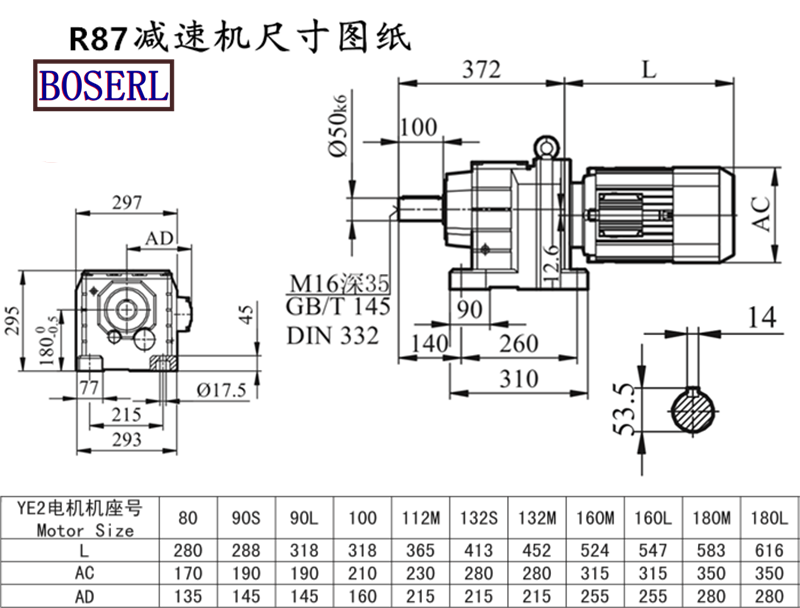

R87dve100l4 electric motor retarderInstall size drawings

1540797057516524.pngHorizontal reducer.png

R87dve100l4 electric motor retarderProduction plant display: three days' appointment for the factory

Horizontal reducerPresentation of application cases:


Horizontal reducer,Horizontal gear reducer,Horizontal  motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
