0. 55 kw power matching axle slash gear brakes_ r87r57dve80mk4_boserl moving r87r57dre71ms4 growth plant

R87R57DVE80MK4Detailed Information

prevnext

R87R57DVE80MK4

TEL：Email:[email protected]

详细信息

Keyword: 0. 55 kw power matching axle oscillator _ r87r57dve80mk4_r87r57drre71ms4

R87R57DVE80MK4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
R87R57DVE80MK4	525	0.55KW	2.60r/min	1780N.m	96kg	15000N	0.85
R87R57DVE80MK4	456	0.55KW	3.00r/min	1550N.m	96kg	16900N	1.00
R87R57DVE80MK4	398	0.55KW	3.50r/min	1340N.m	96kg	18200N	1.15
R87R57DVE80MK4	352	0.55KW	3.90r/min	1190N.m	96kg	19000N	1.30
R87R57DVE80MK4	305	0.55KW	4.50r/min	1020N.m	96kg	19700N	1.50
R87R57DVE80MK4	472	0.55KW	2.90r/min	1660N.m	96kg	16100N	0.95
R87R57DVE80MK4	400	0.55KW	3.40r/min	1400N.m	96kg	17900N	1.10
R87R57DVE80MK4	361	0.55KW	3.80r/min	1260N.m	96kg	18700N	1.25

R87R57DRE71MS4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
R87R57DRE71MS4	1145	0.25KW	1.10r/min	1850N.m	91kg	10700N	0.85
R87R57DRE71MS4	1037	0.25KW	1.20r/min	1660N.m	91kg	16000N	0.95
R87R57DRE71MS4	931	0.25KW	1.40r/min	1480N.m	91kg	17400N	1.05
R87R57DRE71MS4	802	0.25KW	1.60r/min	1260N.m	91kg	18600N	1.20
R87R57DRE71MS4	1143	0.25KW	1.10r/min	1790N.m	91kg	14700N	0.85
R87R57DRE71MS4	885	0.25KW	1.50r/min	1420N.m	91kg	17800N	1.10
R87R57DRE71MS4	776	0.25KW	1.70r/min	1240N.m	91kg	18700N	1.25
R87R57DRE71MS4	685	0.25KW	1.90r/min	1100N.m	91kg	19400N	1.40
R87R57DRE71MS4	599	0.25KW	2.20r/min	920N.m	91kg	20000N	1.65
R87R57DRE71MS4	525	0.25KW	2.50r/min	810N.m	91kg	20000N	1.90
R87R57DRE71MS4	456	0.25KW	2.80r/min	715N.m	91kg	20000N	2.20
R87R57DRE71MS4	268	0.25KW	4.90r/min	415N.m	91kg	20000N	3.70

R87r57dve80mk4 deviation electricType:

Rx87r57dve80mk4 power-motion single-stage bottom foot with tilt gear-reducing power

Rxf87r57dve80mk4 power-motion single-level b5 franMotor geared reducer

R87r57dve80mk4 electric motor base foot installation of tilt gear reduction power

R87fr57dve80mk4 motor base, b5f with tilt gear reduction power

Rf87r57dve80mk4 deviation engine b5 franc installation of tilt gear deviation power

Rz87r57dve80mk4 deviation motor b14 frf installation of tilt gear deviation power

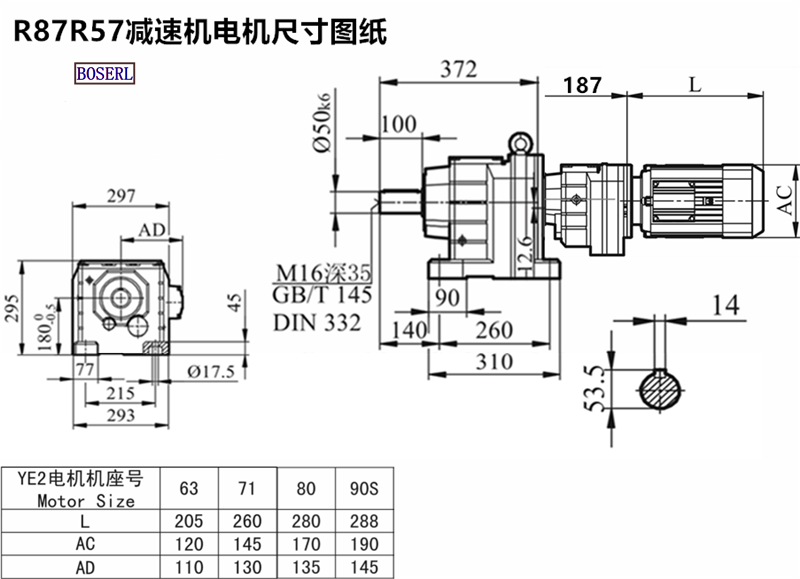

R87r57dve80mk4 deviation electricInstall size drawings

Horizontal reducer.png

R87r57dve80mk4 deviation power plant. please make an appointment three days in advanceHorizontal reducer

Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared

R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer

R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.

标签: How 0. 55 kw power matches the axle-slash gear brakes. r87r57dve80mk4rr87r57dre71ms4

tags： How 0. 55 kw power matches the axle-slash gear brakes. r87r57dve80mk4rr87r57dre71ms4

上一条R87R57DT80MK4
下一条R87R57DT71D4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
R87R57DVE80MK4减速机样本
R87R57DVE80MK4减速机图纸
