R97 speed reduction motorDetailed Information
Keyword: r97 deviation electric motion _r97y0. 55kw_r97y0. 75kw_r97 deviation machine _r97 deviation plant
R97Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R97Y0.55KW | 289.74 | 0.55kw | 4.8rpm | 1100N.m | 110kg | 27700N | 2.7 |
| R97Y0.55KW | 255.71 | 0.55kw | 5.4rpm | 970N.m | 110kg | 27900N | 3.1 |
| R97Y0.55KW | 241.25 | 0.55kw | 5.7rpm | 910N.m | 110kg | 28000N | 3.3 |
| R97Y0.55KW | 216.28 | 0.55kw | 6.4rpm | 820N.m | 110kg | 28100N | 3.6 |
R97y0. 75 kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R97Y0.75KW | 289.74 | 0.75kw | 4.9rpm | 1470N.m | 110kg | 27700N | 2 |
| R97Y0.75KW | 255.71 | 0.75kw | 5.5rpm | 1290N.m | 110kg | 27900N | 2.3 |
| R97Y0.75KW | 241.25 | 0.75kw | 5.8rpm | 1220N.m | 110kg | 28000N | 2.4 |
| R97Y0.75KW | 216.28 | 0.75kw | 6.5rpm | 1090N.m | 110kg | 28100N | 2.7 |
| R97Y0.75KW | 186.3 | 0.75kw | 7.6rpm | 940N.m | 110kg | 28300N | 3.2 |
| R97Y0.75KW | 170.02 | 0.75kw | 8.3rpm | 860N.m | 110kg | 28300N | 3.5 |
R97Motion types for reduction machines:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

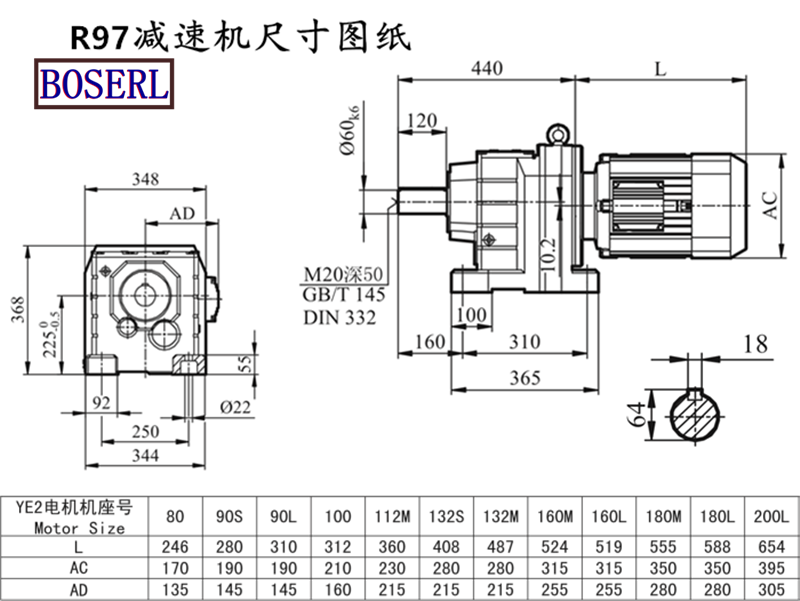

R97Speeding motorsInstall size drawings
R97Speeding motorsProduction plant display: three days' appointment for the factory
Horizontal reducerPresentation of application cases:
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
标签: r97 speed reduction motor r97y0. 55 kw r97y0. 75 kw r97 speed reduction machine r97 speed reduction plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| R97减速机电动机样本 |
|
| R97减速机电动机三维图纸 |
|
