R97R57DR90M4Detailed Information
Keyword: 1. 1 kw power with gear brakes_ r97r57dr90m4_r97r57dm63m4_R97R57DRS90M4
R97R57DR90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R97R57DR90M4 | 431 | 1.1KW | 3.30r/min | 2940N.m | 139kg | 21300N | 1.00 |
| R97R57DR90M4 | 379 | 1.1KW | 3.70r/min | 2580N.m | 139kg | 23600N | 1.15 |
| R97R57DR90M4 | 336 | 1.1KW | 4.20r/min | 2290N.m | 139kg | 25100N | 1.30 |
| R97R57DR90M4 | 296 | 1.1KW | 4.80r/min | 2010N.m | 139kg | 26300N | 1.50 |
| R97R57DR90M4 | 249 | 1.1KW | 5.70r/min | 1680N.m | 139kg | 27400N | 1.80 |
| R97R57DR90M4 | 234 | 1.1KW | 6.10r/min | 1570N.m | 139kg | 27500N | 1.90 |
| R97R57DR90M4 | 209 | 1.1KW | 6.80r/min | 1400N.m | 139kg | 27800N | 2.10 |
| R97R57DR90M4 | 268 | 1.1KW | 5.30r/min | 1810N.m | 139kg | 13600N | 0.85 |
| R97R57DR90M4 | 236 | 1.1KW | 6.00r/min | 1600N.m | 139kg | 16600N | 0.95 |
| R97R57DR90M4 | 209 | 1.1KW | 6.80r/min | 1400N.m | 139kg | 17900N | 1.10 |
R97r57dm63m4 reduction motorparameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| R97R57DM63M4 | 4559 | 0.12KW | 0.30r/min | 3050N.m | 124.5kg | 17700N | 1.00 |
| R97R57DM63M4 | 4004 | 0.12KW | 0.34r/min | 2560N.m | 124.5kg | 23700N | 1.15 |
| R97R57DM63M4 | 3481 | 0.12KW | 0.40r/min | 2270N.m | 124.5kg | 25200N | 1.30 |
| R97R57DM63M4 | 4678 | 0.12KW | 0.29r/min | 3230N.m | 124.5kg | 4840N | 0.95 |
| R97R57DM63M4 | 4309 | 0.12KW | 0.32r/min | 2980N.m | 124.5kg | 20400N | 1.00 |
| R97R57DM63M4 | 3702 | 0.12KW | 0.37r/min | 2560N.m | 124.5kg | 23700N | 1.15 |
| R97R57DM63M4 | 3019 | 0.12KW | 0.46r/min | 2080N.m | 124.5kg | 26100N | 1.45 |
| R97R57DM63M4 | 2668 | 0.12KW | 0.52r/min | 1800N.m | 124.5kg | 27100N | 1.65 |
| R97R57DM63M4 | 2245 | 0.12KW | 0.61r/min | 1480N.m | 124.5kg | 27700N | 2.00 |
| R97R57DM63M4 | 2016 | 0.12KW | 0.68r/min | 1300N.m | 124.5kg | 27900N | 2.30 |
| R97R57DM63M4 | 1733 | 0.12KW | 0.80r/min | 1190N.m | 124.5kg | 28000N | 2.50 |
| R97R57DM63M4 | 3065 | 0.12KW | 0.45r/min | 2120N.m | 124.5kg | 25900N | 1.40 |
| R97R57DM63M4 | 2722 | 0.12KW | 0.51r/min | 1880N.m | 124.5kg | 26800N | 1.60 |
| R97R57DM63M4 | 2311 | 0.12KW | 0.60r/min | 1590N.m | 124.5kg | 27500N | 1.90 |
| R97R57DM63M4 | 2078 | 0.12KW | 0.66r/min | 1430N.m | 124.5kg | 27700N | 2.10 |
| R97R57DM63M4 | 1823 | 0.12KW | 0.76r/min | 1230N.m | 124.5kg | 28000N | 2.40 |
| R97R57DM63M4 | 1583 | 0.12KW | 0.87r/min | 1070N.m | 124.5kg | 28200N | 2.80 |
| R97R57DM63M4 | 1396 | 0.12KW | 0.99r/min | 900N.m | 124.5kg | 28300N | 3.30 |
| R97R57DM63M4 | 1228 | 0.12KW | 1.10r/min | 770N.m | 124.5kg | 28400N | 3.90 |

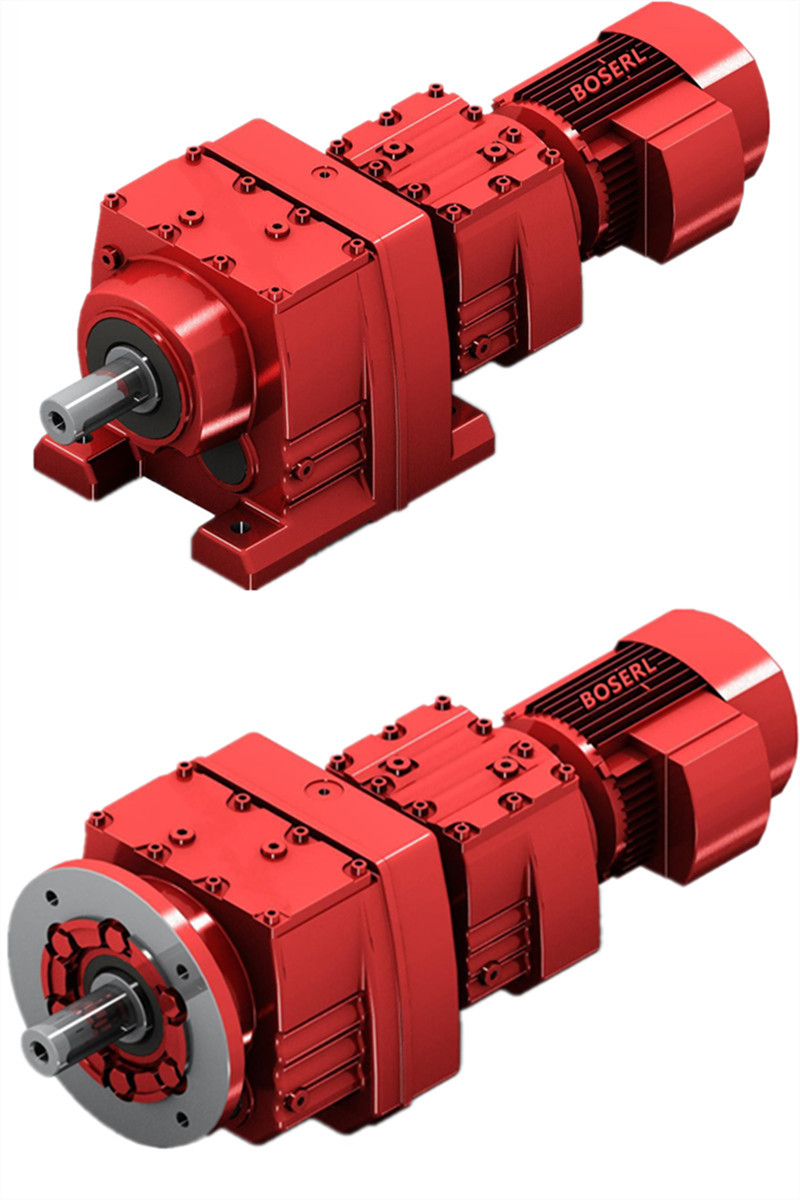

R97R57DR90M4Speeding machine type:
Rx97r57dr90m4 sole foot installation of tilt gearreducing power
Rxf97r57dr90m4 single b5Motor geared reducer
R97r57dr90m4 bottom foot installation of tilt gear reduction power
R97fr57dr90m4 bottom foot, b5frand installation of tilt gear reduction power
Rf97fr57dr90m4b5 installation of tilt gear-reducing electric power
Rz97fr57dr90m4b14 installation of tilt gear-reducing power sets

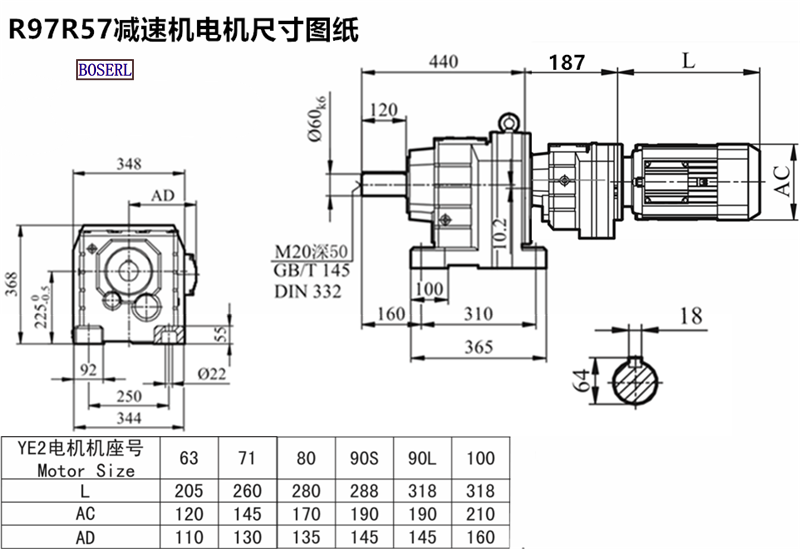

R97R57DR90M4Induction Motor 3Ph motors installed size drawings
R97R57DR90M4We need to make an appointment three days in advanceHorizontal reducer
Horizontal reducer,Horizontal gear reducer,Horizontal motor reducer, Motor geared
R Series Reducer Models: R17 Reducer, R27 Reducer, R37 Reducer, R47 Reducer, R57 Reducer, R67 Reducer, R77 Reducer, R87 Reducer, R97 Geared motor, R107 Gear Reducer, R137 Gear Reducer, R147 Gear Reducer, R167 Gear Reducer
R Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. and leave a message with your parameter requirements for the engineer.
