RF107 motor reducerDetailed Information
Keywords: RF107 motor reducer_RF107Y11KW_RF107Y15KW_RF107 motor_RF107 motor manufacturer
RF107Y11KW Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107Y11KW | 65.6 | 11kw | 22rpm | 4710N.m | 235kg | 26000N | 0.9 |
| RF107Y11KW | 59.41 | 11kw | 25rpm | 4270N.m | 235kg | 27600N | 1 |
| RF107Y11KW | 52.68 | 11kw | 28rpm | 3790N.m | 235kg | 27000N | 1.15 |
| RF107Y11KW | 47.63 | 11kw | 31rpm | 3420N.m | 235kg | 26500N | 1.25 |
| RF107Y11KW | 40.37 | 11kw | 36rpm | 2900N.m | 235kg | 25700N | 1.5 |
| RF107Y11KW | 35.26 | 11kw | 41rpm | 2530N.m | 235kg | 24900N | 1.7 |
| RF107Y11KW | 29.44 | 11kw | 50rpm | 2120N.m | 235kg | 23900N | 2 |
| RF107Y11KW | 30.77 | 11kw | 47rpm | 2210N.m | 235kg | 24200N | 1.95 |
| RF107Y11KW | 27.58 | 11kw | 53rpm | 1980N.m | 235kg | 23600N | 2.2 |
| RF107Y11KW | 24.9 | 11kw | 59rpm | 1790N.m | 235kg | 23000N | 2.4 |
| RF107Y11KW | 22.62 | 11kw | 65rpm | 1620N.m | 235kg | 22400N | 2.6 |
| RF107Y11KW | 20.07 | 11kw | 73rpm | 1440N.m | 235kg | 21700N | 3 |
| RF107Y11KW | 18.21 | 11kw | 80rpm | 1310N.m | 235kg | 21200N | 3.3 |
RF107y15kw motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107Y15KW | 47.63 | 15kw | 31rpm | 4670N.m | 270kg | 24500N | 0.9 |
| RF107Y15KW | 40.37 | 15kw | 36rpm | 3960N.m | 270kg | 23900N | 1.1 |
| RF107Y15KW | 35.26 | 15kw | 41rpm | 3460N.m | 270kg | 23400N | 1.25 |
| RF107Y15KW | 29.49 | 15kw | 50rpm | 2890N.m | 270kg | 22600N | 1.5 |
| RF107Y15KW | 30.77 | 15kw | 47rpm | 3020N.m | 270kg | 22800N | 1.4 |
| RF107Y15KW | 27.58 | 15kw | 53rpm | 2710N.m | 270kg | 22300N | 1.6 |
| RF107Y15KW | 24.9 | 15kw | 59rpm | 2440N.m | 270kg | 21900N | 1.75 |
| RF107Y15KW | 22.62 | 15kw | 65rpm | 2220N.m | 270kg | 21400N | 1.95 |
| RF107Y15KW | 20.07 | 15kw | 73rpm | 1970N.m | 270kg | 20900N | 2.2 |
| RF107Y15KW | 18.21 | 15kw | 80rpm | 1790N.m | 270kg | 20400N | 2.4 |
| RF107Y15KW | 15.65 | 15kw | 93rpm | 1540N.m | 270kg | 19700N | 2.8 |
| RF107Y15KW | 13.66 | 15kw | 107rpm | 1340N.m | 270kg | 19000N | 3.2 |
RF107 motor reducer type:
Rx. Dr.single-stage bottom foot with tilt gear-reducing power
Rxf. Dr.single-level b5 franc installation tilt Motor geared reducer
R. Dr.bottom foot with slash gears
R. F. Dr.bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

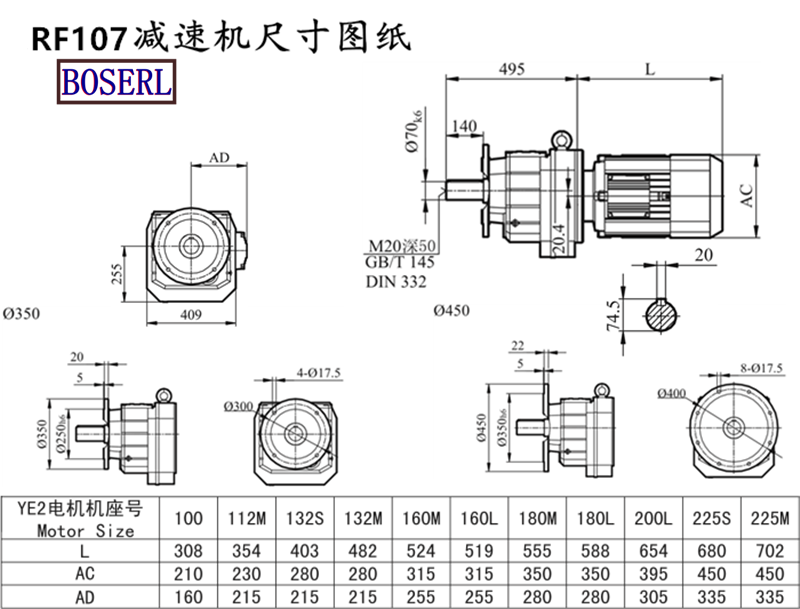

RF107 motor reducer size drawings
RF107 motor reducer production factory display: please make an appointment three days in advance to visit the factory Vertical reducer
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
