RF107R77DRN80M4Detailed Information
Keywords: 90kw electric power and how much gear-reducing box _rf107r77drn80m4_rf107r77dv112m4
RF107R77DRN80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107R77DRN80M4 | 1055 | 0.75KW | 1.40r/min | 4740N.m | 205kg | 25200N | 0.90 |
| RF107R77DRN80M4 | 919 | 0.75KW | 1.60r/min | 4140N.m | 205kg | 30300N | 1.05 |
| RF107R77DRN80M4 | 815 | 0.75KW | 1.80r/min | 3690N.m | 205kg | 32400N | 1.15 |
| RF107R77DRN80M4 | 939 | 0.75KW | 1.50r/min | 4210N.m | 205kg | 29900N | 1.00 |
| RF107R77DRN80M4 | 822 | 0.75KW | 1.80r/min | 3670N.m | 205kg | 32500N | 1.15 |
| RF107R77DRN80M4 | 369 | 0.75KW | 3.90r/min | 1640N.m | 205kg | 37100N | 2.60 |
| RF107R77DRN80M4 | 323 | 0.75KW | 4.40r/min | 1430N.m | 205kg | 37300N | 3.00 |
Rf107r77dv112m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107R77DV112M4 | 187 | 4KW | 7.80r/min | 4550N.m | 235kg | 28000N | 0.95 |
| RF107R77DV112M4 | 193 | 4KW | 7.60r/min | 4750N.m | 235kg | 24700N | 0.90 |
| RF107R77DV112M4 | 172 | 4KW | 8.50r/min | 4250N.m | 235kg | 29700N | 1.00 |
RF107R77DRN80M4Speeding machine type:
Rx107r77drn80m4 single foot installation of tilt gear-reducing motor
Rxf107r77drn80m4 single b5franeMotor geared reducer
R107r77drn80m4 bottom foot installation of tilt gear deviation electric
R107fr77drn80m4 bottom foot, b5franc installation of tilt gear reduction power
Rf107r77drn80m4b5 installation of tilt gear reduction power
Rz107r77drn80m4b14 installation of tilt gear-reducing electric power

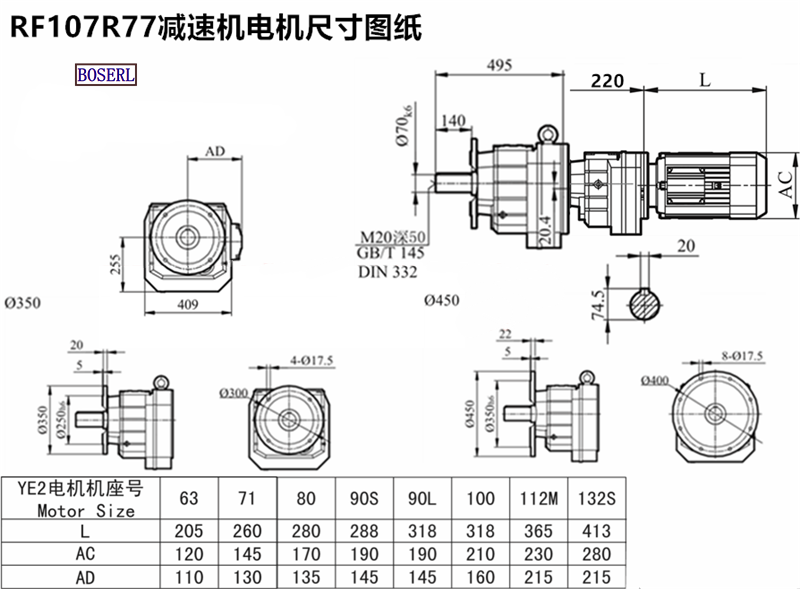

RF107R77DRN80M4Induction Motor 3Ph motors installed size drawings
Rf107r77drn80m4 deviation power plant, three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 90kw power supply rf107r77r80m4rf107r77dv112m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF107R77DRN80M4减速机样本 |
|
| RF107R77DRN80M4减速机三维图纸 |
|
