RF107R77DT71M4Detailed Information
Keywords: how much kw power does it have? rf107r77dt71m4_rf107r77drs112m4
RF107R77DT71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107R77DT71M4 | 2067 | 0.37KW | 0.67r/min | 4660N.m | 199.5kg | 27300N | 0.90 |
| RF107R77DT71M4 | 1693 | 0.37KW | 0.82r/min | 3790N.m | 199.5kg | 31900N | 1.15 |
| RF107R77DT71M4 | 1550 | 0.37KW | 0.89r/min | 3420N.m | 199.5kg | 33500N | 1.25 |
| RF107R77DT71M4 | 1407 | 0.37KW | 0.98r/min | 3100N.m | 199.5kg | 34600N | 1.40 |
| RF107R77DT71M4 | 1209 | 0.37KW | 1.10r/min | 2660N.m | 199.5kg | 35900N | 1.60 |
| RF107R77DT71M4 | 1055 | 0.37KW | 1.30r/min | 2330N.m | 199.5kg | 36400N | 1.85 |
| RF107R77DT71M4 | 1987 | 0.37KW | 0.69r/min | 4450N.m | 199.5kg | 28600N | 0.95 |
| RF107R77DT71M4 | 1827 | 0.37KW | 0.76r/min | 4030N.m | 199.5kg | 30800N | 1.05 |
| RF107R77DT71M4 | 1599 | 0.37KW | 0.86r/min | 3490N.m | 199.5kg | 33200N | 1.25 |
| RF107R77DT71M4 | 1400 | 0.37KW | 0.99r/min | 3090N.m | 199.5kg | 34600N | 1.40 |
| RF107R77DT71M4 | 1226 | 0.37KW | 1.10r/min | 2670N.m | 199.5kg | 35900N | 1.60 |
| RF107R77DT71M4 | 939 | 0.37KW | 1.50r/min | 2070N.m | 199.5kg | 36700N | 2.10 |
| RF107R77DT71M4 | 822 | 0.37KW | 1.70r/min | 1790N.m | 199.5kg | 37000N | 2.40 |
RF107R77DRS112M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107R77DRS112M4 | 187 | 4KW | 7.80r/min | 4550N.m | 235kg | 28000N | 0.95 |
| RF107R77DRS112M4 | 193 | 4KW | 7.60r/min | 4750N.m | 235kg | 24700N | 0.90 |
| RF107R77DRS112M4 | 172 | 4KW | 8.50r/min | 4250N.m | 235kg | 29700N | 1.00 |
RF107R77DT71M4Speeding machine type:
Rx107r77dt71m4 single foot installation of tilt gear-reducing electric power
Rxf107r77dt71m4 unigrade b5 installation slopesMotor geared reducer
R107r77dt71m4 bottom foot installation of tilt gear-reducing power
R107fr77dt71m4 bottom foot, b5 frank installation of tilt gear reduction power
Rf107r77dt71m4b5 installation of tilt gear-reducing power
Rz107r77dt71m4b14 installation of tilt gear-reducing electric power

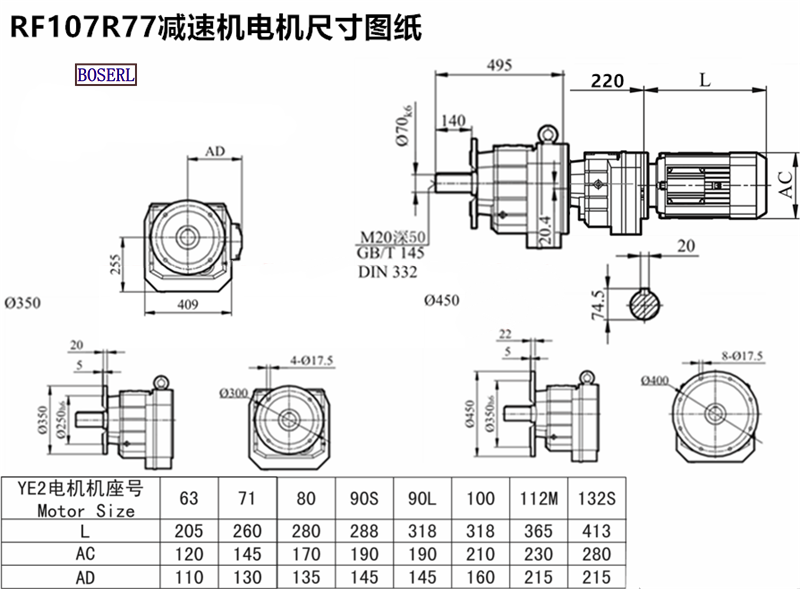

RF107R77DT71M4Induction Motor 3Ph motors installed size drawings
Rf107r77dt71m4 deviation power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: How much of the 11kw power is slashed
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF107R77DT71M4减速机样本 |
|
| RF107R77DT71M4减速机三维图纸 |
|
