RF107RF77-Y0.75KWDetailed Information
Keywords: 0. 55 kw electric power to what level gear-reducing box _rf107rf77-y0. 75 kw_rf107rf77-y71m4
RF107RF77-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107RF77-Y0.75KW | 1055 | 0.75KW | 1.40r/min | 4740N.m | 205kg | 25200N | 0.90 |
| RF107RF77-Y0.75KW | 919 | 0.75KW | 1.60r/min | 4140N.m | 205kg | 30300N | 1.05 |
| RF107RF77-Y0.75KW | 815 | 0.75KW | 1.80r/min | 3690N.m | 205kg | 32400N | 1.15 |
| RF107RF77-Y0.75KW | 939 | 0.75KW | 1.50r/min | 4210N.m | 205kg | 29900N | 1.00 |
| RF107RF77-Y0.75KW | 822 | 0.75KW | 1.80r/min | 3670N.m | 205kg | 32500N | 1.15 |
| RF107RF77-Y0.75KW | 369 | 0.75KW | 3.90r/min | 1640N.m | 205kg | 37100N | 2.60 |
| RF107RF77-Y0.75KW | 323 | 0.75KW | 4.40r/min | 1430N.m | 205kg | 37300N | 3.00 |
RF107RF77-Y71M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF107RF77-Y71M4 | 2067 | 0.37KW | 0.67r/min | 4660N.m | 199.5kg | 27300N | 0.90 |
| RF107RF77-Y71M4 | 1693 | 0.37KW | 0.82r/min | 3790N.m | 199.5kg | 31900N | 1.15 |
| RF107RF77-Y71M4 | 1550 | 0.37KW | 0.89r/min | 3420N.m | 199.5kg | 33500N | 1.25 |
| RF107RF77-Y71M4 | 1407 | 0.37KW | 0.98r/min | 3100N.m | 199.5kg | 34600N | 1.40 |
| RF107RF77-Y71M4 | 1209 | 0.37KW | 1.10r/min | 2660N.m | 199.5kg | 35900N | 1.60 |
| RF107RF77-Y71M4 | 1055 | 0.37KW | 1.30r/min | 2330N.m | 199.5kg | 36400N | 1.85 |
| RF107RF77-Y71M4 | 1987 | 0.37KW | 0.69r/min | 4450N.m | 199.5kg | 28600N | 0.95 |
| RF107RF77-Y71M4 | 1827 | 0.37KW | 0.76r/min | 4030N.m | 199.5kg | 30800N | 1.05 |
| RF107RF77-Y71M4 | 1599 | 0.37KW | 0.86r/min | 3490N.m | 199.5kg | 33200N | 1.25 |
| RF107RF77-Y71M4 | 1400 | 0.37KW | 0.99r/min | 3090N.m | 199.5kg | 34600N | 1.40 |
| RF107RF77-Y71M4 | 1226 | 0.37KW | 1.10r/min | 2670N.m | 199.5kg | 35900N | 1.60 |
| RF107RF77-Y71M4 | 939 | 0.37KW | 1.50r/min | 2070N.m | 199.5kg | 36700N | 2.10 |
| RF107RF77-Y71M4 | 822 | 0.37KW | 1.70r/min | 1790N.m | 199.5kg | 37000N | 2.40 |
RF107RF77-Y0.75KWSpeeding machine type:
Rx107rf77-y0. 75kw single-step bottom foot installation of tilt gear reduction power
Rxf107rf77-y0. 75kw single b5Motor geared reducer
R107rf77-y0. 75 kw bottom foot installation of tilt gear deviation engine
R107frf77-y0. 75kw bottom foot, b5franc
Rf107rf77-y0. 75 kwb5 installation of tilt gear reduction power
Rz107rf77-y0. 75 kwb14 installation of tilt gear reduction power

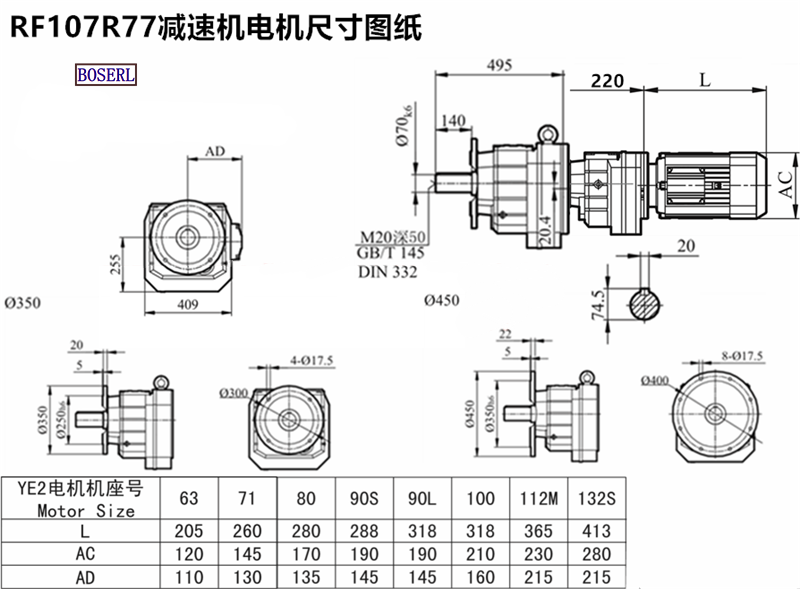

RF107RF77-Y0.75KWInduction Motor 3Ph motors installed size drawings
RF107RF77-Y0.75KWWe need to make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
