RF137DV225M4Detailed Information

RF137DV225M4
prevnext

RF137DV225M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 90kw220vreducing motors_rf137dv225m4_rf137drn225m4reducing devices

RF137DV225M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF137DV225M432.9145kw45rpm9550N.m540kg39800N0.85
RF137DV225M427.8345kw53rpm8070N.m540kg51300N0.95
RF137DV225M424.1245kw61rpm7000N.m540kg52500N1.15
RF137DV225M42245kw67rpm6380N.m540kg52900N1.25
RF137DV225M419.04
45kw77rpm5520N.m540kg53300N1.45
RF137DV225M416.845kw88rpm4870N.m540kg53400N1.65
RF137DV225M414.51
45kw101rpm4210N.m540kg53100N1.9
RF137DV225M412.8345kw115rpm3720N.m540kg52700N2.2
RF137DV225M410.7945kw136rpm3130N.m540kg51900N2.6
RF137DV225M48.7145kw169rpm2520N.m540kg50500N3.1
RF137DV225M47.59
45kw194rpm2200N.m540kg50200N2.3
RF137DV225M46.3845kw230rpm1850N.m540kg48600N2.8
RF137DV225M45.1545kw285rpm1490N.m540kg46600N3.1

Rf137drn225m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF137DRN225M432.9145kw45rpm9550N.m540kg39800N0.85
RF137DRN225M427.8345kw53rpm8070N.m540kg51300N0.95
RF137DRN225M424.1245kw61rpm7000N.m540kg52500N1.15
RF137DRN225M42245kw67rpm6380N.m540kg52900N1.25
RF137DRN225M419.04
45kw77rpm5520N.m540kg53300N1.45
RF137DRN225M416.845kw88rpm4870N.m540kg53400N1.65
RF137DRN225M414.51
45kw101rpm4210N.m540kg53100N1.9
RF137DRN225M412.8345kw115rpm3720N.m540kg52700N2.2
RF137DRN225M410.7945kw136rpm3130N.m540kg51900N2.6
RF137DRN225M48.7145kw169rpm2520N.m540kg50500N3.1
RF137DRN225M47.59
45kw194rpm2200N.m540kg50200N2.3
RF137DRN225M46.3845kw230rpm1850N.m540kg48600N2.8
RF137DRN225M45.1545kw285rpm1490N.m540kg46600N3.1

RF137DV225M4Speeding machine type:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

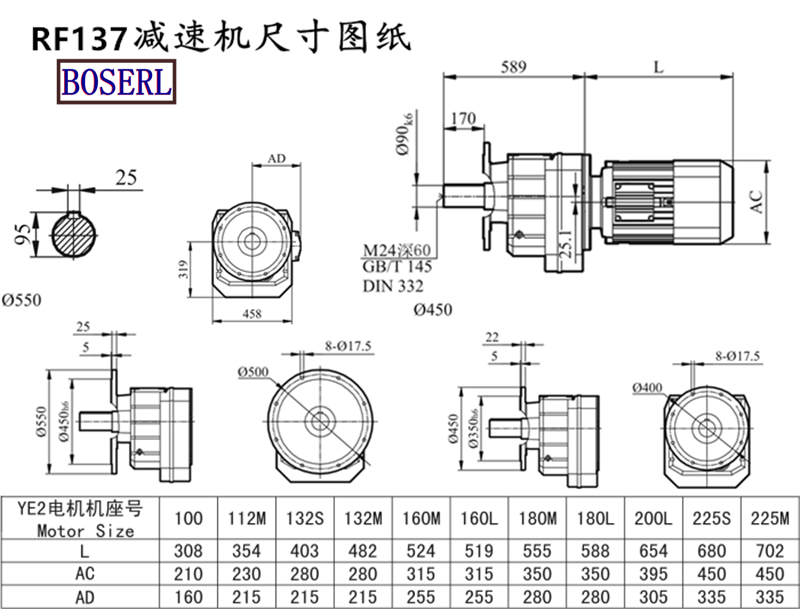

RF137DV225M4Induction Motor 3Ph motors installed size drawings


Horizontal reducer.png

RF137DV225M4At thereducing plant: three days in advance

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
