37kw electric power to the size of a set of slash gear-reducing box _rf137r77dve71ms4_boserl moving rf137r77dre100ls4 production plant

RF137R77DVE71MS4Detailed Information

prevnext

RF137R77DVE71MS4

TEL：Email:[email protected]

详细信息

Keywords: 37kw electric power to what size of a flat slash gearbox_ rf137r77dve71ms4_rf137r77dre100ls4

RF137R77DVE71MS4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF137R77DVE71MS4	5834	0.25KW	0.22r/min	8660N.m	266kg	51100N	0.90
RF137R77DVE71MS4	5116	0.25KW	0.25r/min	7960N.m	266kg	53500N	1.00
RF137R77DVE71MS4	4464	0.25KW	0.29r/min	6740N.m	266kg	55800N	1.20
RF137R77DVE71MS4	3928	0.25KW	0.33r/min	5930N.m	266kg	57100N	1.35
RF137R77DVE71MS4	4709	0.25KW	0.28r/min	7430N.m	266kg	54600N	1.10
RF137R77DVE71MS4	4018	0.25KW	0.32r/min	6340N.m	266kg	56500N	1.25
RF137R77DVE71MS4	3514	0.25KW	0.37r/min	5540N.m	266kg	57700N	1.45
RF137R77DVE71MS4	3338	0.25KW	0.39r/min	5260N.m	266kg	58100N	1.50
RF137R77DVE71MS4	2929	0.25KW	0.44r/min	4620N.m	266kg	58900N	1.75
RF137R77DVE71MS4	2658	0.25KW	0.49r/min	4180N.m	266kg	59300N	1.90
RF137R77DVE71MS4	2412	0.25KW	0.54r/min	3800N.m	266kg	59700N	2.10
RF137R77DVE71MS4	2073	0.25KW	0.63r/min	3260N.m	266kg	60100N	2.40
RF137R77DVE71MS4	1839	0.25KW	0.71r/min	2810N.m	266kg	60500N	2.80
RF137R77DVE71MS4	1397	0.25KW	0.93r/min	2180N.m	266kg	60800N	3.70
RF137R77DVE71MS4	1226	0.25KW	1.10r/min	1880N.m	266kg	61000N	4.20

RF137R77DRE100LS4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF137R77DRE100LS4	699	2.2KW	2.00r/min	9510N.m	288kg	40600N	0.85
RF137R77DRE100LS4	609	2.2KW	2.30r/min	8260N.m	288kg	52800N	0.95
RF137R77DRE100LS4	730	2.2KW	2.00r/min	9920N.m	288kg	31700N	0.80
RF137R77DRE100LS4	629	2.2KW	2.30r/min	8510N.m	288kg	51800N	0.95
RF137R77DRE100LS4	490	2.2KW	2.90r/min	6640N.m	288kg	56000N	1.20
RF137R77DRE100LS4	428	2.2KW	3.30r/min	5790N.m	288kg	57300N	1.40
RF137R77DRE100LS4	560	2.2KW	2.50r/min	7640N.m	288kg	54100N	1.05
RF137R77DRE100LS4	381	2.2KW	3.70r/min	5200N.m	288kg	58100N	1.55
RF137R77DRE100LS4	323	2.2KW	4.40r/min	4410N.m	288kg	59100N	1.80
RF137R77DRE100LS4	291	2.2KW	4.90r/min	3970N.m	288kg	59500N	2.00
RF137R77DRE100LS4	255	2.2KW	5.60r/min	3470N.m	288kg	60000N	2.30
RF137R77DRE100LS4	223	2.2KW	6.40r/min	3040N.m	288kg	60300N	2.60

RF137R77DVE71MS4Speeding machine type:

Rx137r77dve71ms4 single-step foot installation of tilt gear-reducing power

Rxf137r77dve71ms4 single b5Motor geared reducer

R137r77dve71ms4 bottom foot installation of tilt gear-reducing electric power

R137fr77dve71ms4 bottom foot, b5frand installation of tilt gear reduction power

Rf137r77dve71ms4b5 franc installation of tilt gear reduction power

Rz137r77dve71ms4b14 installation of tilt gear-reducing electric power

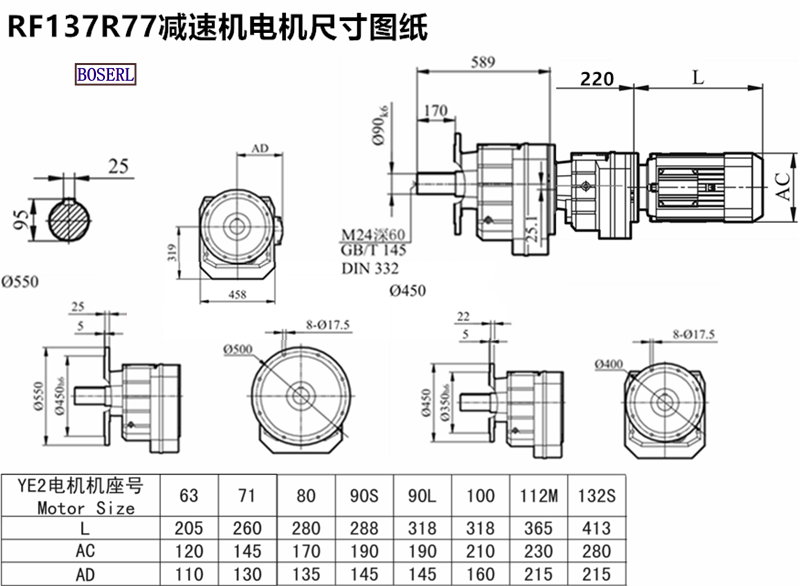

RF137R77DVE71MS4Induction Motor 3Ph motors installed size drawings

wireless image_20230524161727.png

Rf137r77dve71ms4 deviation generator manufacturer, three days' appointmentStraight output reduction machine

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements

标签: What's the size of the 37kw power? rf137r77dve71ms4 rf137r77dr100ls4

tags： What's the size of the 37kw power? rf137r77dve71ms4 rf137r77dr100ls4

上一条RF137R77DVE80MK4
下一条RF137R77DVE80N4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
RF137R77DVE71MS4减速机样本
RF137R77DVE71MS4减速机三维图纸
