RF147DM280M4Detailed Information
Keywords: 55 kw220v electric brakes_rf147dm280m4_rf147drs280m4
RF147DM280M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147DM280M4 | 15.64 | 90kw | 95rpm | 9080N.m | 930kg | 69000N | 1.45 |
| RF147DM280M4 | 13.91 | 90kw | 106rpm | 8070N.m | 930kg | 70200N | 1.55 |
| RF147DM280M4 | 11.99 | 90kw | 123rpm | 6960N.m | 930kg | 71400N | 1.85 |
| RF147DM280M4 | 9.74 | 90kw | 152rpm | 5650N.m | 930kg | 72500N | 2.3 |
| RF147DM280M4 | 8.26 | 90kw | 179rpm | 4790N.m | 930kg | 73000N | 2.7 |
| RF147DM280M4 | 7.25 | 90kw | 204rpm | 4210N.m | 930kg | 70900N | 2.1 |
| RF147DM280M4 | 5.89 | 90kw | 251rpm | 3420N.m | 930kg | 68300N | 2.5 |
| RF147DM280M4 | 5 | 90kw | 296rpm | 2900N.m | 930kg | 66100N | 3 |
RF147DRS280M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147DRS280M4 | 15.64 | 90kw | 95rpm | 9080N.m | 930kg | 69000N | 1.45 |
| RF147DRS280M4 | 13.91 | 90kw | 106rpm | 8070N.m | 930kg | 70200N | 1.55 |
| RF147DRS280M4 | 11.99 | 90kw | 123rpm | 6960N.m | 930kg | 71400N | 1.85 |
| RF147DRS280M4 | 9.74 | 90kw | 152rpm | 5650N.m | 930kg | 72500N | 2.3 |
| RF147DRS280M4 | 8.26 | 90kw | 179rpm | 4790N.m | 930kg | 73000N | 2.7 |
| RF147DRS280M4 | 7.25 | 90kw | 204rpm | 4210N.m | 930kg | 70900N | 2.1 |
| RF147DRS280M4 | 5.89 | 90kw | 251rpm | 3420N.m | 930kg | 68300N | 2.5 |
| RF147DRS280M4 | 5 | 90kw | 296rpm | 2900N.m | 930kg | 66100N | 3 |
Rf147dm280m4 reduction machine type:
Rx147dm280m4 single-step foot installation of tilt gear-reducing electric power
Rxf147dm280m4 single b5 latency installationMotor geared reducer
R147dm280m4 bottom foot installation of tilt gear-retarding power plant
R147fdm280m4 bottom foot, b5frand installation of tilt gear reduction power
Rf147dm280m4b5 installation of tilt gear-reducing power
Rz147dm280m4b14 installation of tilt gear-reducing electric power
Rx147drs280m4 single foot installation of tilt gear-reducing electric power
Rxf147drs280m4 single-class b5Motor geared reducer
R147drrs 280m4 rotation gear-reducing power sets
R147fdrrs 280m4 bottom foot, b5frand installation of tilt gear deviation electric
Rf147drs280m4b5 installation of tilt gear-reducing electric power
Rz147drs 280m4b14 installation of tilt gear-reducing electric power

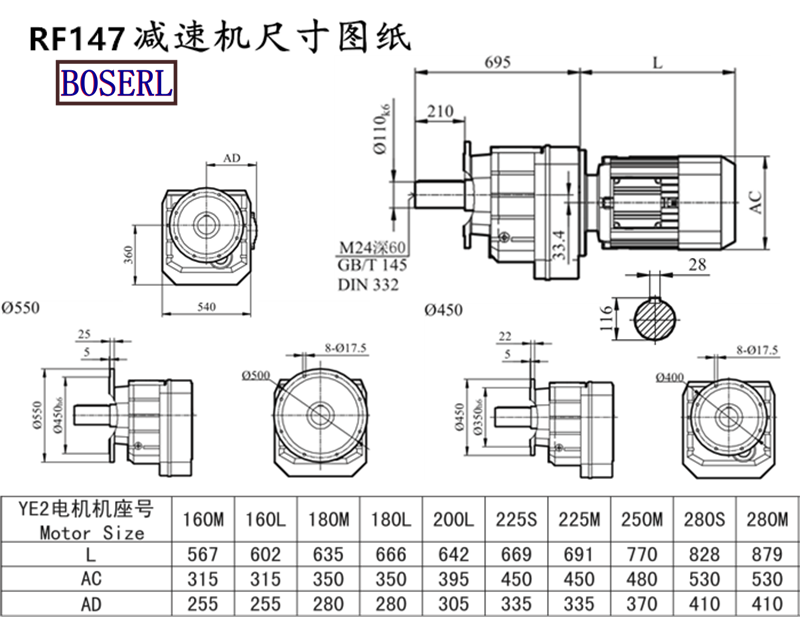

RF147DM280M4Induction Motor 3Ph motors installed size drawings
RF147DM280M4Induction Motor 3Ph machine manufacturer: three days in advanceVertical reducer
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
