RF147DR132MC4Detailed Information
Keywords: 75kw220vretarder electric unit_rf147dr132mc4_rf147dr132ml4
RF147DR132MC4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147DR132MC4 | 163.31 | 9.2kw | 8.9rpm | 9830N.m | 440kg | 68000N | 1.3 |
| RF147DR132MC4 | 146.91 | 9.2kw | 9.9rpm | 8840N.m | 440kg | 69300N | 1.45 |
| RF147DR132MC4 | 119.86 | 9.2kw | 12rpm | 7210N.m | 440kg | 71100N | 1.8 |
| RF147DR132MC4 | 109.31 | 9.2kw | 13rpm | 6580N.m | 440kg | 71700N | 2 |
| RF147DR132MC4 | 94.6 | 9.2kw | 15rpm | 5690N.m | 440kg | 72500N | 2.3 |
| RF147DR132MC4 | 83.47 | 9.2kw | 17rpm | 5020N.m | 440kg | 72900N | 2.6 |
| RF147DR132MC4 | 72.09 | 9.2kw | 20rpm | 4340N.m | 440kg | 73400N | 3 |
| RF147DR132MC4 | 66.99 | 9.2kw | 22rpm | 4030N.m | 440kg | 73500N | 3.2 |
Rf147dr132ml4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147DR132ML4 | 163.31 | 9.2kw | 8.9rpm | 9830N.m | 440kg | 68000N | 1.3 |
| RF147DR132ML4 | 146.91 | 9.2kw | 9.9rpm | 8840N.m | 440kg | 69300N | 1.45 |
| RF147DR132ML4 | 119.86 | 9.2kw | 12rpm | 7210N.m | 440kg | 71100N | 1.8 |
| RF147DR132ML4 | 109.31 | 9.2kw | 13rpm | 6580N.m | 440kg | 71700N | 2 |
| RF147DR132ML4 | 94.6 | 9.2kw | 15rpm | 5690N.m | 440kg | 72500N | 2.3 |
| RF147DR132ML4 | 83.47 | 9.2kw | 17rpm | 5020N.m | 440kg | 72900N | 2.6 |
| RF147DR132ML4 | 72.09 | 9.2kw | 20rpm | 4340N.m | 440kg | 73400N | 3 |
| RF147DR132ML4 | 66.99 | 9.2kw | 22rpm | 4030N.m | 440kg | 73500N | 3.2 |
Rf147dr132mc4 deceleration machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

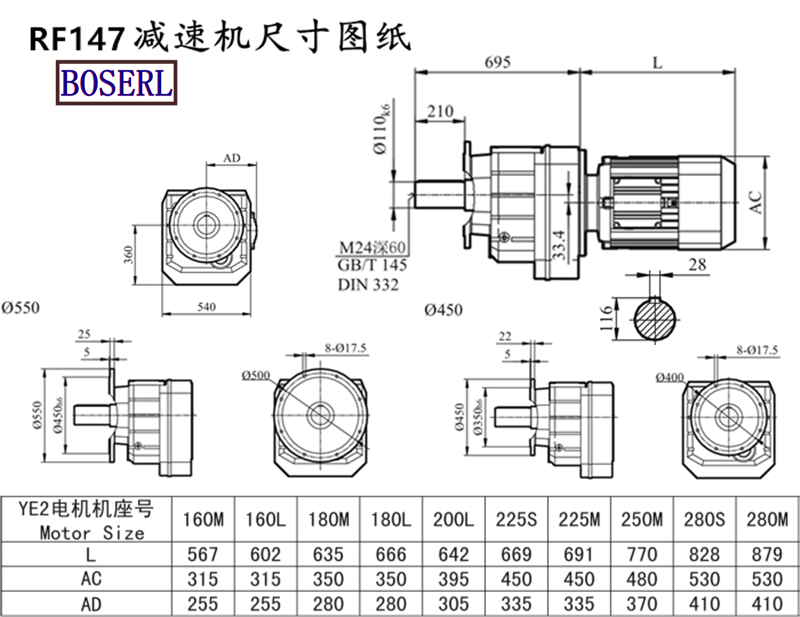

RF147DR132MC4Induction Motor 3Ph motors installed size drawings
RF147DR132MC4At thereducing plant: three days in advance
Vertical reducerPresentation of application cases:
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
