RF147R77DRN112M4Detailed Information
Keyword: 160 kw electric power with a vertical slasher _ rf147r77drn112m4_rf147r77dm80m4
RF147R77DRN112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147R77DRN112M4 | 619 | 4KW | 2.40r/min | 15100N.m | 482kg | 48900N | 0.85 |
| RF147R77DRN112M4 | 558 | 4KW | 2.60r/min | 13600N.m | 482kg | 61400N | 0.95 |
| RF147R77DRN112M4 | 489 | 4KW | 3.00r/min | 11900N.m | 482kg | 64700N | 1.10 |
| RF147R77DRN112M4 | 415 | 4KW | 3.50r/min | 10100N.m | 482kg | 67600N | 1.30 |
RF147R77DM80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF147R77DM80M4 | 3302 | 0.75KW | 0.43r/min | 14600N.m | 452kg | 54100N | 0.90 |
| RF147R77DM80M4 | 2898 | 0.75KW | 0.50r/min | 12800N.m | 452kg | 62900N | 1.00 |
| RF147R77DM80M4 | 2555 | 0.75KW | 0.56r/min | 11600N.m | 452kg | 65300N | 1.10 |
| RF147R77DM80M4 | 2211 | 0.75KW | 0.65r/min | 10000N.m | 452kg | 67700N | 1.30 |
| RF147R77DM80M4 | 1951 | 0.75KW | 0.74r/min | 8860N.m | 452kg | 69300N | 1.45 |
| RF147R77DM80M4 | 1705 | 0.75KW | 0.84r/min | 7610N.m | 452kg | 70700N | 1.70 |
| RF147R77DM80M4 | 1536 | 0.75KW | 0.93r/min | 6830N.m | 452kg | 71500N | 1.90 |
| RF147R77DM80M4 | 1329 | 0.75KW | 1.10r/min | 5910N.m | 452kg | 72300N | 2.20 |
| RF147R77DM80M4 | 1166 | 0.75KW | 1.20r/min | 5150N.m | 452kg | 72800N | 2.50 |
RF147R77DRN112M4Speeding machine type:
Rx147r77drn112m4 single-step foot installation of tilt gear-reducing motors
Rxf147r77drn112m4 single b5 installation slopeMotor geared reducer
R147r77drn112m4 tilt gear-reducing power plant
R147fr77drn112m4 bottom foot, b5franc installation of tilt gear reduction power
Rf147r77drn112m4b5 installation of tilt gear-reducing power
Rz147r77drn112m4b14 plain installation of tilt gear reduction power

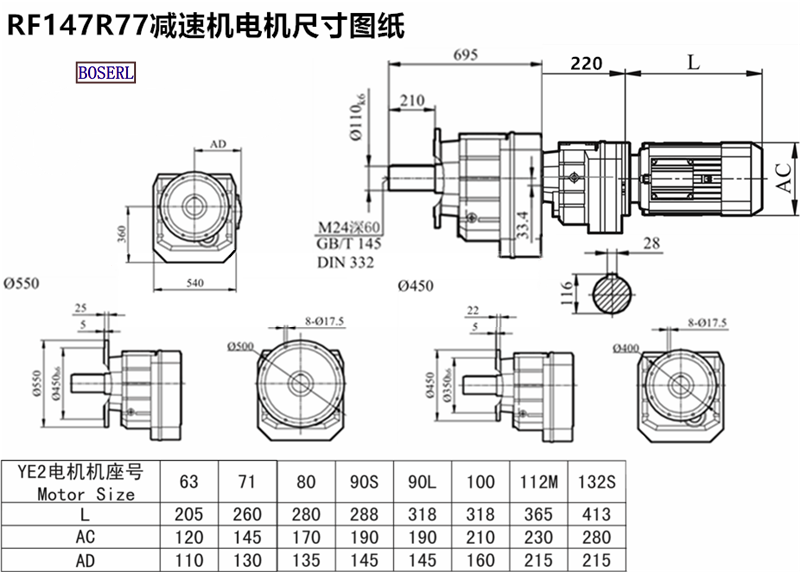

RF147R77DRN112M4Induction Motor 3Ph motors installed size drawings
Rf147r77drn112m4 deviation electric power plant, three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: How big a 160kw power can be with a pole-size slasher. rf147r77drn112m4 rf147r77dm80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF147R77DRN112M4减速机样本 |
|
| RF147R77DRN112M4减速机三维图纸 |
|
