RF167R107DT160M4Detailed Information
Keywords: 15kw standing gear brakes_rf167r107dt160m4_rf167r107drrn160m4
RF167R107DT160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R107DT160M4 | 295 | 11KW | 5.00r/min | 19100N.m | 968kg | 120000N | 0.95 |
| RF167R107DT160M4 | 270 | 11KW | 5.50r/min | 17700N.m | 968kg | 120000N | 1.00 |
| RF167R107DT160M4 | 229 | 11KW | 6.40r/min | 15000N.m | 968kg | 120000N | 1.20 |
| RF167R107DT160M4 | 200 | 11KW | 7.40r/min | 13000N.m | 968kg | 120000N | 1.40 |
| RF167R107DT160M4 | 169 | 11KW | 8.70r/min | 10900N.m | 968kg | 120000N | 1.65 |
| RF167R107DT160M4 | 291 | 11KW | 5.10r/min | 19400N.m | 968kg | 120000N | 0.90 |
RF167R107DRN160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R107DRN160M4 | 295 | 11KW | 5.00r/min | 19100N.m | 968kg | 120000N | 0.95 |
| RF167R107DRN160M4 | 270 | 11KW | 5.50r/min | 17700N.m | 968kg | 120000N | 1.00 |
| RF167R107DRN160M4 | 229 | 11KW | 6.40r/min | 15000N.m | 968kg | 120000N | 1.20 |
| RF167R107DRN160M4 | 200 | 11KW | 7.40r/min | 13000N.m | 968kg | 120000N | 1.40 |
| RF167R107DRN160M4 | 169 | 11KW | 8.70r/min | 10900N.m | 968kg | 120000N | 1.65 |
| RF167R107DRN160M4 | 291 | 11KW | 5.10r/min | 19400N.m | 968kg | 120000N | 0.90 |
RF167R107DT160M4Speeding machine type:
Rx167r107dt160m4 single-step foot installation of tilt gear-reducing power
Rxf167r107dt160m4 single-class b5 flank installationMotor geared reducer
R167r107dt160m4 bottom foot tilt gear deviation engine
R167fr107dt160m4 bottom foot, b5 franc installation of tilt gear reduction power
Rf167r107dt160m4b5 installation of tilt gear-reducing power
Rz167r107dt160m4b14 installation of tilt gear-reducing electric power

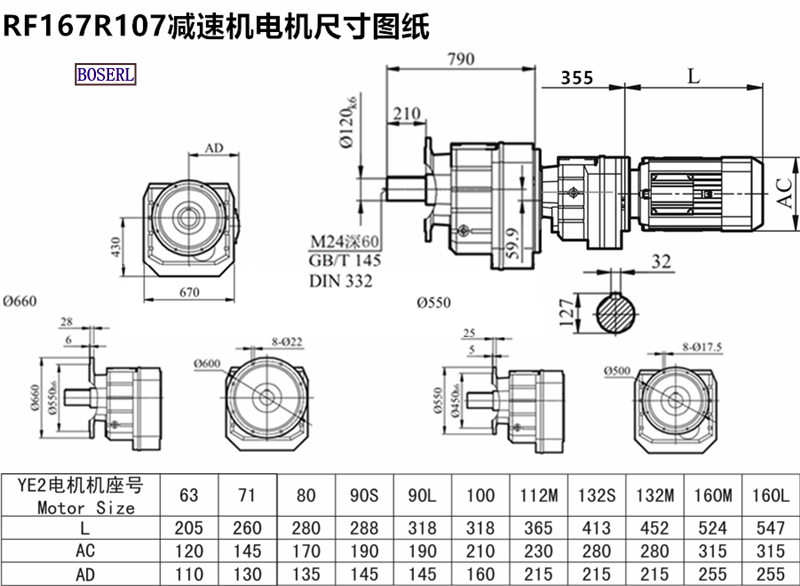

RF167R107DT160M4Induction Motor 3Ph motors installed size drawings
Rf167r107dt160m4 deviation electric power plant, three days' appointmentStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: Rf167r107dt160m4rf167r107rn160m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF167R107DT160M4减速机样本 |
|
| RF167R107DT160M4减速机三维图纸 |
|
