RF167R97DM132S4Detailed Information
Keywords: 200kw verticalreducing machine_rf167r97dm132s4_rf167r97dt160l4
RF167R97DM132S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DM132S4 | 656 | 5.50KW | 2.20r/min | 21800N.m | 861kg | 120000N | 0.85 |
| RF167R97DM132S4 | 579 | 5.50KW | 2.50r/min | 19000N.m | 861kg | 120000N | 0.95 |
| RF167R97DM132S4 | 503 | 5.50KW | 2.90r/min | 16700N.m | 861kg | 120000N | 1.10 |
| RF167R97DM132S4 | 432 | 5.50KW | 3.40r/min | 14200N.m | 861kg | 120000N | 1.25 |
| RF167R97DM132S4 | 376 | 5.50KW | 3.90r/min | 12500N.m | 861kg | 120000N | 1.45 |
| RF167R97DM132S4 | 335 | 5.50KW | 4.30r/min | 11100N.m | 861kg | 120000N | 1.60 |
| RF167R97DM132S4 | 303 | 5.50KW | 4.80r/min | 9970N.m | 861kg | 120000N | 1.80 |
| RF167R97DM132S4 | 279 | 5.50KW | 5.20r/min | 9190N.m | 861kg | 120000N | 1.95 |
RF167R97DT160L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DT160L4 | 335 | 11KW | 4.40r/min | 22200N.m | 916kg | 120000N | 0.80 |
| RF167R97DT160L4 | 303 | 11KW | 4.90r/min | 19900N.m | 916kg | 120000N | 0.90 |
| RF167R97DT160L4 | 279 | 11KW | 5.30r/min | 18400N.m | 916kg | 120000N | 1.00 |
RF167R97DM132S4Speeding machine type:
Rx167r97dm132s4 sole foot installation of tilt gear-reducing motors
Rxf167r97dm132s4 single-class b5 franMotor geared reducer
R167r97dm132s4 bottom foot installation of tilt gear-reducing electric power
R167fr97dm132s4 bottom foot, b5franc
Rf167r97dm132s4b5 installation of tilt gear reduction power
Rz167r97dm132s4b14 installation of tilt gear-reducing electric power

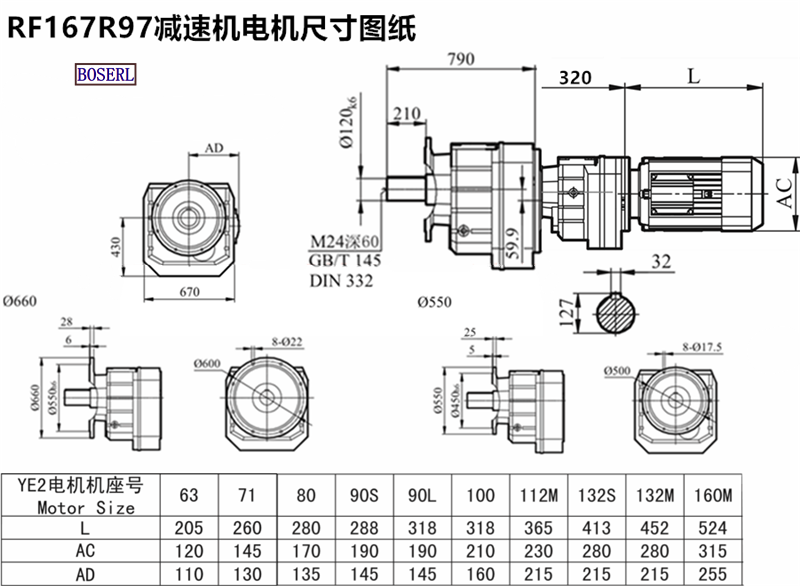

RF167R97DM132S4Induction Motor 3Ph motors installed size drawings
Rf167r97dm132s4 deviation power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: Rf167r97dm132s4 rf167r97dt160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF167R97DM132S4减速机样本 |
|
| RF167R97DM132S4减速机三维图纸 |
|
