RF167R97DV80S4Detailed Information
Keywords: 4kw reduction machine_rf167r97dv80s4_rf167r97drn132ml4
RF167R97DV80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DV80S4 | 6077 | 0.55KW | 0.23r/min | 19500N.m | 816kg | 120000N | 0.90 |
| RF167R97DV80S4 | 5407 | 0.55KW | 0.26r/min | 17300N.m | 816kg | 120000N | 1.05 |
| RF167R97DV80S4 | 4650 | 0.55KW | 0.30r/min | 14700N.m | 816kg | 120000N | 1.20 |
| RF167R97DV80S4 | 4129 | 0.55KW | 0.33r/min | 12800N.m | 816kg | 120000N | 1.40 |
RF167R97DRN132ML4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DRN132ML4 | 503 | 7.50KW | 2.90r/min | 22700N.m | 874kg | 120000N | 0.80 |
| RF167R97DRN132ML4 | 432 | 7.50KW | 3.40r/min | 19300N.m | 874kg | 120000N | 0.95 |
| RF167R97DRN132ML4 | 376 | 7.50KW | 3.90r/min | 16900N.m | 874kg | 120000N | 1.05 |
| RF167R97DRN132ML4 | 335 | 7.50KW | 4.40r/min | 15100N.m | 874kg | 120000N | 1.20 |
| RF167R97DRN132ML4 | 303 | 7.50KW | 4.90r/min | 13500N.m | 874kg | 120000N | 1.35 |
| RF167R97DRN132ML4 | 279 | 7.50KW | 5.30r/min | 12500N.m | 874kg | 120000N | 1.45 |
RF167R97DV80S4Speeding machine type:
Rx167r97dv80s4 single foot installation of tilt gear reduction power
Rxf167r97dv80s4 single-class b5 franMotor geared reducer
R167r97dv80s4 bottom foot installation of tilt gear reduction power
R167fr97dv80s4 bottom foot, b5franc
Rf167r97dv80s4b5 installation of tilt gear reduction power
Rz167r97dv80s4b14 installation of tilt gear-reducing electric power

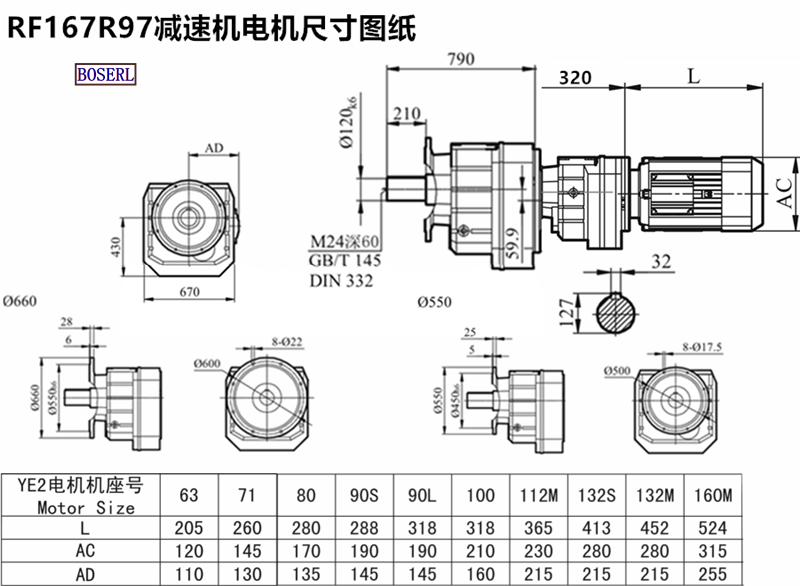

RF167R97DV80S4Induction Motor 3Ph motors installed size drawings
Rf167r97dv80s4 deviation power plant. please make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: Rf167r97dv80s4 rf167r97rn132ml4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF167R97DV80S4减速机样本 |
|
| RF167R97DV80S4减速机三维图纸 |
|
