RF167R97DVE112M4Detailed Information
Keywords: 160kw belt slower_rf167r97dve112m4_rf167r97dr80m4
RF167R97DVE112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DVE112M4 | 760 | 4KW | 1.90r/min | 18400N.m | 847kg | 120000N | 1.00 |
| RF167R97DVE112M4 | 861 | 4KW | 1.70r/min | 20800N.m | 847kg | 120000N | 0.85 |
| RF167R97DVE112M4 | 656 | 4KW | 2.20r/min | 15600N.m | 847kg | 120000N | 1.15 |
| RF167R97DVE112M4 | 503 | 4KW | 2.90r/min | 12000N.m | 847kg | 120000N | 1.50 |
| RF167R97DVE112M4 | 376 | 4KW | 3.90r/min | 8990N.m | 847kg | 120000N | 2.00 |
| RF167R97DVE112M4 | 335 | 4KW | 4.40r/min | 8000N.m | 847kg | 120000N | 2.20 |
RF167R97DR80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167R97DR80M4 | 4650 | 0.75KW | 0.31r/min | 19800N.m | 817kg | 120000N | 0.90 |
| RF167R97DR80M4 | 4129 | 0.75KW | 0.35r/min | 17300N.m | 817kg | 120000N | 1.05 |
| RF167R97DR80M4 | 2657 | 0.75KW | 0.54r/min | 11600N.m | 817kg | 120000N | 1.55 |
| RF167R97DR80M4 | 1438 | 0.75KW | 1.00r/min | 6280N.m | 817kg | 120000N | 2.90 |
| RF167R97DR80M4 | 2333 | 0.75KW | 0.62r/min | 10000N.m | 817kg | 120000N | 1.80 |
| RF167R97DR80M4 | 2085 | 0.75KW | 0.69r/min | 8880N.m | 817kg | 120000N | 2.00 |
RF167R97DVE112M4Speeding machine type:
Rx167r97dve112m4 single-step foot installation of tilt gear reduction power
Rxf167r97dve112m4 single-class b5 latency installationMotor geared reducer
R167r97dve112m4 bottom foot installation of tilt gear-reducing electric power
R167fr97dve112m4 bottom foot, b5frand installation of tilt gear reduction power
Rf167r97dve112m4b5 installation of tilt gear reduction power
Rz167r97dve112m4b14 installation of tilt gear-reducing electric power

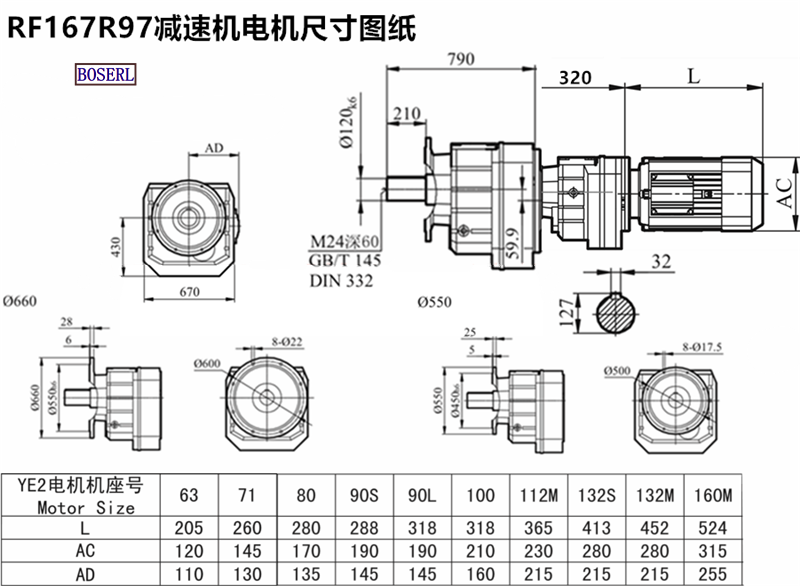

RF167R97DVE112M4Induction Motor 3Ph motors installed size drawings
Rf167r97dve112m4 deviation electric power plant. please make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
