RF167RF107-Y11KWDetailed Information
Keywords: 5. 5 kw standing gear brakes_rf167rf107-y11kw_rf167rf107-y15kw_rf167rf107-y160m4
RF167RF107-Y11KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167RF107-Y11KW | 295 | 11KW | 5.00r/min | 19100N.m | 968kg | 120000N | 0.95 |
| RF167RF107-Y11KW | 270 | 11KW | 5.50r/min | 17700N.m | 968kg | 120000N | 1.00 |
| RF167RF107-Y11KW | 229 | 11KW | 6.40r/min | 15000N.m | 968kg | 120000N | 1.20 |
| RF167RF107-Y11KW | 200 | 11KW | 7.40r/min | 13000N.m | 968kg | 120000N | 1.40 |
| RF167RF107-Y11KW | 169 | 11KW | 8.70r/min | 10900N.m | 968kg | 120000N | 1.65 |
| RF167RF107-Y11KW | 291 | 11KW | 5.10r/min | 19400N.m | 968kg | 120000N | 0.90 |
RF167RF107-Y15KWSpeed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167RF107-Y15KW | 229 | 15KW | 6.40r/min | 20700N.m | 988kg | 120000N | 0.85 |
| RF167RF107-Y15KW | 200 | 15KW | 7.30r/min | 18000N.m | 988kg | 120000N | 1.00 |
| RF167RF107-Y15KW | 169 | 15KW | 8.60r/min | 15200N.m | 988kg | 120000N | 1.20 |
| RF167RF107-Y15KW | 227 | 15KW | 6.50r/min | 20800N.m | 988kg | 120000N | 0.85 |
| RF167RF107-Y15KW | 198 | 15KW | 7.40r/min | 18100N.m | 988kg | 120000N | 1.00 |
RF167RF107-Y160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167RF107-Y160M4 | 229 | 15KW | 6.40r/min | 20700N.m | 988kg | 120000N | 0.85 |
| RF167RF107-Y160M4 | 200 | 15KW | 7.30r/min | 18000N.m | 988kg | 120000N | 1.00 |
| RF167RF107-Y160M4 | 169 | 15KW | 8.60r/min | 15200N.m | 988kg | 120000N | 1.20 |
| RF167RF107-Y160M4 | 227 | 15KW | 6.50r/min | 20800N.m | 988kg | 120000N | 0.85 |
| RF167RF107-Y160M4 | 198 | 15KW | 7.40r/min | 18100N.m | 988kg | 120000N | 1.00 |
RF167RF107-Y11KWSpeeding machine type:
Rx167rf107-y11kw single foot installation of tilt gear-reducing power
Rxf167rf107-y11kw single b5Motor geared reducer
R167rf107-y11kw base foot installation of tilt gear-reducing power
R167f107-y11kw bottom foot, b5franc
Rf167rf107-y11kwb5 installation of tilt gear-reducing power
Rz167rf107-y11kwb14 installation of tilt gear-reducing motors

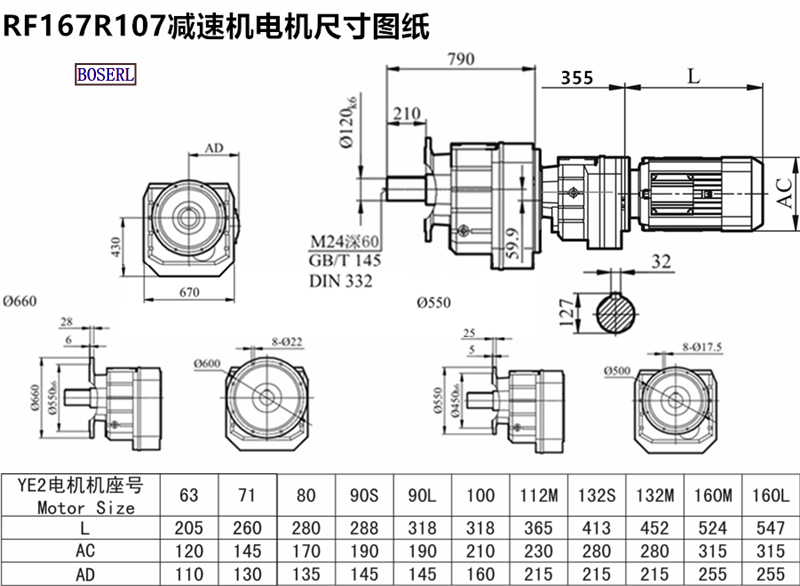

RF167RF107-Y11KWInduction Motor 3Ph motors installed size drawings
RF167RF107-Y11KWWe need to make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 5. 5 kw standing gear reduction machine rf167rf107-y11kw rf167rf107-y15kw rf167rf107-y160m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF167RF107Y11KW减速机样本 |
|
| RF167RF107Y11KW减速机三维图纸 |
|
