RF167RF97-Y0.55KWDetailed Information
Keywords: 7. 5 kw reduction machine_rf167rf97-y0. 55 kw_rf167rf97-y160m4
RF167RF97-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167RF97-Y0.55KW | 6077 | 0.55KW | 0.23r/min | 19500N.m | 816kg | 120000N | 0.90 |
| RF167RF97-Y0.55KW | 5407 | 0.55KW | 0.26r/min | 17300N.m | 816kg | 120000N | 1.05 |
| RF167RF97-Y0.55KW | 4650 | 0.55KW | 0.30r/min | 14700N.m | 816kg | 120000N | 1.20 |
| RF167RF97-Y0.55KW | 4129 | 0.55KW | 0.33r/min | 12800N.m | 816kg | 120000N | 1.40 |
RF167RF97-Y160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF167RF97-Y160M4 | 335 | 11KW | 4.40r/min | 22200N.m | 916kg | 120000N | 0.80 |
| RF167RF97-Y160M4 | 303 | 11KW | 4.90r/min | 19900N.m | 916kg | 120000N | 0.90 |
| RF167RF97-Y160M4 | 279 | 11KW | 5.30r/min | 18400N.m | 916kg | 120000N | 1.00 |
RF167RF97-Y0.55KWSpeeding machine type:
Rx167rf97-y0. 55kw single-step bottom foot installation of tilt gear-reducing power
Rxf167rf97-y0. 55kw single b5 installation slopeMotor geared reducer
R167rf97-y0. 55kw bottom foot installation of tilt gear-reducing electric power
R167frf97-y0. 55kw bottom foot, b5franc
Rf167rf97-y0. 55 kwb5 installation of tilt gear reduction power
Rz167rf97-y0. 55 kwb14 installation of tilt gear reduction power

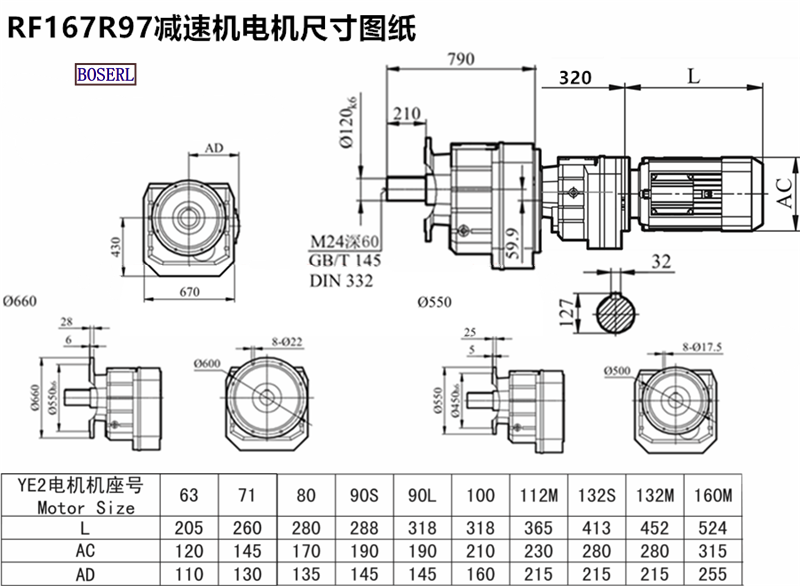

RF167RF97-Y0.55KWInduction Motor 3Ph motors installed size drawings
RF167RF97-Y0.55KWWe need to make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
