Rf17 power motor speed-reducing machineDetailed Information

Rf17 power motor speed-reducing machine
prevnext

Rf17 power motor speed-reducing machine

TEL：Email:[email protected]
  1. 详细信息

Keyword: rf17 motor reduction machine_rf17y63m4_rf17y71m4_rf17 power drive_rf17y80m4_rf17 power motor manufacturer

RF17Y63M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17Y63M481.640.12KW17.0rpm68N.m9.5kg2500N1.25
RF17Y63M470.390.12KW20.0rpm58N.m9.5kg2500N1.45
RF17Y63M465.610.12KW21.0rpm54N.m9.5kg2500N1.55
RF17Y63M457.350.12KW24.0rpm48N.m9.5kg2500N1.80
RF17Y63M453.760.12KW26.0rpm45N.m9.5kg2500N1.90
RF17Y63M447.440.12KW29.0rpm39N.m9.5kg2500N2.20
RF17Y63M444.180.12KW31.0rpm37N.m9.5kg2500N2.30
RF17Y63M438.610.12KW36.0rpm32N.m9.5kg2430N2.60
RF17Y63M436.200.12KW38.0rpm30N.m9.5kg2390N2.80
RF17Y63M431.940.12KW43.0rpm26N.m9.5kg2310N3.20
RF17Y63M428.320.12KW49.0rpm24N.m9.5kg2230N3.60
RF17Y63M424.070.12KW57.0rpm20N.m9.5kg2130N4.20

Rf17y71m4 slower reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17Y71M438.610.37KW36.0rpm99N.m14.5kg770N0.85
RF17Y71M436.200.37KW38.0rpm93N.m14.5kg1260N0.90
RF17Y71M431.940.37KW43.0rpm82N.m14.5kg1910N1.05
RF17Y71M428.320.37KW49.0rpm72N.m14.5kg1880N1.15
RF17Y71M424.070.37KW57.0rpm62N.m14.5kg1830N1.40
RF17Y71M425.230.37KW55.0rpm65N.m14.5kg1840N1.30
RF17Y71M423.150.37KW60.0rpm59N.m14.5kg1820N1.45
RF17Y71M419.710.37KW70.0rpm50N.m14.5kg1760N1.70
RF17Y71M416.990.37KW81.0rpm44N.m14.5kg1710N1.95
RF17Y71M415.840.37KW87.0rpm40N.m14.5kg1680N2.10
RF17Y71M413.840.37KW100rpm35N.m14.5kg1630N2.40
RF17Y71M412.980.37KW106rpm33N.m14.5kg1610N2.60
RF17Y71M411.450.37KW121rpm29N.m14.5kg1560N2.80
RF17Y71M410.150.37KW136rpm26N.m14.5kg1520N3.00
RF17Y71M48.630.37KW160rpm22N.m14.5kg1460N3.30
RF17Y71M47.550.37KW183rpm19N.m14.5kg1370N2.90
RF17Y71M47.040.37KW196rpm18N.m14.5kg1350N3.10
RF17Y71M46.150.37KW224rpm16N.m14.5kg1300N3.40
RF17Y71M45.760.37KW239rpm15N.m14.5kg1280N3.60
RF17Y71M45.090.37KW271rpm13N.m14.5kg1240N3.90
RF17Y71M44.510.37KW306rpm12N.m14.5kg1200N4.20
RF17Y71M43.830.37KW360rpm9.8N.m14.5kg1140N4.60

Rf17y80m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17Y80M419.710.75KW73.0rpm98N.m20kg820N0.85
RF17Y80M416.990.75KW84.0rpm85N.m20kg1390N1.00
RF17Y80M415.840.75KW91.0rpm79N.m20kg1380N1.10
RF17Y80M413.840.75KW104rpm69N.m20kg1370N1.25
RF17Y80M412.980.75KW111rpm65N.m20kg1360N1.30
RF17Y80M411.450.75KW125rpm57N.m20kg1340N1.40
RF17Y80M410.150.75KW141rpm51N.m20kg1320N1.50
RF17Y80M48.630.75KW166rpm43N.m20kg1280N1.65
RF17Y80M47.550.75KW190rpm38N.m20kg1190N1.50
RF17Y80M47.040.75KW204rpm35N.m20kg1180N1.55
RF17Y80M46.150.75KW233rpm31N.m20kg1150N1.75
RF17Y80M45.760.75KW249rpm29N.m20kg1140N1.85
RF17Y80M45.090.75KW282rpm25N.m20kg1110N2.00
RF17Y80M44.510.75KW318rpm22N.m20kg1080N2.10
RF17Y80M43.830.75KW374rpm19N.m20kg1040N2.40

Rf17 power motorreducing machineType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

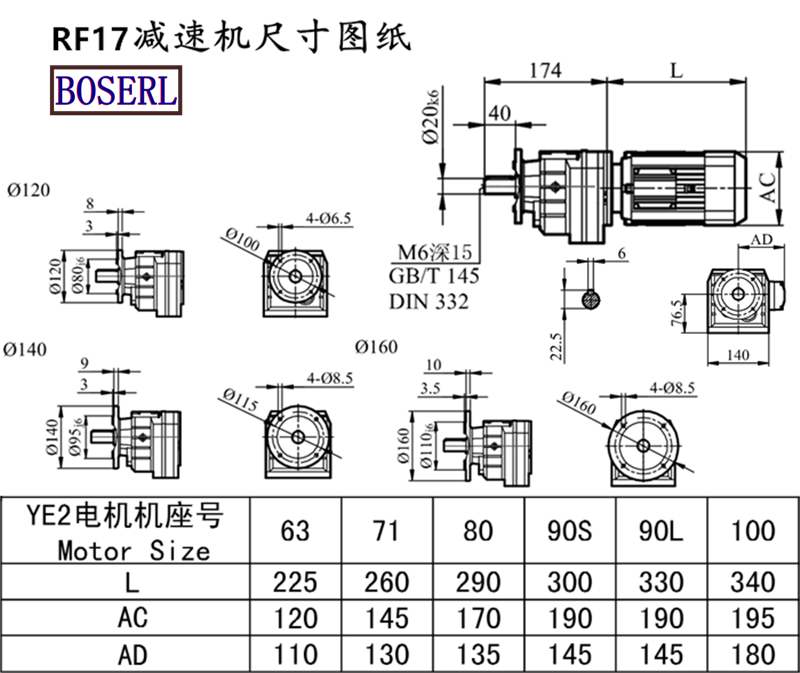

Rf17 power motorreducing machineInstall size drawings

1540286939692969.pngHorizontal reducer.png

Rf17 power motorreducing machineProduction plant display: three days' appointment for the factory

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
