RF17DR71MS4Detailed Information

RF17DR71MS4
prevnext

RF17DR71MS4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 1. 1 kilowatt-literator (kw) electro-team _ rf17dr71ms4_ rf17dr71d4

RF17DR71MS4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17DR71MS457.350.25KW23.0rpm105N.m14kg156N0.80
RF17DR71MS453.760.25KW24.0rpm99N.m14kg785N0.85
RF17DR71MS447.440.25KW27.0rpm87N.m14kg1630N1.00
RF17DR71MS444.180.25KW29.0rpm81N.m14kg2000N1.05
RF17DR71MS438.610.25KW34.0rpm71N.m14kg2200N1.20
RF17DR71MS436.200.25KW36.0rpm66N.m14kg2180N1.30
RF17DR71MS431.940.25KW41.0rpm59N.m14kg2120N1.45
RF17DR71MS428.320.25KW46.0rpm52N.m14kg2070N1.65
RF17DR71MS424.070.25KW54.0rpm44N.m14kg2000N1.90
RF17DR71MS425.230.25KW52.0rpm46N.m14kg2020N1.85
RF17DR71MS423.150.25KW56.0rpm42N.m14kg1980N2.00
RF17DR71MS419.710.25KW66.0rpm36N.m14kg1910N2.40
RF17DR71MS416.990.25KW77.0rpm31N.m14kg1840N2.70
RF17DR71MS415.840.25KW82.0rpm29N.m14kg1810N2.90
RF17DR71MS413.840.25KW94.0rpm25N.m14kg1740N3.40
RF17DR71MS412.980.25KW100rpm24N.m14kg1720N3.60
RF17DR71MS411.450.25KW114rpm21N.m14kg1660N3.90

Rf17dr71d4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17DR71D438.610.37KW36.0rpm99N.m14.5kg770N0.85
RF17DR71D436.200.37KW38.0rpm93N.m14.5kg1260N0.90
RF17DR71D431.940.37KW43.0rpm82N.m14.5kg1910N1.05
RF17DR71D428.320.37KW49.0rpm72N.m14.5kg1880N1.15
RF17DR71D424.070.37KW57.0rpm62N.m14.5kg1830N1.40
RF17DR71D425.230.37KW55.0rpm65N.m14.5kg1840N1.30
RF17DR71D423.150.37KW60.0rpm59N.m14.5kg1820N1.45
RF17DR71D419.710.37KW70.0rpm50N.m14.5kg1760N1.70
RF17DR71D416.990.37KW81.0rpm44N.m14.5kg1710N1.95
RF17DR71D415.840.37KW87.0rpm40N.m14.5kg1680N2.10
RF17DR71D413.840.37KW100rpm35N.m14.5kg1630N2.40
RF17DR71D412.980.37KW106rpm33N.m14.5kg1610N2.60
RF17DR71D411.450.37KW121rpm29N.m14.5kg1560N2.80
RF17DR71D410.150.37KW136rpm26N.m14.5kg1520N3.00
RF17DR71D48.630.37KW160rpm22N.m14.5kg1460N3.30
RF17DR71D47.550.37KW183rpm19N.m14.5kg1370N2.90
RF17DR71D47.040.37KW196rpm18N.m14.5kg1350N3.10
RF17DR71D46.150.37KW224rpm16N.m14.5kg1300N3.40
RF17DR71D45.760.37KW239rpm15N.m14.5kg1280N3.60
RF17DR71D45.090.37KW271rpm13N.m14.5kg1240N3.90
RF17DR71D44.510.37KW306rpm12N.m14.5kg1200N4.20
RF17DR71D43.830.37KW360rpm9.8N.m14.5kg1140N4.60

Rf17dr71ms4 gear-reducing motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

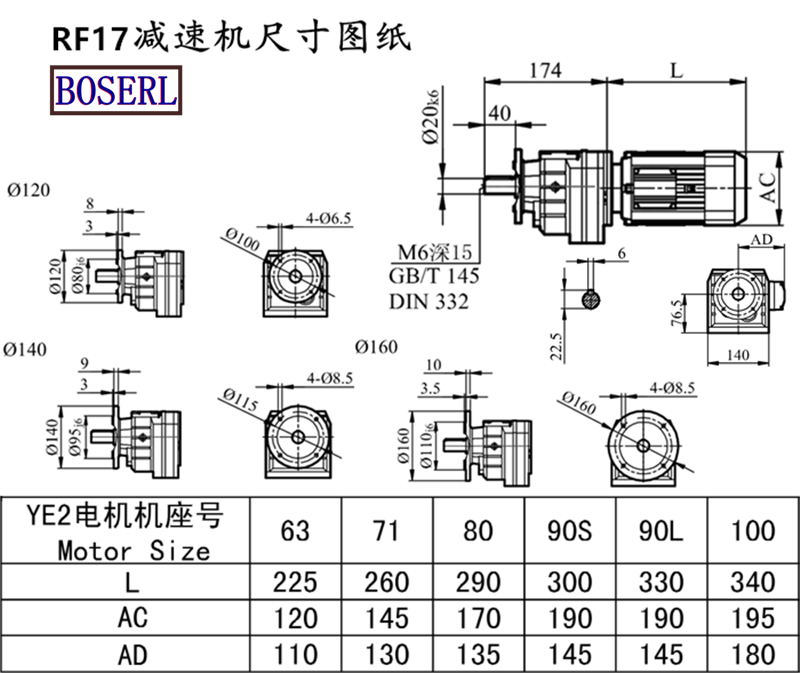

Rf17dr71ms4 gear-reducing motorInstall size drawings

1540286939692969.pngHorizontal reducer.png

Rf17dr71ms4 gear-reducing motorProduction plant display: three days' appointment for the factory

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
