RF17DV71MS4Detailed Information

RF17DV71MS4
prevnext

RF17DV71MS4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 2. 2 kwh of power-reducing unit _ rf17dv71ms4_rf17dv71d4

RF17DV71MS4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17DV71MS457.350.25KW23.0rpm105N.m14kg156N0.80
RF17DV71MS453.760.25KW24.0rpm99N.m14kg785N0.85
RF17DV71MS447.440.25KW27.0rpm87N.m14kg1630N1.00
RF17DV71MS444.180.25KW29.0rpm81N.m14kg2000N1.05
RF17DV71MS438.610.25KW34.0rpm71N.m14kg2200N1.20
RF17DV71MS436.200.25KW36.0rpm66N.m14kg2180N1.30
RF17DV71MS431.940.25KW41.0rpm59N.m14kg2120N1.45
RF17DV71MS428.320.25KW46.0rpm52N.m14kg2070N1.65
RF17DV71MS424.070.25KW54.0rpm44N.m14kg2000N1.90
RF17DV71MS425.230.25KW52.0rpm46N.m14kg2020N1.85
RF17DV71MS423.150.25KW56.0rpm42N.m14kg1980N2.00
RF17DV71MS419.710.25KW66.0rpm36N.m14kg1910N2.40
RF17DV71MS416.990.25KW77.0rpm31N.m14kg1840N2.70
RF17DV71MS415.840.25KW82.0rpm29N.m14kg1810N2.90
RF17DV71MS413.840.25KW94.0rpm25N.m14kg1740N3.40
RF17DV71MS412.980.25KW100rpm24N.m14kg1720N3.60
RF17DV71MS411.450.25KW114rpm21N.m14kg1660N3.90

Rf17dv71d4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF17DV71D438.610.37KW36.0rpm99N.m14.5kg770N0.85
RF17DV71D436.200.37KW38.0rpm93N.m14.5kg1260N0.90
RF17DV71D431.940.37KW43.0rpm82N.m14.5kg1910N1.05
RF17DV71D428.320.37KW49.0rpm72N.m14.5kg1880N1.15
RF17DV71D424.070.37KW57.0rpm62N.m14.5kg1830N1.40
RF17DV71D425.230.37KW55.0rpm65N.m14.5kg1840N1.30
RF17DV71D423.150.37KW60.0rpm59N.m14.5kg1820N1.45
RF17DV71D419.710.37KW70.0rpm50N.m14.5kg1760N1.70
RF17DV71D416.990.37KW81.0rpm44N.m14.5kg1710N1.95
RF17DV71D415.840.37KW87.0rpm40N.m14.5kg1680N2.10
RF17DV71D413.840.37KW100rpm35N.m14.5kg1630N2.40
RF17DV71D412.980.37KW106rpm33N.m14.5kg1610N2.60
RF17DV71D411.450.37KW121rpm29N.m14.5kg1560N2.80
RF17DV71D410.150.37KW136rpm26N.m14.5kg1520N3.00
RF17DV71D48.630.37KW160rpm22N.m14.5kg1460N3.30
RF17DV71D47.550.37KW183rpm19N.m14.5kg1370N2.90
RF17DV71D47.040.37KW196rpm18N.m14.5kg1350N3.10
RF17DV71D46.150.37KW224rpm16N.m14.5kg1300N3.40
RF17DV71D45.760.37KW239rpm15N.m14.5kg1280N3.60
RF17DV71D45.090.37KW271rpm13N.m14.5kg1240N3.90
RF17DV71D44.510.37KW306rpm12N.m14.5kg1200N4.20
RF17DV71D43.830.37KW360rpm9.8N.m14.5kg1140N4.60

Rf17dv71ms4 gear-reducing motorType:

Rx17dv71ms4 single-step foot installation of tilt gear-reducing power

Rxf17dv71ms4 single b5Motor geared reducer

R17dv71ms4 bottom foot installation of tilt gearreducing power

R17fdv71ms4 bottom foot, b5frand installation of tilt gear reduction power

Rf17dv71ms4b5 franc installation of tilt gear reduction power

Rz17dv71ms4b14 installation of tilt gear-retarding motors

Rx17dv71d4 single foot installation of tilt gear reduction power

Rxf17dv71d4 single-scale b5 frf with tilt gear reduction machines

R17dv71d4 bottom foot installation of tilt gear reduction power

R17fdv71d4 bottom foot, b5frand installation of tilt gear deviation engine

Rf17dv71d4b5 installation of tilt gear-reducing power

Rz17dv71d4b14 installation of tilt gear-reducing electric power

Horizontal reducer.png

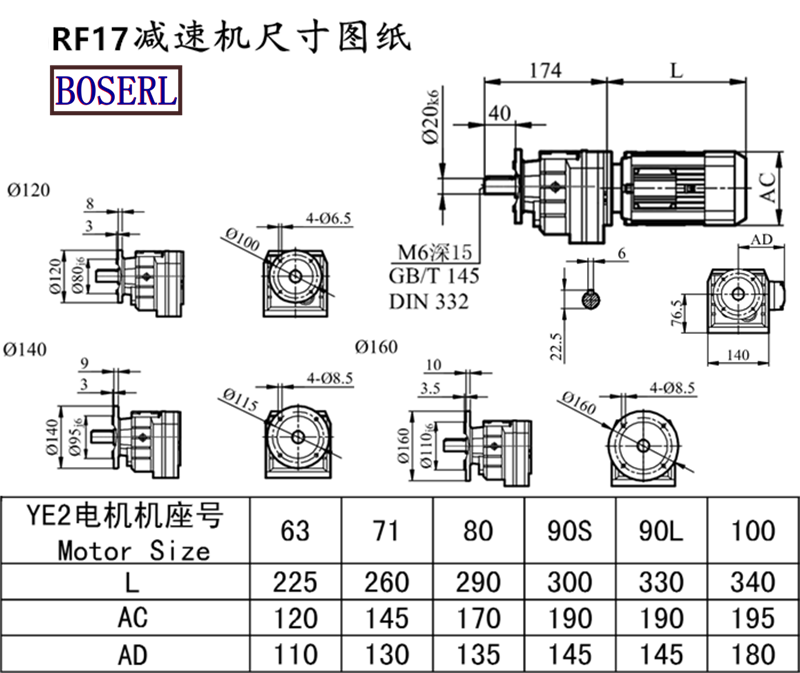

Rf17dv71ms4 gear-reducing motorInstall size drawings

1540286939692969.pngHorizontal reducer.png

Rf17dv71ms4 gear-reducing motorProduction demonstration: three days' advance appointment for the factoryVertical reducer

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements


标签:  2. 2 kilowatt-wire speed reduction unit rf17dv71ms4rrf17dv71d4
tags： 2. 2 kilowatt-wire speed reduction unit rf17dv71ms4rrf17dv71d4
