RF27DVE63S4Detailed Information
Keywords: 18. 5 kw flat--reducing power unit _rf27dve63s4_rf27dre63s4
RF27DVE63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF27DVE63S4 | 135.09 | 0.12KW | 10.0rpm | 112N.m | 11kg | 4310N | 1.15 |
| RF27DVE63S4 | 123.91 | 0.12KW | 11.0rpm | 103N.m | 11kg | 4340N | 1.25 |
| RF27DVE63S4 | 105.49 | 0.12KW | 13.0rpm | 88N.m | 11kg | 4390N | 1.50 |
| RF27DVE63S4 | 90.96 | 0.12KW | 15.0rpm | 76N.m | 11kg | 4420N | 1.70 |
| RF27DVE63S4 | 84.78 | 0.12KW | 16.0rpm | 70N.m | 11kg | 4440N | 1.85 |
| RF27DVE63S4 | 74.11 | 0.12KW | 19.0rpm | 62N.m | 11kg | 4460N | 2.10 |
| RF27DVE63S4 | 69.47 | 0.12KW | 20.0rpm | 58N.m | 11kg | 4460N | 2.20 |
| RF27DVE63S4 | 61.30 | 0.12KW | 23.0rpm | 51N.m | 11kg | 4400N | 2.60 |
| RF27DVE63S4 | 55.87 | 0.12KW | 25.0rpm | 46N.m | 11kg | 4280N | 2.80 |
| RF27DVE63S4 | 48.17 | 0.12KW | 29.0rpm | 40N.m | 11kg | 4090N | 3.20 |
| RF27DVE63S4 | 44.90 | 0.12KW | 31.0rpm | 37N.m | 11kg | 4000N | 3.50 |
Rf27dre63s4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF27DRE63S4 | 135.09 | 0.12KW | 10.0rpm | 112N.m | 11kg | 4310N | 1.15 |
| RF27DRE63S4 | 123.91 | 0.12KW | 11.0rpm | 103N.m | 11kg | 4340N | 1.25 |
| RF27DRE63S4 | 105.49 | 0.12KW | 13.0rpm | 88N.m | 11kg | 4390N | 1.50 |
| RF27DRE63S4 | 90.96 | 0.12KW | 15.0rpm | 76N.m | 11kg | 4420N | 1.70 |
| RF27DRE63S4 | 84.78 | 0.12KW | 16.0rpm | 70N.m | 11kg | 4440N | 1.85 |
| RF27DRE63S4 | 74.11 | 0.12KW | 19.0rpm | 62N.m | 11kg | 4460N | 2.10 |
| RF27DRE63S4 | 69.47 | 0.12KW | 20.0rpm | 58N.m | 11kg | 4460N | 2.20 |
| RF27DRE63S4 | 61.30 | 0.12KW | 23.0rpm | 51N.m | 11kg | 4400N | 2.60 |
| RF27DRE63S4 | 55.87 | 0.12KW | 25.0rpm | 46N.m | 11kg | 4280N | 2.80 |
| RF27DRE63S4 | 48.17 | 0.12KW | 29.0rpm | 40N.m | 11kg | 4090N | 3.20 |
| RF27DRE63S4 | 44.90 | 0.12KW | 31.0rpm | 37N.m | 11kg | 4000N | 3.50 |
Rf27dve63s4 deviation motionType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

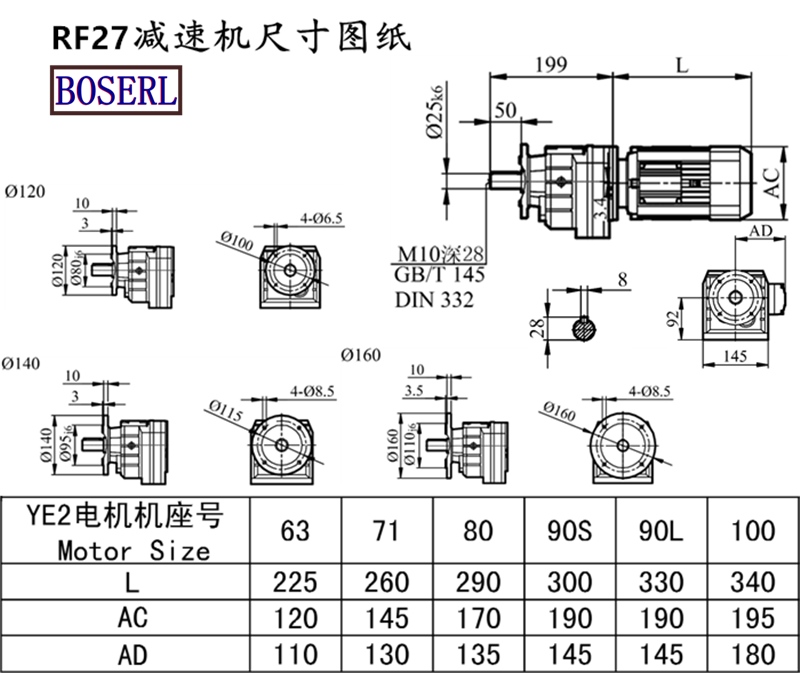

Rf27dve63s4 deviation motionInstall size drawings
Rf27dve63s4 deviation motionProduction plant display: three days' appointment for the factory
Vertical reducerPresentation of application cases:
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
