RF37DVE71S4Detailed Information

RF37DVE71S4
prevnext

RF37DVE71S4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 200kw380vreducing machine_ rf37dve71s4_rf37dre71s4

RF37DVE71S4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF37DVE71S4134.82
0.25KW9.60rpm245N.m18.5kg2630N0.80
RF37DVE71S4123.66
0.25KW11.0rpm225N.m18.5kg4560N0.90
RF37DVE71S4105.280.25KW12.0rpm193N.m18.5kg5030N1.05
RF37DVE71S490.770.25KW14.0rpm167N.m18.5kg5320N1.20
RF37DVE71S484.610.25KW15.0rpm155N.m18.5kg5420N1.30
RF37DVE71S473.960.25KW18.0rpm136N.m18.5kg5580N1.45
RF37DVE71S469.330.25KW19.0rpm127N.m18.5kg5650N1.55
RF37DVE71S461.180.25KW21.0rpm112N.m18.5kg5750N1.80
RF37DVE71S455.760.25KW23.0rpm102N.m18.5kg5800N1.95
RF37DVE71S448.080.25KW27.0rpm88N.m18.5kg5870N2.30
RF37DVE71S444.810.25KW29.0rpm82N.m18.5kg5760N2.40
RF37DVE71S439.170.25KW33.0rpm72N.m18.5kg5540N2.80
RF37DVE71S436.720.25KW35.0rpm67N.m18.5kg5430N3.00
RF37DVE71S432.40.25KW40.0rpm60N.m18.5kg5230N3.40

Rf37dre71s4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF37DRE71S4134.82
0.25KW9.60rpm245N.m18.5kg2630N0.80
RF37DRE71S4123.66
0.25KW11.0rpm225N.m18.5kg4560N0.90
RF37DRE71S4105.280.25KW12.0rpm193N.m18.5kg5030N1.05
RF37DRE71S490.770.25KW14.0rpm167N.m18.5kg5320N1.20
RF37DRE71S484.610.25KW15.0rpm155N.m18.5kg5420N1.30
RF37DRE71S473.960.25KW18.0rpm136N.m18.5kg5580N1.45
RF37DRE71S469.330.25KW19.0rpm127N.m18.5kg5650N1.55
RF37DRE71S461.180.25KW21.0rpm112N.m18.5kg5750N1.80
RF37DRE71S455.760.25KW23.0rpm102N.m18.5kg5800N1.95
RF37DRE71S448.080.25KW27.0rpm88N.m18.5kg5870N2.30
RF37DRE71S444.810.25KW29.0rpm82N.m18.5kg5760N2.40
RF37DRE71S439.170.25KW33.0rpm72N.m18.5kg5540N2.80
RF37DRE71S436.720.25KW35.0rpm67N.m18.5kg5430N3.00
RF37DRE71S432.40.25KW40.0rpm60N.m18.5kg5230N3.40

Rf37dve71s4 gear deviator motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

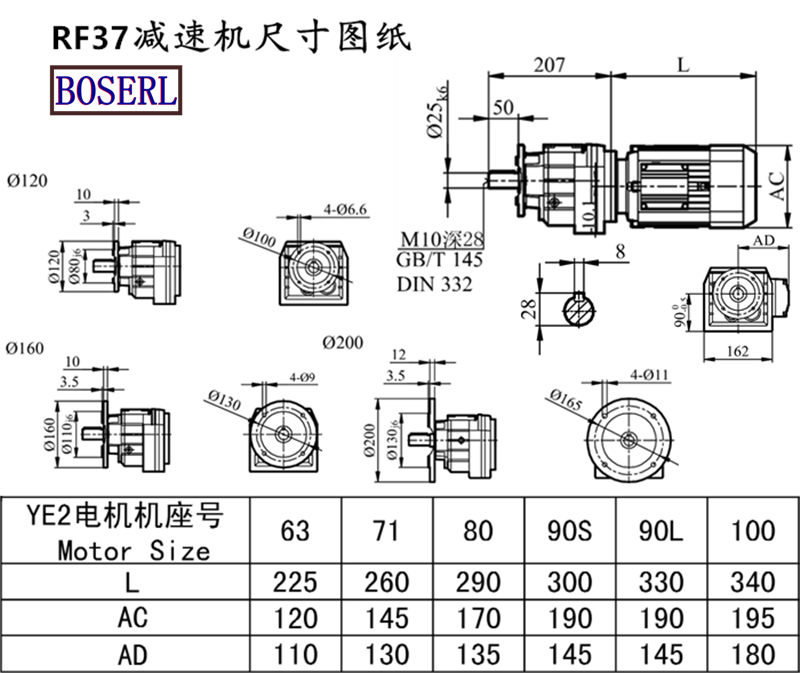

Rf37dve71s4 gear deviator motorInstall size drawings

1540286824870811.pngHorizontal reducer.png

Rf37dve71s4 gear deviator motorProduction plant display: three days' appointment for the factory

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
