RF57DRS132S4Detailed Information
Keyword: 2. 2kw220vreducing power rf57drs132s4_rf57dr132s4
RF57DRS132S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57DRS132S4 | 7.97 | 7.5KW | 184rpm | 385N.m | 91kg | 1130N | 0.90 |
| RF57DRS132S4 | 7.53 | 7.5KW | 195rpm | 365N.m | 91kg | 1420N | 0.95 |
| RF57DRS132S4 | 6.41 | 7.5KW | 229rpm | 310N.m | 91kg | 2130N | 1.05 |
| RF57DRS132S4 | 5.82 | 7.5KW | 252rpm | 280N.m | 91kg | 2470N | 1.15 |
| RF57DRS132S4 | 5.05 | 7.5KW | 291rpm | 245N.m | 91kg | 2750N | 1.25 |
| RF57DRS132S4 | 4.39 | 7.5KW | 335rpm | 210N.m | 91kg | 2800N | 1.30 |
Rf57dr132s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57DR132S4 | 186.89 | 0.12KW | 7.40rpm | 155N.m | 23.5kg | 7920N | 2.90 |
| RF57DR132S4 | 172.17 | 0.12KW | 8.00rpm | 143N.m | 23.5kg | 7940N | 3.20 |
| RF57DR132S4 | 147.92 | 0.12KW | 9.30rpm | 123N.m | 23.5kg | 7960N | 3.70 |
| RF57DR132S4 | 128.77 | 0.12KW | 11.0rpm | 107N.m | 23.5kg | 7980N | 4.20 |
Rf57drs132s4 motor deceleratorType:
Rx57drs132s4 single foot installation of tilt gear-reducing electric power
Rxf57drs132s4 single b5Motor geared reducer
R57drs132s4 bottom foot installation of tilt gears for reduction
R57fdrs132s4 bottom foot, b5frand installation of tilt gear deviation electric
Rf57drs132s4b5 installation of tilt gear-reducing power
Rz57drs132s4b14 installation of tilt gear-reducing electrics
Rx57dr132s4 single foot installation of tilt gear reduction power
Rxf57dr132s4 single-scale b5 flang installation of tilt gear-reducing motors
R57dr132s4 bottom foot installation of tilt gears for reduction power
R57fdr132s4 bottom foot, b5frand installation of tilt gear-reducing power
Rf57dr132s4b5 installation of tilt gear-reducing power
Rz57dr132s4b14 installation of tilt gear-reducing electric power

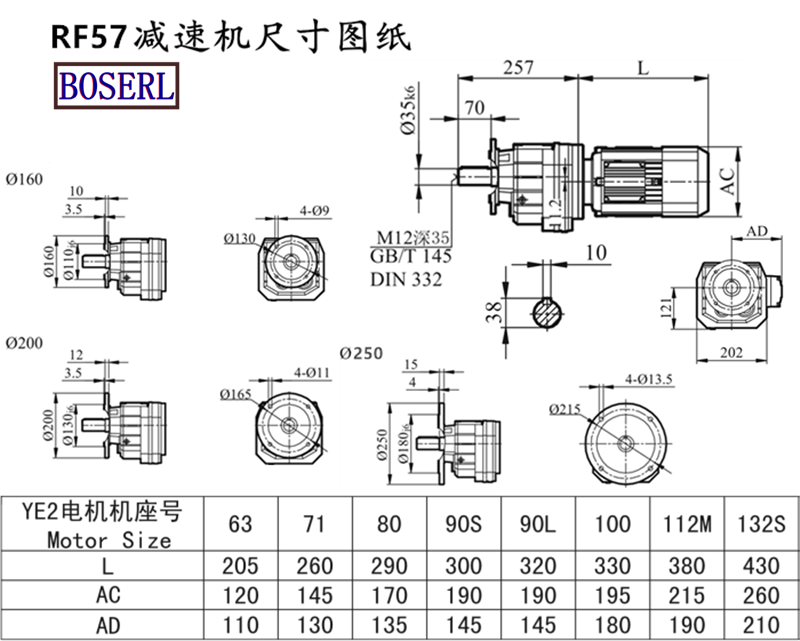

Rf57drs132s4 motor deceleratorInstall size drawings
Rf57drs132s4 motor deceleratorProducer: Please make an appointment three days in advanceVertical reducer
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
