RF57R37DM63MS4Detailed Information
Keyword: how much of a 160kw power can be slashed gear-retarder_rf57r37dm63ms4_rf57r37dt71ms4
RF57R37DM63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DM63MS4 | 782 | 0.12KW | 1.80r/min | 550N.m | 32kg | 4650N | 0.80 |
| RF57R37DM63MS4 | 678 | 0.12KW | 2.00r/min | 455N.m | 32kg | 7070N | 1.00 |
| RF57R37DM63MS4 | 604 | 0.12KW | 2.30r/min | 410N.m | 32kg | 7260N | 1.10 |
| RF57R37DM63MS4 | 537 | 0.12KW | 2.60r/min | 370N.m | 32kg | 7400N | 1.20 |
| RF57R37DM63MS4 | 471 | 0.12KW | 2.90r/min | 325N.m | 32kg | 7550N | 1.35 |
| RF57R37DM63MS4 | 357 | 0.12KW | 3.90r/min | 240N.m | 32kg | 7760N | 1.85 |
| RF57R37DM63MS4 | 319 | 0.12KW | 4.30r/min | 215N.m | 32kg | 7820N | 2.10 |
| RF57R37DM63MS4 | 359 | 0.12KW | 3.80r/min | 255N.m | 32kg | 7730N | 1.75 |
| RF57R37DM63MS4 | 324 | 0.12KW | 4.30r/min | 230N.m | 32kg | 7790N | 1.95 |
| RF57R37DM63MS4 | 290 | 0.12KW | 4.80r/min | 200N.m | 32kg | 7840N | 2.20 |
| RF57R37DM63MS4 | 262 | 0.12KW | 5.30r/min | 185N.m | 32kg | 7880N | 2.40 |
| RF57R37DM63MS4 | 246 | 0.12KW | 5.60r/min | 170N.m | 32kg | 7900N | 2.60 |
| RF57R37DM63MS4 | 220 | 0.12KW | 6.30r/min | 150N.m | 32kg | 7930N | 3.00 |
Rf57r37dt71ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DT71MS4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DT71MS4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DT71MS4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DT71MS4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DT71MS4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DT71MS4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DT71MS4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DT71MS4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DT71MS4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DT71MS4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DT71MS4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DT71MS4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
Rf57r37dm63ms4 deviation motorType:
Rx57r37dm63ms4 electricly motorized single-stage bottom foot installation of tilt gear-reducing power
Rxf57r37dm63ms4 power-motion single-level b5 franMotor geared reducer
R57r37dm63ms4 electric motor base foot installation of tilt gear reduction power
R57fr37dm63ms4 motor base, b5 fran with tilt gear reduction power
Rf57r37dm63ms4 electric motor b5 frf installation of tilt gear reduction power
Rz57r37dm63ms4 electric motor b14 flang installation of tilt gear reduction power

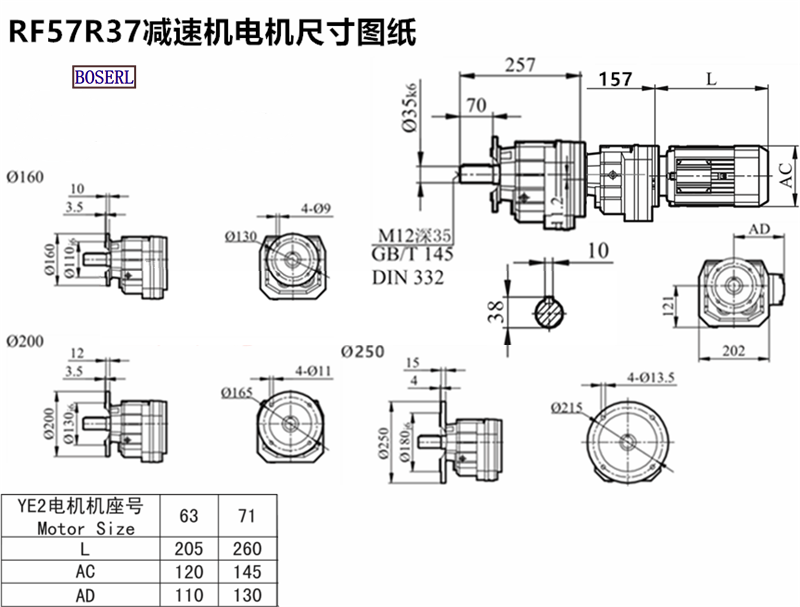

Rf57r37dm63ms4 deviation motorInstall size drawings
Rf57r37dm63ms4 deviation power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
