RF57R37DR71S4Detailed Information
Keywords: 15 kw power and how big a slasher _ rf57r37dr71s4_rf57r37dv63m4
RF57R37DR71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DR71S4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DR71S4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DR71S4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DR71S4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DR71S4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DR71S4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DR71S4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DR71S4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DR71S4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DR71S4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DR71S4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DR71S4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
RF57R37DV63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DV63M4 | 782 | 0.12KW | 1.80r/min | 550N.m | 32kg | 4650N | 0.80 |
| RF57R37DV63M4 | 678 | 0.12KW | 2.00r/min | 455N.m | 32kg | 7070N | 1.00 |
| RF57R37DV63M4 | 604 | 0.12KW | 2.30r/min | 410N.m | 32kg | 7260N | 1.10 |
| RF57R37DV63M4 | 537 | 0.12KW | 2.60r/min | 370N.m | 32kg | 7400N | 1.20 |
| RF57R37DV63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 32kg | 7550N | 1.35 |
| RF57R37DV63M4 | 357 | 0.12KW | 3.90r/min | 240N.m | 32kg | 7760N | 1.85 |
| RF57R37DV63M4 | 319 | 0.12KW | 4.30r/min | 215N.m | 32kg | 7820N | 2.10 |
| RF57R37DV63M4 | 359 | 0.12KW | 3.80r/min | 255N.m | 32kg | 7730N | 1.75 |
| RF57R37DV63M4 | 324 | 0.12KW | 4.30r/min | 230N.m | 32kg | 7790N | 1.95 |
| RF57R37DV63M4 | 290 | 0.12KW | 4.80r/min | 200N.m | 32kg | 7840N | 2.20 |
| RF57R37DV63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 32kg | 7880N | 2.40 |
| RF57R37DV63M4 | 246 | 0.12KW | 5.60r/min | 170N.m | 32kg | 7900N | 2.60 |
| RF57R37DV63M4 | 220 | 0.12KW | 6.30r/min | 150N.m | 32kg | 7930N | 3.00 |
Rf57r37dr71s4 deviation machineType:
Rx57r37dr71s4 electricly motorized single-step bottom foot installation of tilt gear reduction power
Rxf57r37dr71s4 power drive single-level b5 franMotor geared reducer
R57r37dr71s4 powered by tilt gears at the bottom of the motor
R57fr37dr71s4reducing motor base foot, b5franc installation of tilt gear-reducing motor
Rf57r37dr71s4 powered motor b5 fran with tilt gear reduction power
Rz57r37dr71s4 electric motor b14 flang installation of tilt gear reduction power

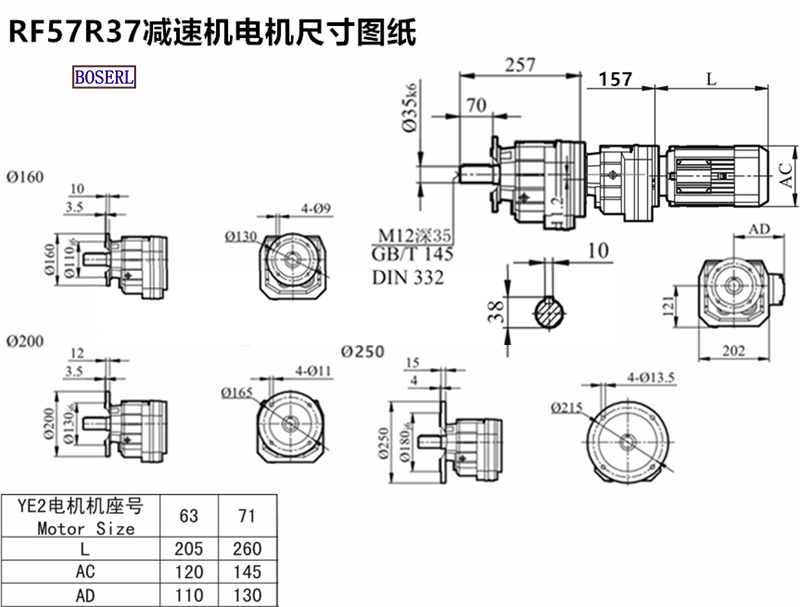

Rf57r37dr71s4 deviation machineInstall size drawings
Rf57r37dr71s4 deviation power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
