RF57R37DRE71D4Detailed Information
Keywords: 7. 5 kw electric power with an oscillator _ rf57r37dre71d4_rf57r37drs63m4
RF57R37DRE71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DRE71D4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DRE71D4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRE71D4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DRE71D4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DRE71D4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DRE71D4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DRE71D4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DRE71D4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DRE71D4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DRE71D4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRE71D4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DRE71D4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
RF57R37DRS63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DRS63M4 | 782 | 0.12KW | 1.80r/min | 550N.m | 32kg | 4650N | 0.80 |
| RF57R37DRS63M4 | 678 | 0.12KW | 2.00r/min | 455N.m | 32kg | 7070N | 1.00 |
| RF57R37DRS63M4 | 604 | 0.12KW | 2.30r/min | 410N.m | 32kg | 7260N | 1.10 |
| RF57R37DRS63M4 | 537 | 0.12KW | 2.60r/min | 370N.m | 32kg | 7400N | 1.20 |
| RF57R37DRS63M4 | 471 | 0.12KW | 2.90r/min | 325N.m | 32kg | 7550N | 1.35 |
| RF57R37DRS63M4 | 357 | 0.12KW | 3.90r/min | 240N.m | 32kg | 7760N | 1.85 |
| RF57R37DRS63M4 | 319 | 0.12KW | 4.30r/min | 215N.m | 32kg | 7820N | 2.10 |
| RF57R37DRS63M4 | 359 | 0.12KW | 3.80r/min | 255N.m | 32kg | 7730N | 1.75 |
| RF57R37DRS63M4 | 324 | 0.12KW | 4.30r/min | 230N.m | 32kg | 7790N | 1.95 |
| RF57R37DRS63M4 | 290 | 0.12KW | 4.80r/min | 200N.m | 32kg | 7840N | 2.20 |
| RF57R37DRS63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 32kg | 7880N | 2.40 |
| RF57R37DRS63M4 | 246 | 0.12KW | 5.60r/min | 170N.m | 32kg | 7900N | 2.60 |
| RF57R37DRS63M4 | 220 | 0.12KW | 6.30r/min | 150N.m | 32kg | 7930N | 3.00 |
Rf57r37dre71d4reducing motorType:
Rx57r37dre71d4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors
Rxf57r37dre71d4 electric motor, single level b5flMotor geared reducer
R57r37dre71d4 electrical motor base foot of r57r37dre71d
R57fr37drre71d4 motor base foot ofreducing machine, and b5franc installation of tilt gear-reducing motor
Rf57r37dre71d4 electric motor b5fl
Rz57r37dre71d4 electric motor b14frand installation of tilt gear reduction power

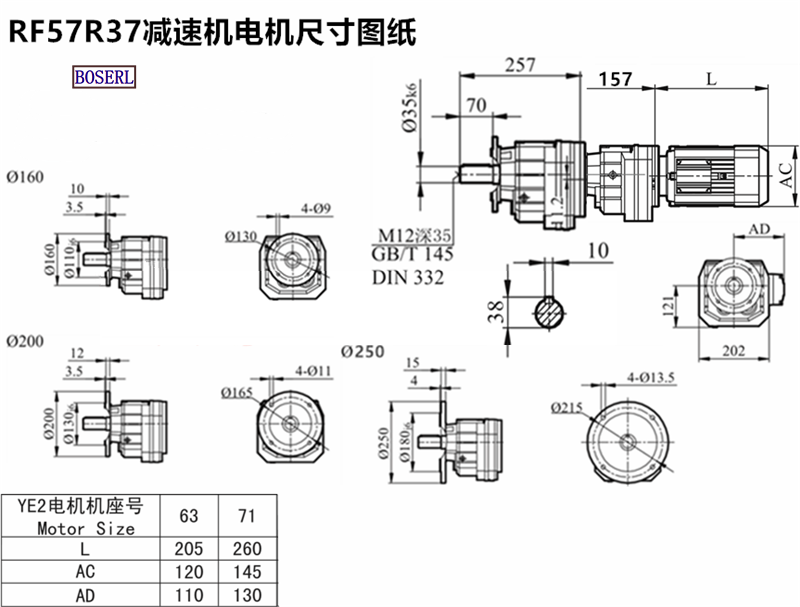

Rf57r37dre71d4reducing motorInstall size drawings
Rf57r37dre71d4 power plant, three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 7. 5 kw power power with an oscillated gear speed reduction machine rf57r37dre71d4 rf57r37drs63m4
- 上一条RF57R37DRE63L4
- 下一条RF57R37DR71D4
