RF57R37DRS71D4Detailed Information

prevnext

RF57R37DRS71D4

TEL：Email:[email protected]

详细信息

Keyword: how much kw power does it have? rf57r37drs71d4_rf57r37dve63l4

RF57R37DRS71D4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF57R37DRS71D4	319	0.25KW	4.10r/min	515N.m	36.5kg	6050N	0.85
RF57R37DRS71D4	273	0.25KW	4.80r/min	435N.m	36.5kg	7160N	1.05
RF57R37DRS71D4	241	0.25KW	5.40r/min	380N.m	36.5kg	7380N	1.20
RF57R37DRS71D4	215	0.25KW	6.00r/min	340N.m	36.5kg	7510N	1.30
RF57R37DRS71D4	187	0.25KW	7.00r/min	300N.m	36.5kg	7630N	1.50
RF57R37DRS71D4	164	0.25KW	7.90r/min	260N.m	36.5kg	7730N	1.75
RF57R37DRS71D4	142	0.25KW	9.20r/min	225N.m	36.5kg	7800N	2.00
RF57R37DRS71D4	324	0.25KW	4.00r/min	540N.m	36.5kg	4980N	0.85
RF57R37DRS71D4	290	0.25KW	4.50r/min	480N.m	36.5kg	6950N	0.95
RF57R37DRS71D4	262	0.25KW	5.00r/min	435N.m	36.5kg	7160N	1.05
RF57R37DRS71D4	246	0.25KW	5.30r/min	405N.m	36.5kg	7280N	1.10
RF57R37DRS71D4	220	0.25KW	5.90r/min	360N.m	36.5kg	7440N	1.25

Rf57r37dve63l4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF57R37DVE63L4	454	0.18KW	2.90r/min	500N.m	32.5kg	6650N	0.90
RF57R37DVE63L4	410	0.18KW	3.20r/min	450N.m	32.5kg	7090N	1.00
RF57R37DVE63L4	471	0.18KW	2.80r/min	535N.m	32.5kg	5250N	0.85
RF57R37DVE63L4	357	0.18KW	3.70r/min	400N.m	32.5kg	7300N	1.10
RF57R37DVE63L4	319	0.18KW	4.10r/min	355N.m	32.5kg	7460N	1.25
RF57R37DVE63L4	273	0.18KW	4.80r/min	300N.m	32.5kg	7630N	1.50
RF57R37DVE63L4	241	0.18KW	5.50r/min	260N.m	32.5kg	7730N	1.75
RF57R37DVE63L4	215	0.18KW	6.10r/min	230N.m	32.5kg	7790N	1.95
RF57R37DVE63L4	359	0.18KW	3.70r/min	420N.m	32.5kg	7230N	1.05
RF57R37DVE63L4	324	0.18KW	4.10r/min	375N.m	32.5kg	7380N	1.20
RF57R37DVE63L4	290	0.18KW	4.60r/min	335N.m	32.5kg	7530N	1.35
RF57R37DVE63L4	262	0.18KW	5.00r/min	300N.m	32.5kg	7620N	1.50
RF57R37DVE63L4	246	0.18KW	5.40r/min	280N.m	32.5kg	7680N	1.60
RF57R37DVE63L4	220	0.18KW	6.00r/min	245N.m	32.5kg	7750N	1.80
RF57R37DVE63L4	188	0.18KW	7.00r/min	210N.m	32.5kg	7830N	2.10
RF57R37DVE63L4	159	0.18KW	8.30r/min	177N.m	32.5kg	7890N	2.60

Rf57r37drrs71d4 deviation motorType:

Rx57r37drrs71d4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors

Rxf57r37drrs71d4 power-motion single level b5 franMotor geared reducer

R57r37drrs71d4 electric motor base foot installation of tilt gear reduction power

R57fr37drrs71d4 motor base foot forreducing machines, b5franc installation of tilt gear-reducing motors

Rf57r37drrs71d4 electric motor b5 frf installation of tilt gear reduction power

Rz57r37drs71d4 electric motor b14frane installation of tilt gear reduction power

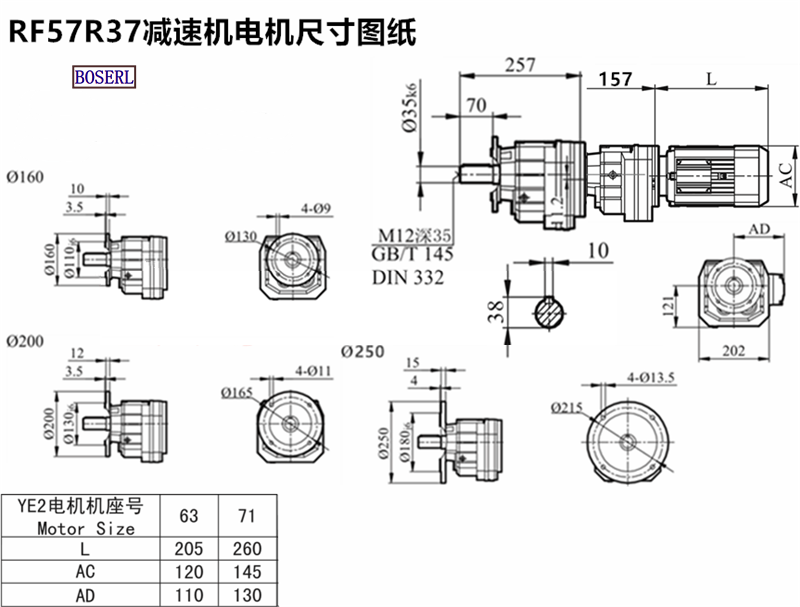

Rf57r37drrs71d4 deviation motorInstall size drawings

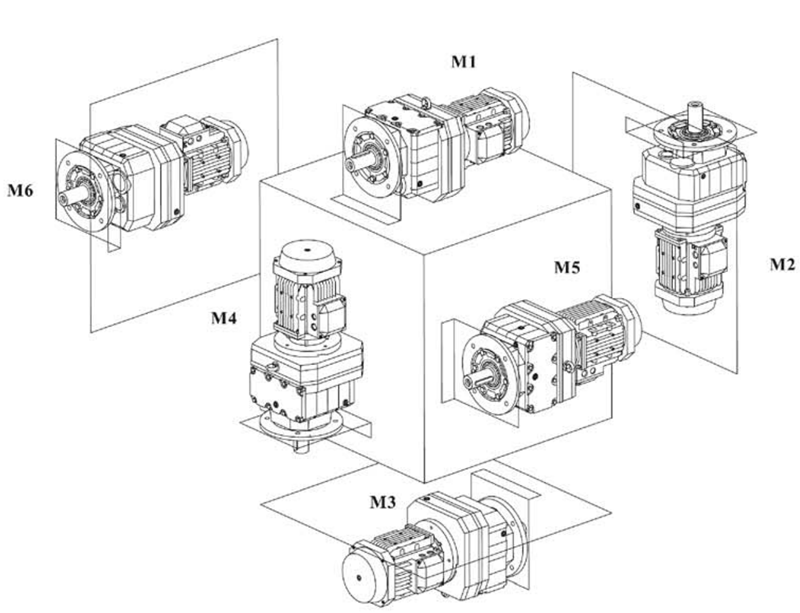

wireless image_20230524161727.png

Rf57r37drs71d4 power plant. please make an appointment three days in advanceStraight output reduction machine

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
