RF57R37DV63L4Detailed Information
Keywords: 1. 5 kw electric power with an oscillator _ rf57r37dv63l4_rf57r37drn71d4
RF57R37DV63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DV63L4 | 454 | 0.18KW | 2.90r/min | 500N.m | 32.5kg | 6650N | 0.90 |
| RF57R37DV63L4 | 410 | 0.18KW | 3.20r/min | 450N.m | 32.5kg | 7090N | 1.00 |
| RF57R37DV63L4 | 471 | 0.18KW | 2.80r/min | 535N.m | 32.5kg | 5250N | 0.85 |
| RF57R37DV63L4 | 357 | 0.18KW | 3.70r/min | 400N.m | 32.5kg | 7300N | 1.10 |
| RF57R37DV63L4 | 319 | 0.18KW | 4.10r/min | 355N.m | 32.5kg | 7460N | 1.25 |
| RF57R37DV63L4 | 273 | 0.18KW | 4.80r/min | 300N.m | 32.5kg | 7630N | 1.50 |
| RF57R37DV63L4 | 241 | 0.18KW | 5.50r/min | 260N.m | 32.5kg | 7730N | 1.75 |
| RF57R37DV63L4 | 215 | 0.18KW | 6.10r/min | 230N.m | 32.5kg | 7790N | 1.95 |
| RF57R37DV63L4 | 359 | 0.18KW | 3.70r/min | 420N.m | 32.5kg | 7230N | 1.05 |
| RF57R37DV63L4 | 324 | 0.18KW | 4.10r/min | 375N.m | 32.5kg | 7380N | 1.20 |
| RF57R37DV63L4 | 290 | 0.18KW | 4.60r/min | 335N.m | 32.5kg | 7530N | 1.35 |
| RF57R37DV63L4 | 262 | 0.18KW | 5.00r/min | 300N.m | 32.5kg | 7620N | 1.50 |
| RF57R37DV63L4 | 246 | 0.18KW | 5.40r/min | 280N.m | 32.5kg | 7680N | 1.60 |
| RF57R37DV63L4 | 220 | 0.18KW | 6.00r/min | 245N.m | 32.5kg | 7750N | 1.80 |
| RF57R37DV63L4 | 188 | 0.18KW | 7.00r/min | 210N.m | 32.5kg | 7830N | 2.10 |
| RF57R37DV63L4 | 159 | 0.18KW | 8.30r/min | 177N.m | 32.5kg | 7890N | 2.60 |
Rf57r37drn71d4 deviation motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF57R37DRN71D4 | 319 | 0.25KW | 4.10r/min | 515N.m | 36.5kg | 6050N | 0.85 |
| RF57R37DRN71D4 | 273 | 0.25KW | 4.80r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRN71D4 | 241 | 0.25KW | 5.40r/min | 380N.m | 36.5kg | 7380N | 1.20 |
| RF57R37DRN71D4 | 215 | 0.25KW | 6.00r/min | 340N.m | 36.5kg | 7510N | 1.30 |
| RF57R37DRN71D4 | 187 | 0.25KW | 7.00r/min | 300N.m | 36.5kg | 7630N | 1.50 |
| RF57R37DRN71D4 | 164 | 0.25KW | 7.90r/min | 260N.m | 36.5kg | 7730N | 1.75 |
| RF57R37DRN71D4 | 142 | 0.25KW | 9.20r/min | 225N.m | 36.5kg | 7800N | 2.00 |
| RF57R37DRN71D4 | 324 | 0.25KW | 4.00r/min | 540N.m | 36.5kg | 4980N | 0.85 |
| RF57R37DRN71D4 | 290 | 0.25KW | 4.50r/min | 480N.m | 36.5kg | 6950N | 0.95 |
| RF57R37DRN71D4 | 262 | 0.25KW | 5.00r/min | 435N.m | 36.5kg | 7160N | 1.05 |
| RF57R37DRN71D4 | 246 | 0.25KW | 5.30r/min | 405N.m | 36.5kg | 7280N | 1.10 |
| RF57R37DRN71D4 | 220 | 0.25KW | 5.90r/min | 360N.m | 36.5kg | 7440N | 1.25 |
Rf57r37dv63l4 deviation motorType:
Rx57r37dv63l4 electricly motorized single-stage bottom foot installation of tilt gear-reducing electrics
Rxf57r37dv63l4 power drive single-level b5 franMotor geared reducer
R57r37dv63l4 electric motor base foot installation of tilt gear reduction power
R57fr37dv63l4 deviation motor base, b5franc installation of tilt gear deviator
Rf57r37dv63l4 electric motor b5 fran with tilt gear reduction power
Rz57r37dv63l4 electric motor b14 frf installation of tilt gear reduction power

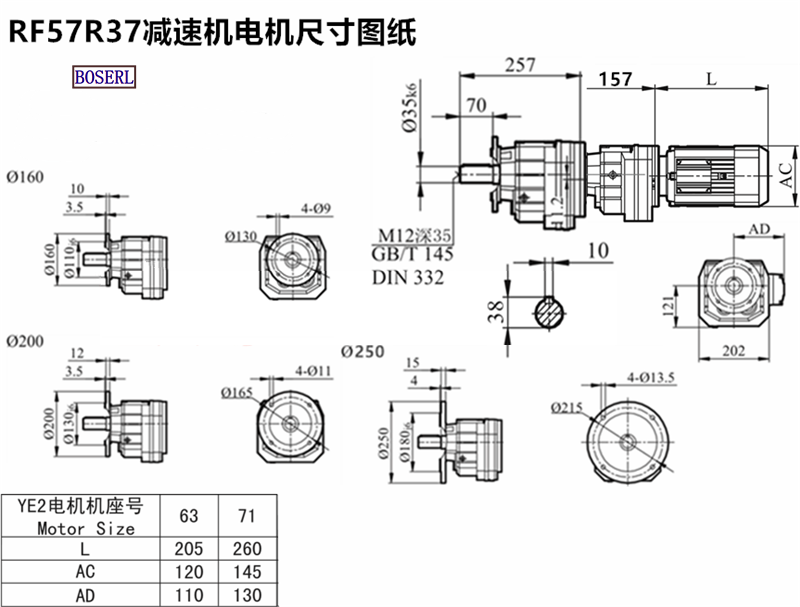

Rf57r37dv63l4 deviation motorInstall size drawings
Rf57r37dv63l4 deviation power plant, three days' appointmentStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
