Rf67 speed reduction motorDetailed Information
Keyword: rf67reducing motor _rf67y012kw_rf67y0. 18kw_rf67reducing machine _rf67reducing machine
RF67Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67Y0.12KW | 199.81 | 0.12KW | 6.9rpm | 166N.m | 30.5kg | 10300N | 3.60 |
| RF67Y0.12KW | 184.07 | 0.12KW | 7.5rpm | 153N.m | 30.5kg | 10400N | 3.90 |
Rf67y0. 18kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67Y0.18KW | 199.81 | 0.18KW | 6.60rpm | 260N.m | 31kg | 10100N | 2.30 |
| RF67Y0.18KW | 184.07 | 0.18KW | 7.20rpm | 235N.m | 31kg | 10100N | 2.50 |
| RF67Y0.18KW | 158.14 | 0.18KW | 8.40rpm | 205N.m | 31kg | 10200N | 2.90 |
| RF67Y0.18KW | 137.67 | 0.18KW | 9.60rpm | 179N.m | 31kg | 10300N | 3.40 |
| RF67Y0.18KW | 128.97 | 0.18KW | 10.0rpm | 168N.m | 31kg | 10300N | 3.60 |
| RF67Y0.18KW | 113.94 | 0.18KW | 12.0rpm | 148N.m | 31kg | 10400N | 4.00 |
| RF67Y0.18KW | 105.83 | 0.18KW | 12.0rpm | 138N.m | 31kg | 10400N | 4.40 |
Rf67 reduction motor Type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

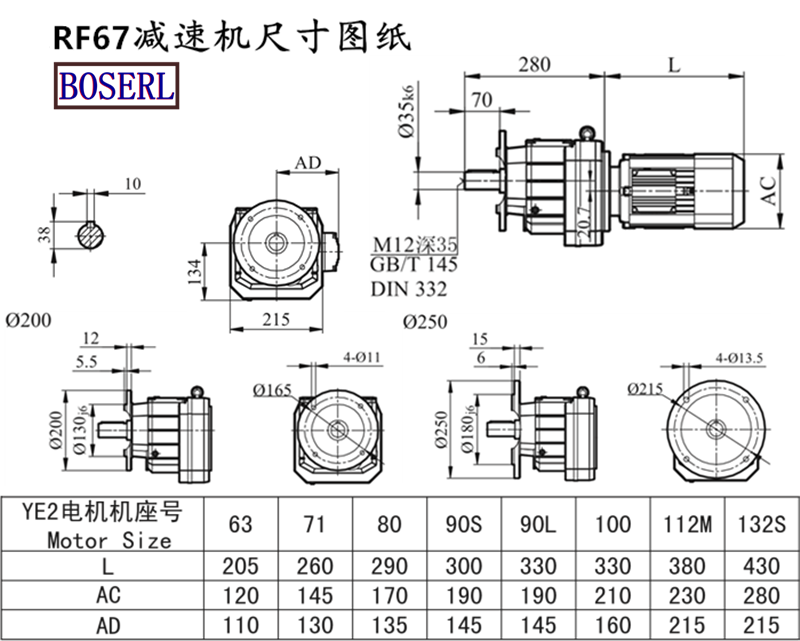

Rf67 reduction motor Install size drawings
Rf67 reduction motor Production plant display: three days' appointment for the factory
Vertical reducerPresentation of application cases:
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
