RF67R37DV63L4Detailed Information
Keywords: 11kw power with what size of a plattered gear-reducing machine _ rf67r37dv63l4_rf67r37drn71ms4
RF67R37DV63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DV63L4 | 571 | 0.18KW | 2.30r/min | 635N.m | 39.5kg | 7060N | 0.95 |
| RF67R37DV63L4 | 486 | 0.18KW | 2.70r/min | 535N.m | 39.5kg | 8250N | 1.10 |
| RF67R37DV63L4 | 574 | 0.18KW | 2.30r/min | 655N.m | 39.5kg | 5820N | 0.90 |
| RF67R37DV63L4 | 495 | 0.18KW | 2.70r/min | 565N.m | 39.5kg | 7950N | 1.05 |
| RF67R37DV63L4 | 438 | 0.18KW | 3.00r/min | 480N.m | 39.5kg | 8740N | 1.25 |
| RF67R37DV63L4 | 388 | 0.18KW | 3.40r/min | 425N.m | 39.5kg | 9160N | 1.40 |
| RF67R37DV63L4 | 344 | 0.18KW | 3.80r/min | 390N.m | 39.5kg | 9380N | 1.55 |
| RF67R37DV63L4 | 294 | 0.18KW | 4.50r/min | 315N.m | 39.5kg | 9800N | 1.90 |
| RF67R37DV63L4 | 261 | 0.18KW | 5.10r/min | 290N.m | 39.5kg | 9920N | 2.10 |
Rf67r37drn71ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DRN71MS4 | 388 | 0.25KW | 3.40r/min | 620N.m | 43.5kg | 7290N | 0.95 |
| RF67R37DRN71MS4 | 344 | 0.25KW | 3.80r/min | 565N.m | 43.5kg | 7950N | 1.05 |
| RF67R37DRN71MS4 | 294 | 0.25KW | 4.40r/min | 465N.m | 43.5kg | 8870N | 1.30 |
| RF67R37DRN71MS4 | 261 | 0.25KW | 5.00r/min | 420N.m | 43.5kg | 9180N | 1.40 |
| RF67R37DRN71MS4 | 234 | 0.25KW | 5.60r/min | 380N.m | 43.5kg | 9460N | 1.60 |
| RF67R37DRN71MS4 | 200 | 0.25KW | 6.50r/min | 320N.m | 43.5kg | 9780N | 1.85 |
| RF67R37DRN71MS4 | 176 | 0.25KW | 7.40r/min | 275N.m | 43.5kg | 9980N | 2.20 |
| RF67R37DRN71MS4 | 158 | 0.25KW | 8.20r/min | 250N.m | 43.5kg | 10100N | 2.40 |
| RF67R37DRN71MS4 | 384 | 0.25KW | 3.40r/min | 640N.m | 43.5kg | 6960N | 0.95 |
| RF67R37DRN71MS4 | 359 | 0.25KW | 3.60r/min | 600N.m | 43.5kg | 7550N | 1.00 |
| RF67R37DRN71MS4 | 310 | 0.25KW | 4.20r/min | 515N.m | 43.5kg | 8430N | 1.15 |
| RF67R37DRN71MS4 | 264 | 0.25KW | 4.90r/min | 435N.m | 43.5kg | 9100N | 1.40 |
| RF67R37DRN71MS4 | 235 | 0.25KW | 5.50r/min | 385N.m | 43.5kg | 9420N | 1.55 |
| RF67R37DRN71MS4 | 201 | 0.25KW | 6.50r/min | 325N.m | 43.5kg | 9750N | 1.85 |
| RF67R37DRN71MS4 | 181 | 0.25KW | 7.20r/min | 295N.m | 43.5kg | 9900N | 2.00 |
Rf67r37dv63l4 deviation motorType:
Rx67r37dv63l4 electricly motorized single-step bottom foot installation of tilt gear-reducing motors
Rxf67r37dv63l4 power drive single level b5 franMotor geared reducer
R67r37dv63l4 electric motor base foot installation of tilt gear reduction power
R67fr37dv63l4 motor base, b5franc installation of tilt gear reduction power
Rf67r37dv63l4 electric motor b5 frf installation of tilt gear reduction power
Rz67r37dv63l4 electric motor b14 frf installation of tilt gear reduction power

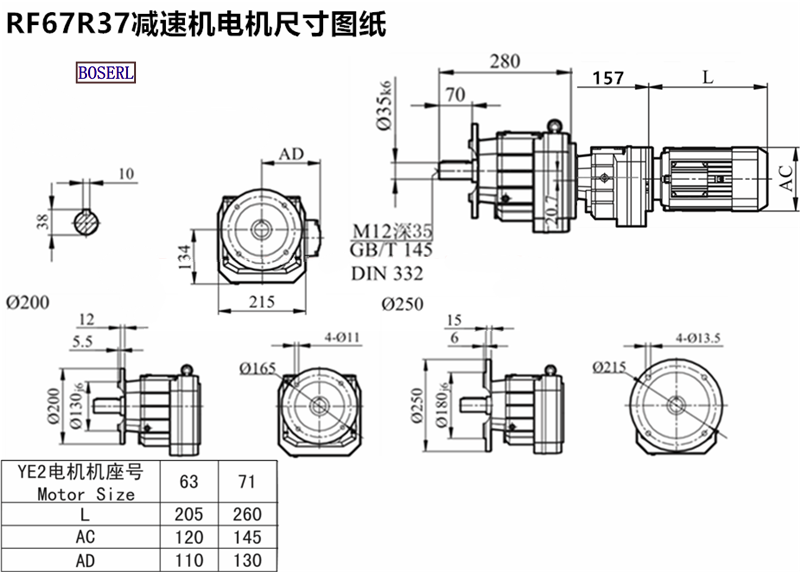

Rf67r37dv63l4 deviation motorInstall size drawings
Rf67r37dv63l4 power-reducing plant. please make an appointment three days in advanceStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
