RF67R37DVE63L4Detailed Information
Keywords: 4kw power with a high- brake_rf67r37dve63l4_rf67r37drre71ms4
RF67R37DVE63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DVE63L4 | 571 | 0.18KW | 2.30r/min | 635N.m | 39.5kg | 7060N | 0.95 |
| RF67R37DVE63L4 | 486 | 0.18KW | 2.70r/min | 535N.m | 39.5kg | 8250N | 1.10 |
| RF67R37DVE63L4 | 574 | 0.18KW | 2.30r/min | 655N.m | 39.5kg | 5820N | 0.90 |
| RF67R37DVE63L4 | 495 | 0.18KW | 2.70r/min | 565N.m | 39.5kg | 7950N | 1.05 |
| RF67R37DVE63L4 | 438 | 0.18KW | 3.00r/min | 480N.m | 39.5kg | 8740N | 1.25 |
| RF67R37DVE63L4 | 388 | 0.18KW | 3.40r/min | 425N.m | 39.5kg | 9160N | 1.40 |
| RF67R37DVE63L4 | 344 | 0.18KW | 3.80r/min | 390N.m | 39.5kg | 9380N | 1.55 |
| RF67R37DVE63L4 | 294 | 0.18KW | 4.50r/min | 315N.m | 39.5kg | 9800N | 1.90 |
| RF67R37DVE63L4 | 261 | 0.18KW | 5.10r/min | 290N.m | 39.5kg | 9920N | 2.10 |
Rf67r37dre71ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DRE71MS4 | 388 | 0.25KW | 3.40r/min | 620N.m | 43.5kg | 7290N | 0.95 |
| RF67R37DRE71MS4 | 344 | 0.25KW | 3.80r/min | 565N.m | 43.5kg | 7950N | 1.05 |
| RF67R37DRE71MS4 | 294 | 0.25KW | 4.40r/min | 465N.m | 43.5kg | 8870N | 1.30 |
| RF67R37DRE71MS4 | 261 | 0.25KW | 5.00r/min | 420N.m | 43.5kg | 9180N | 1.40 |
| RF67R37DRE71MS4 | 234 | 0.25KW | 5.60r/min | 380N.m | 43.5kg | 9460N | 1.60 |
| RF67R37DRE71MS4 | 200 | 0.25KW | 6.50r/min | 320N.m | 43.5kg | 9780N | 1.85 |
| RF67R37DRE71MS4 | 176 | 0.25KW | 7.40r/min | 275N.m | 43.5kg | 9980N | 2.20 |
| RF67R37DRE71MS4 | 158 | 0.25KW | 8.20r/min | 250N.m | 43.5kg | 10100N | 2.40 |
| RF67R37DRE71MS4 | 384 | 0.25KW | 3.40r/min | 640N.m | 43.5kg | 6960N | 0.95 |
| RF67R37DRE71MS4 | 359 | 0.25KW | 3.60r/min | 600N.m | 43.5kg | 7550N | 1.00 |
| RF67R37DRE71MS4 | 310 | 0.25KW | 4.20r/min | 515N.m | 43.5kg | 8430N | 1.15 |
| RF67R37DRE71MS4 | 264 | 0.25KW | 4.90r/min | 435N.m | 43.5kg | 9100N | 1.40 |
| RF67R37DRE71MS4 | 235 | 0.25KW | 5.50r/min | 385N.m | 43.5kg | 9420N | 1.55 |
| RF67R37DRE71MS4 | 201 | 0.25KW | 6.50r/min | 325N.m | 43.5kg | 9750N | 1.85 |
| RF67R37DRE71MS4 | 181 | 0.25KW | 7.20r/min | 295N.m | 43.5kg | 9900N | 2.00 |
Rf67r37dve63l4 deviatorsType:
Rx67r37dve63l4 electricly motorized single-stage bottom foot installation of tilt gear-reducing power
Rxf67r37dve63l4 electric motion single level b5flMotor geared reducer
R67r37dve63l4 electrical motor base foot of thereducing machine fitted with a tilt gear-reducing power plant
R67fr37dve63l4 motor base, b5f with tilt gear reduction power
Rf67r37dve63l4 electric motor b5fl
Rz67r37dve63l4 electric motor b14 frf installation of tilt gear reduction power

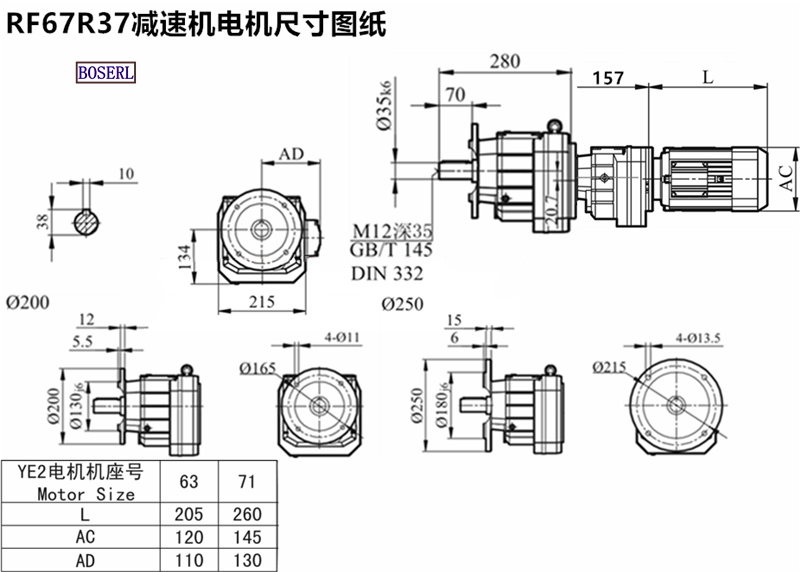

Rf67r37dve63l4 deviatorsInstall size drawings
Rf67r37dve63l4 power-reducing plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
