RF67R37DVE71MS4Detailed Information
Keywords: 0. 25 kw power with a flat-er_rf67r37dve71ms4_rf67r37dre63s4
RF67R37DVE71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DVE71MS4 | 388 | 0.25KW | 3.40r/min | 620N.m | 43.5kg | 7290N | 0.95 |
| RF67R37DVE71MS4 | 344 | 0.25KW | 3.80r/min | 565N.m | 43.5kg | 7950N | 1.05 |
| RF67R37DVE71MS4 | 294 | 0.25KW | 4.40r/min | 465N.m | 43.5kg | 8870N | 1.30 |
| RF67R37DVE71MS4 | 261 | 0.25KW | 5.00r/min | 420N.m | 43.5kg | 9180N | 1.40 |
| RF67R37DVE71MS4 | 234 | 0.25KW | 5.60r/min | 380N.m | 43.5kg | 9460N | 1.60 |
| RF67R37DVE71MS4 | 200 | 0.25KW | 6.50r/min | 320N.m | 43.5kg | 9780N | 1.85 |
| RF67R37DVE71MS4 | 176 | 0.25KW | 7.40r/min | 275N.m | 43.5kg | 9980N | 2.20 |
| RF67R37DVE71MS4 | 158 | 0.25KW | 8.20r/min | 250N.m | 43.5kg | 10100N | 2.40 |
| RF67R37DVE71MS4 | 384 | 0.25KW | 3.40r/min | 640N.m | 43.5kg | 6960N | 0.95 |
| RF67R37DVE71MS4 | 359 | 0.25KW | 3.60r/min | 600N.m | 43.5kg | 7550N | 1.00 |
| RF67R37DVE71MS4 | 310 | 0.25KW | 4.20r/min | 515N.m | 43.5kg | 8430N | 1.15 |
| RF67R37DVE71MS4 | 264 | 0.25KW | 4.90r/min | 435N.m | 43.5kg | 9100N | 1.40 |
| RF67R37DVE71MS4 | 235 | 0.25KW | 5.50r/min | 385N.m | 43.5kg | 9420N | 1.55 |
| RF67R37DVE71MS4 | 201 | 0.25KW | 6.50r/min | 325N.m | 43.5kg | 9750N | 1.85 |
| RF67R37DVE71MS4 | 181 | 0.25KW | 7.20r/min | 295N.m | 43.5kg | 9900N | 2.00 |
Rf67r37dre63s4 deviation motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF67R37DRE63S4 | 891 | 0.12KW | 1.60r/min | 625N.m | 39kg | 7190N | 0.95 |
| RF67R37DRE63S4 | 730 | 0.12KW | 1.90r/min | 505N.m | 39kg | 8530N | 1.20 |
| RF67R37DRE63S4 | 644 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9060N | 1.35 |
| RF67R37DRE63S4 | 571 | 0.12KW | 2.40r/min | 385N.m | 39kg | 9430N | 1.55 |
| RF67R37DRE63S4 | 486 | 0.12KW | 2.80r/min | 320N.m | 39kg | 9790N | 1.85 |
| RF67R37DRE63S4 | 836 | 0.12KW | 1.60r/min | 590N.m | 39kg | 7670N | 1.00 |
| RF67R37DRE63S4 | 750 | 0.12KW | 1.80r/min | 490N.m | 39kg | 8630N | 1.20 |
| RF67R37DRE63S4 | 646 | 0.12KW | 2.10r/min | 440N.m | 39kg | 9050N | 1.35 |
| RF67R37DRE63S4 | 574 | 0.12KW | 2.40r/min | 400N.m | 39kg | 9330N | 1.50 |
| RF67R37DRE63S4 | 495 | 0.12KW | 2.80r/min | 345N.m | 39kg | 9660N | 1.75 |
| RF67R37DRE63S4 | 438 | 0.12KW | 3.20r/min | 285N.m | 39kg | 9940N | 2.10 |
Rf67r37dve71ms4 deviation electricalType:
Rx67r37dve71ms4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motor
Rxf67r37dve71ms4 electric motion single level b5 frfMotor geared reducer
R67r37dve71ms4 electric motor base foot is equipped with tilt gear-reducing power
R67fr37dve71ms4 motor base forreducing machines, b5frand for tilt gear-reducing motors
Rf67r37dve71ms4 electric motor b5fl
Rz67r37dve71ms4 electric motor b14 frf installation of tilt gear reduction power

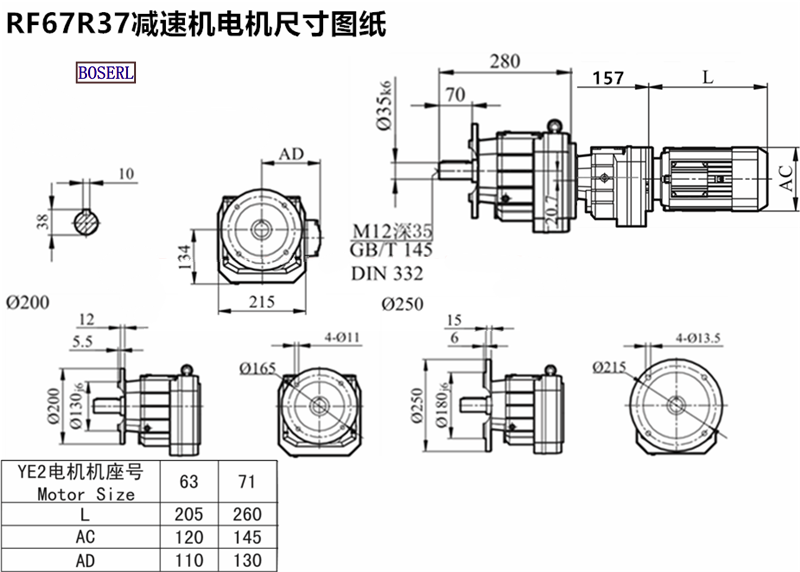

Rf67r37dve71ms4 deviation electricalInstall size drawings
Rf67r37dve71ms4 deviation electric power plant, three days' appointmentStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 0. 25 kw power power with a standing speed reduction machine rf67r37dve71ms4rf67r37dre63s4
