RF77DVE160L4Detailed Information
Keyword: 0. 18 kw 3-way brake power _rf77dve160l4_rf77dve160mc4
RF77DVE160L4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77DVE160L4 | 10.88 | 11KW | 136rpm | 770N.m | 151kg | 4410N | 0.85 |
| RF77DVE160L4 | 9.64 | 11KW | 153rpm | 685N.m | 151kg | 5130N | 0.90 |
| RF77DVE160L4 | 7.74 | 11KW | 191rpm | 550N.m | 151kg | 4750N | 1.10 |
| RF77DVE160L4 | 6.79 | 11KW | 217rpm | 480N.m | 151kg | 5350N | 1.20 |
| RF77DVE160L4 | 5.99 | 11KW | 246rpm | 425N.m | 151kg | 5800N | 1.25 |
| RF77DVE160L4 | 5.31 | 11KW | 278rpm | 375N.m | 151kg | 6150N | 1.35 |
Rf77dve160mc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77DVE160MC4 | 36.83 | 4KW | 40rpm | 960N.m | 82kg | 7040N | 0.85 |
| RF77DVE160MC4 | 33.47 | 4KW | 44rpm | 870N.m | 82kg | 9370N | 0.95 |
| RF77DVE160MC4 | 29.00 | 4KW | 50rpm | 755N.m | 82kg | 10500N | 1.1 |
| RF77DVE160MC4 | 25.23 | 4KW | 58rpm | 660N.m | 82kg | 10700N | 1.2 |
| RF77DVE160MC4 | 23.37 | 4KW | 62rpm | 610N.m | 82kg | 10500N | 1.35 |
| RF77DVE160MC4 | 21.43 | 4KW | 68rpm | 560N.m | 82kg | 10300N | 1.45 |
| RF77DVE160MC4 | 18.80 | 4KW | 78rpm | 490N.m | 82kg | 10000N | 1.6 |
| RF77DVE160MC4 | 17.82 | 4KW | 82rpm | 465N.m | 82kg | 9880N | 1.65 |
| RF77DVE160MC4 | 15.60 | 4KW | 94rpm | 405N.m | 82kg | 9560N | 1.80 |
| RF77DVE160MC4 | 14.05 | 4KW | 104rpm | 365N.m | 82kg | 9320N | 1.95 |
| RF77DVE160MC4 | 12.33 | 4KW | 118rpm | 320N.m | 82kg | 9010N | 2.10 |
| RF77DVE160MC4 | 10.88 | 4KW | 134rpm | 280N.m | 82kg | 8710N | 2.30 |
| RF77DVE160MC4 | 9.64 | 4KW | 151rpm | 250N.m | 82kg | 8430N | 2.50 |
| RF77DVE160MC4 | 8.59 | 4KW | 170rpm | 220N.m | 82kg | 8250N | 2.80 |
| RF77DVE160MC4 | 7.74 | 4KW | 189rpm | 200N.m | 82kg | 8010N | 3.00 |
| RF77DVE160MC4 | 6.79 | 4KW | 215rpm | 178N.m | 82kg | 7710N | 3.30 |
| RF77DVE160MC4 | 5.99 | 4KW | 244rpm | 157N.m | 82kg | 7430N | 3.40 |
| RF77DVE160MC4 | 5.31 | 4KW | 275rpm | 139N.m | 82kg | 7160N | 3.70 |
Rf77dve160l4 motor deceleratorType:
Rx77dve160l4 single-step foot installation of tilt gear-reducing motors
Rxf77dve160l4 single b5Motor geared reducer
R77dve160l4 bottom foot installation of tilt gear reduction power
R77fdve160l4 bottom foot, b5fl installation of tilt gear reduction power
Rf77dve160l4b5 installation of tilt gear-reducing power
Rz77dve160l4b14 installation of tilt gear-reducing electric power
Rx77dve160mc4 single-step bottom foot installation of tilt gear-reducing electric power
Rxf77dve160mc4 single-scale b5 frf installation of tilt gear-reducing motors
R77dve160mc4 bottom foot installation of tilt gear reduction power
R77fdve160mc4 bottom foot, b5frand installation of tilt gear reduction power
Rf77dve160mc4b5 installation of tilt gear-reducing power
Rz77dve160mc4b14 installation of tilt gear-reducing electric power

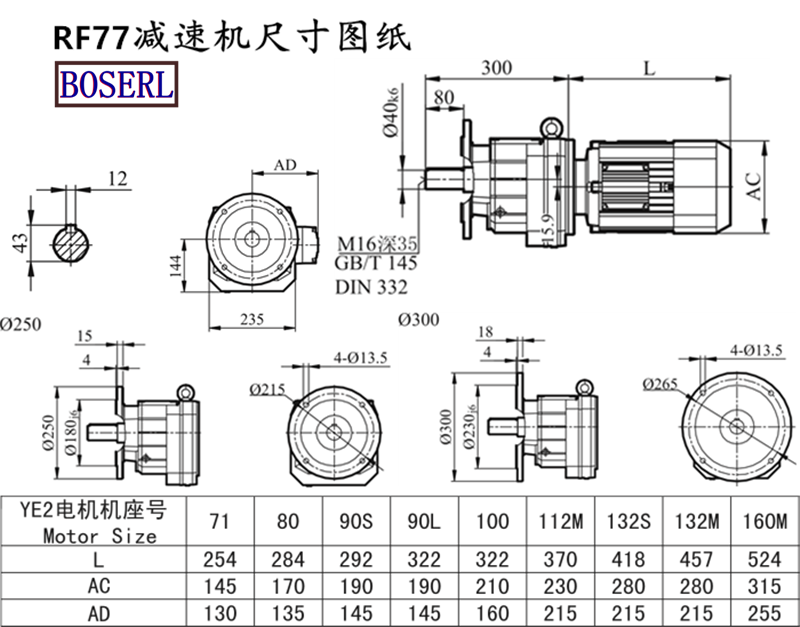

Rf77dve160l4 motor deceleratorInstall size drawings
Rf77dve160l4 motor deceleratorProducer: Please make an appointment three days in advanceVertical reducer
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
