18. 5 kw power power to what level-retarder _rf77r37dre71d4_boserl moving rf77r37dt63s4 decelerator manufacturer

RF77R37DRE71D4Detailed Information

prevnext

RF77R37DRE71D4

TEL：Email:[email protected]

详细信息

Keywords: 18. 5 kw electric power to what level-retarder _rf77r37dre71d4_rf77r37dt63s4

RF77R37DRE71D4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF77R37DRE71D4	373	0.37KW	3.70r/min	860N.m	55kg	9520N	0.95
RF77R37DRE71D4	327	0.37KW	4.20r/min	755N.m	55kg	10500N	1.10
RF77R37DRE71D4	289	0.37KW	4.80r/min	670N.m	55kg	11100N	1.20
RF77R37DRE71D4	260	0.37KW	5.30r/min	600N.m	55kg	11600N	1.35
RF77R37DRE71D4	224	0.37KW	6.20r/min	505N.m	55kg	12000N	1.60
RF77R37DRE71D4	197	0.37KW	7.00r/min	445N.m	55kg	12300N	1.85
RF77R37DRE71D4	169	0.37KW	8.20r/min	385N.m	55kg	12500N	2.10
RF77R37DRE71D4	149	0.37KW	9.30r/min	340N.m	55kg	12700N	2.40

RF77R37DT63S4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
RF77R37DT63S4	1303	0.12KW	1.10r/min	930N.m	50kg	8660N	0.85
RF77R37DT63S4	1124	0.12KW	1.20r/min	795N.m	50kg	10100N	1.05
RF77R37DT63S4	1047	0.12KW	1.30r/min	740N.m	50kg	10600N	1.10
RF77R37DT63S4	915	0.12KW	1.50r/min	635N.m	50kg	11300N	1.30
RF77R37DT63S4	1218	0.12KW	1.10r/min	820N.m	50kg	9910N	1.00
RF77R37DT63S4	1084	0.12KW	1.30r/min	740N.m	50kg	10600N	1.10
RF77R37DT63S4	940	0.12KW	1.50r/min	660N.m	50kg	11200N	1.25
RF77R37DT63S4	821	0.12KW	1.70r/min	520N.m	50kg	12000N	1.55
RF77R37DT63S4	731	0.12KW	1.90r/min	475N.m	50kg	12200N	1.70
RF77R37DT63S4	646	0.12KW	2.10r/min	455N.m	50kg	12300N	1.80
RF77R37DT63S4	520	0.12KW	2.60r/min	375N.m	50kg	12600N	2.20
RF77R37DT63S4	451	0.12KW	3.10r/min	320N.m	50kg	12700N	2.50
RF77R37DT63S4	422	0.12KW	3.30r/min	300N.m	50kg	12800N	2.70
RF77R37DT63S4	365	0.12KW	3.80r/min	255N.m	50kg	12900N	3.20

Rf77r37dre71d4 generatorsType:

Rx77r37dre71d4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors

Rxf77r37dre71d4 electric motion single level b5flMotor geared reducer

R77r37dre71d4 electric motor base foot installation of tilt gear reduction power

R77fr37drre71d4 motor base foot forreducing machines, and f-5 for tilt gear-reducing motors

Rf77r37dre71d4 electric motor b5fl

Rz77r37dre71d4 power drive b14fl installation of tilt gear reduction power

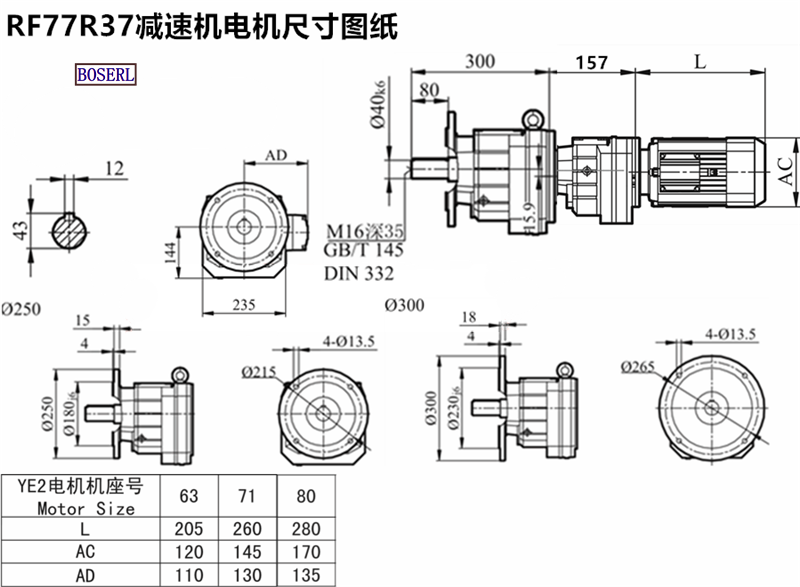

Rf77r37dre71d4 deviation motorInstall size drawings

wireless image_20230524161727.png

Rf77r37dre71d4 power plant. please make an appointment three days in advanceStraight output reduction machine

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements

标签: 18. 5 kw power power with a vertical speed-retarder rf77r37dre71d4 rf77r37dt63s4

tags： 18. 5 kw power power with a vertical speed-retarder rf77r37dre71d4 rf77r37dt63s4

上一条RF77R37DVE71S4
下一条RF77R37DRN63M4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
RF77R37DRE71D4减速机样本
RF77R37DRE71D4减速机图纸
