RF77R37DRS80N4Detailed Information
Keywords: 160 kw power with a vertical slasher _ rf77r37drs80n4_rf77r37dm63l4
RF77R37DRS80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77R37DRS80N4 | 276 | 0.55KW | 5.00r/min | 970N.m | 59.5kg | 6200N | 0.85 |
| RF77R37DRS80N4 | 236 | 0.55KW | 5.80r/min | 820N.m | 59.5kg | 9850N | 1.00 |
| RF77R37DRS80N4 | 221 | 0.55KW | 6.20r/min | 770N.m | 59.5kg | 10300N | 1.05 |
| RF77R37DRS80N4 | 186 | 0.55KW | 7.40r/min | 645N.m | 59.5kg | 11300N | 1.25 |
RF77R37DM63L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77R37DM63L4 | 858 | 0.18KW | 1.50r/min | 970N.m | 50.5kg | 5830N | 0.85 |
| RF77R37DM63L4 | 757 | 0.18KW | 1.70r/min | 850N.m | 50.5kg | 9590N | 0.95 |
| RF77R37DM63L4 | 671 | 0.18KW | 2.00r/min | 750N.m | 50.5kg | 10500N | 1.10 |
| RF77R37DM63L4 | 571 | 0.18KW | 2.30r/min | 630N.m | 50.5kg | 11400N | 1.30 |
| RF77R37DM63L4 | 821 | 0.18KW | 1.60r/min | 880N.m | 50.5kg | 9230N | 0.90 |
| RF77R37DM63L4 | 731 | 0.18KW | 1.80r/min | 800N.m | 50.5kg | 10100N | 1.00 |
| RF77R37DM63L4 | 646 | 0.18KW | 2.00r/min | 745N.m | 50.5kg | 10500N | 1.10 |
| RF77R37DM63L4 | 560 | 0.18KW | 2.40r/min | 645N.m | 50.5kg | 11300N | 1.25 |
| RF77R37DM63L4 | 488 | 0.18KW | 2.70r/min | 550N.m | 50.5kg | 11800N | 1.50 |
| RF77R37DM63L4 | 436 | 0.18KW | 3.00r/min | 485N.m | 50.5kg | 12100N | 1.70 |
| RF77R37DM63L4 | 373 | 0.18KW | 3.50r/min | 420N.m | 50.5kg | 12400N | 1.95 |
| RF77R37DM63L4 | 327 | 0.18KW | 4.00r/min | 365N.m | 50.5kg | 12600N | 2.20 |
| RF77R37DM63L4 | 289 | 0.18KW | 4.60r/min | 325N.m | 50.5kg | 12700N | 2.50 |
Rf77r37drrs80n4 machineType:
Rx77r37drrs80n4 electricly motorized single-stage bottom foot installation of tilt gear-reducing motors
Rxf77r37drrs80n4 power-motion single-level b5 franMotor geared reducer
R77r37drrs80n4 power-driven motor base with tilt gear-reducing power
R77fr37drrs80n4 motor base, b5fl with tilt gear reduction power
Rf77r37drrs80n4 power drive b5 fran with tilt gear reduction power
Rz77r37drrs80n4 power drive b14 flang installation of slasher gear-reducing power

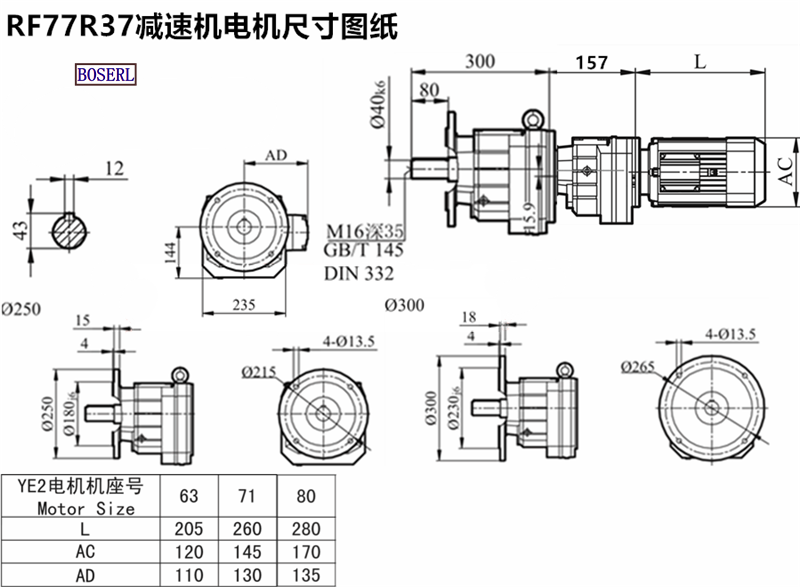

Rf77r37drrs80n4 deviation motorInstall size drawings
Rf77r37drrs80n4 deviation power plant, three days' appointmentStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 160kw power power with a vertical slash gear-retarder rf77r37rs80n4rf77r37dm63l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF77R37DRS80N4减速机样本 |
|
| RF77R37DRS80N4减速机图纸 |
|
