RF77RF37-Y63M4Detailed Information
Keywords: 37kw electric power to what level-reducing machine _rf77rf37-y63m4_rf77rf37-y80m4
RF77RF37-Y63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77RF37-Y63M4 | 1303 | 0.12KW | 1.10r/min | 930N.m | 50kg | 8660N | 0.85 |
| RF77RF37-Y63M4 | 1124 | 0.12KW | 1.20r/min | 795N.m | 50kg | 10100N | 1.05 |
| RF77RF37-Y63M4 | 1047 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| RF77RF37-Y63M4 | 915 | 0.12KW | 1.50r/min | 635N.m | 50kg | 11300N | 1.30 |
| RF77RF37-Y63M4 | 1218 | 0.12KW | 1.10r/min | 820N.m | 50kg | 9910N | 1.00 |
| RF77RF37-Y63M4 | 1084 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| RF77RF37-Y63M4 | 940 | 0.12KW | 1.50r/min | 660N.m | 50kg | 11200N | 1.25 |
| RF77RF37-Y63M4 | 821 | 0.12KW | 1.70r/min | 520N.m | 50kg | 12000N | 1.55 |
| RF77RF37-Y63M4 | 731 | 0.12KW | 1.90r/min | 475N.m | 50kg | 12200N | 1.70 |
| RF77RF37-Y63M4 | 646 | 0.12KW | 2.10r/min | 455N.m | 50kg | 12300N | 1.80 |
| RF77RF37-Y63M4 | 520 | 0.12KW | 2.60r/min | 375N.m | 50kg | 12600N | 2.20 |
| RF77RF37-Y63M4 | 451 | 0.12KW | 3.10r/min | 320N.m | 50kg | 12700N | 2.50 |
| RF77RF37-Y63M4 | 422 | 0.12KW | 3.30r/min | 300N.m | 50kg | 12800N | 2.70 |
| RF77RF37-Y63M4 | 365 | 0.12KW | 3.80r/min | 255N.m | 50kg | 12900N | 3.20 |
RF77RF37-Y80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RF77RF37-Y80M4 | 276 | 0.55KW | 5.00r/min | 970N.m | 59.5kg | 6200N | 0.85 |
| RF77RF37-Y80M4 | 236 | 0.55KW | 5.80r/min | 820N.m | 59.5kg | 9850N | 1.00 |
| RF77RF37-Y80M4 | 221 | 0.55KW | 6.20r/min | 770N.m | 59.5kg | 10300N | 1.05 |
| RF77RF37-Y80M4 | 186 | 0.55KW | 7.40r/min | 645N.m | 59.5kg | 11300N | 1.25 |
Rf77rf37-y63m4 machineType:
Rx77rf37-y63m4 power-movement motor single-stage bottom foot installation of tilt gear-reducing motors
Rxf77rf37-y63m4 electron motion single level b5 frfMotor geared reducer
R77rf37-y63m4 electric motor base foot installation of tilt gear reduction power
R77frf37-y63m4 deviation motor base, b5franc installation of tilt gear deviator
Rf77rf37-y63m4 electron modinal b5 installation of tilt gear deviation electric
Rz77rf37-y63m4 deviation engine b14 frf installation of tilt gear deviation engine

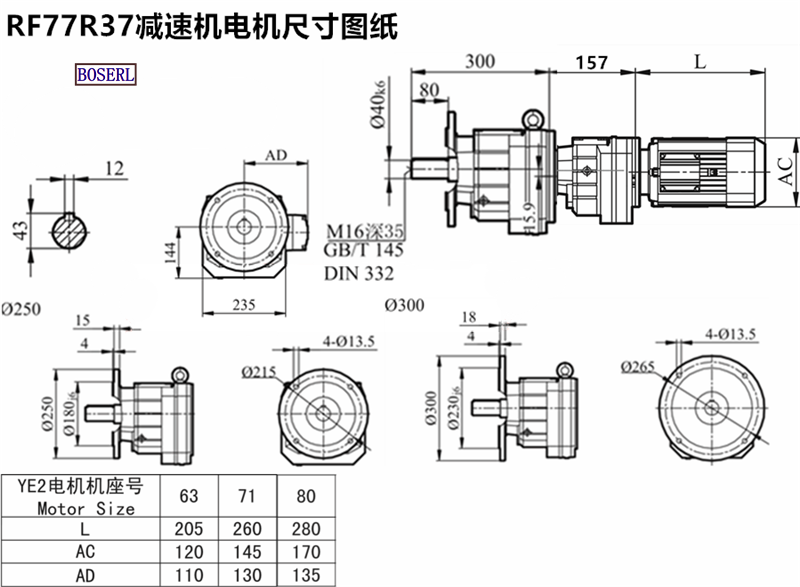

Rf77rf37-y63m4 deviation electricInstall size drawings
Rf77rf37-y63m4 deviation power plantStraight output reduction machine
Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor
RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared
RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
标签: 37kw electric power, how much of a flat-speeder rf77rf37-y63m4 rf77rf37-y80m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RF77RF37Y63M4减速机样本 |
|
| RF77RF37Y63M4减速机图纸 |
|
