Rf87 speed-reducing motorDetailed Information

Rf87 speed-reducing motor
prevnext

Rf87 speed-reducing motor

TEL：Email:[email protected]
  1. 详细信息

Keyword: rf87 deviator electric motor_rf87y5. 5kw_rf87y7. 5kw_rf87 deviator_rf87 deviator manufacturer_rf87 deviator manufacturer

RF87Y5.5KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF87Y5.5KW47.585.5KW31rpm1710N.m123kg15700N0.9
RF87Y5.5KW41.745.5KW35rpm1500N.m123kg17200N1.05
RF87Y5.5KW36.845.5KW40rpm1320N.m123kg17100N1.15
RF87Y5.5KW32.665.5KW45rpm1170N.m123kg16700N1.3
RF87Y5.5KW27.885.5KW52rpm1000N.m123kg16100N1.5
RF87Y5.5KW27.845.5KW52rpm1000N.m123kg16100N1.55
RF87Y5.5KW23.45.5KW62rpm840N.m123kg15400N1.85
RF87Y5.5KW21.515.5KW68rpm775N.m123kg15100N1.95
RF87Y5.5KW19.15.5KW76rpm685N.m123kg14600N2.1
RF87Y5.5KW17.085.5KW85rpm615N.m123kg14200N2.3
RF87Y5.5KW15.355.5KW95rpm550N.m123kg13800N2.4
RF87Y5.5KW13.335.5KW109rpm480N.m123kg13300N2.7
RF87Y5.5KW11.935.5KW122rpm430N.m123kg12900N2.9
RF87Y5.5KW9.95.5KW147rpm355N.m123kg12200N3.3
RF87Y5.5KW9.145.5KW159rpm330N.m123kg12100N3.7
RF87Y5.5KW8.225.5KW177rpm295N.m123kg11700N3.9
RF87Y5.5KW7.135.5KW204rpm255N.m123kg11200N4.2

Rf87y7. 5kwreducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF87Y7.5KW36.847.5KW40rpm1790N.m136kg14800N0.85
RF87Y7.5KW32.667.5KW45rpm1590N.m136kg15600N0.95
RF87Y7.5KW27.887.5KW53rpm1350N.m136kg15200N1.1
RF87Y7.5KW27.847.5KW53rpm1350N.m136kg15200N1.15
RF87Y7.5KW23.47.5KW63rpm1140N.m136kg14600N1.35
RF87Y7.5KW21.517.5KW68rpm1040N.m136kg14400N1.45
RF87Y7.5KW19.17.5KW77rpm930N.m136kg14000N1.55
RF87Y7.5KW17.087.5KW86rpm830N.m136kg13600N1.65
RF87Y7.5KW15.357.5KW96rpm745N.m136kg12600N1.8
RF87Y7.5KW13.337.5KW110rpm645N.m136kg12800N1.95
RF87Y7.5KW11.937.5KW123rpm580N.m136kg12500N2.1
RF87Y7.5KW9.97.5KW148rpm480N.m136kg11900N2.4
RF87Y7.5KW9.147.5KW161rpm445N.m136kg11800N2.7
RF87Y7.5KW8.227.5KW179rpm400N.m136kg11500N2.9
RF87Y7.5KW7.137.5KW206rpm345N.m136kg11000N3.1
RF87Y7.5KW6.397.5KW230rpm310N.m136kg10700N3.3
RF87Y7.5KW5.37.5KW277rpm255N.m136kg10100N3.5

Rf87reducing motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

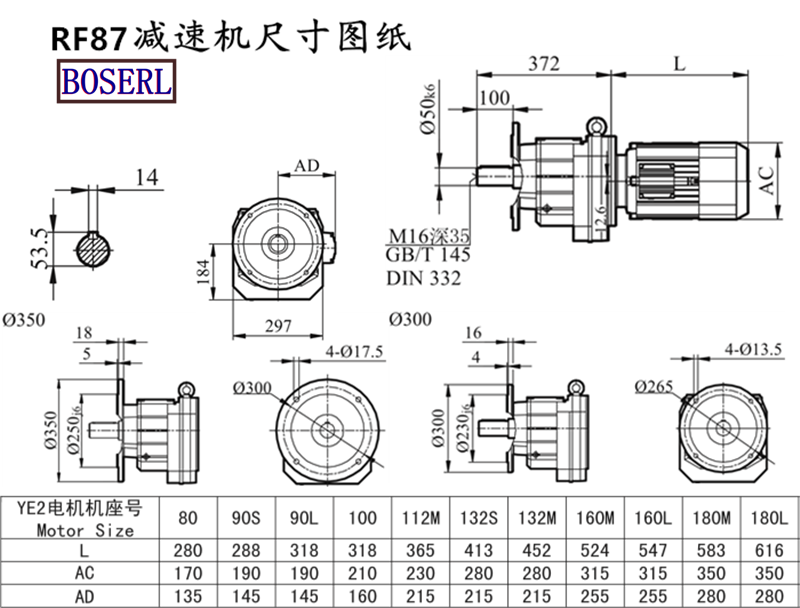

Rf87reducing motorInstall size drawings


Horizontal reducer.png

Rf87reducing motorProduction plant display: three days' appointment for the factory

Vertical reducerPresentation of application cases:

Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements


标签:  Rf87 growth rater electric motor rf87y5. 5 kw rf87y7. 5 kw rf87 decelerator rf87 production plant rf87 decelerator manufacturer
tags： Rf87 growth rater electric motor rf87y5. 5 kw   rf87y7. 5 kw   rf87 decelerator rf87 production plant rf87 decelerator manufacturer
