RF97DRS100LC4Detailed Information

RF97DRS100LC4
prevnext

RF97DRS100LC4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 11kw singlereducing machine_rf97drs100lc4_rf97drs100ls4

RF97DRS100LC4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF97DRS100LC4150.783kw9.3rpm3080N.m125kg16200N0.95
RF97DRS100LC4126.75
3kw11rpm2590N.m125kg23600N1.15
RF97DRS100LC4116.483kw12rpm2380N.m125kg24700N1.25
RF97DRS100LC4103.44
3kw14rpm2110N.m125kg25900N1.4
RF97DRS100LC492.483kw15rpm1890N.m125kg26800N1.6
RF97DRS100LC483.153kw17rpm1700N.m125kg27300N1.75
RF97DRS100LC472.173kw19rpm1470N.m125kg27700N2
RF97DRS100LC465.213kw21rpm1330N.m125kg27000N2.2
RF97DRS100LC459.923kw23rpm1220N.m125kg26400N2.4
RF97DRS100LC453.213kw26rpm1080N.m125kg25600N2.8
RF97DRS100LC447.583kw29rpm970N.m125kg24800N3.1
RF97DRS100LC442.783kw33rpm870N.m125kg24000N3.4
RF97DRS100LC437.133kw38rpm755N.m125kg23100N4
RF97DRS100LC433.253kw42rpm680N.m125kg22400N4.2

Rf97drs100ls4 slowing machine parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RF97DRS100LS4150.783kw9.3rpm3080N.m125kg16200N0.95
RF97DRS100LS4126.75
3kw11rpm2590N.m125kg23600N1.15
RF97DRS100LS4116.483kw12rpm2380N.m125kg24700N1.25
RF97DRS100LS4103.44
3kw14rpm2110N.m125kg25900N1.4
RF97DRS100LS492.483kw15rpm1890N.m125kg26800N1.6
RF97DRS100LS483.153kw17rpm1700N.m125kg27300N1.75
RF97DRS100LS472.173kw19rpm1470N.m125kg27700N2
RF97DRS100LS465.213kw21rpm1330N.m125kg27000N2.2
RF97DRS100LS459.923kw23rpm1220N.m125kg26400N2.4
RF97DRS100LS453.213kw26rpm1080N.m125kg25600N2.8
RF97DRS100LS447.583kw29rpm970N.m125kg24800N3.1
RF97DRS100LS442.783kw33rpm870N.m125kg24000N3.4
RF97DRS100LS437.133kw38rpm755N.m125kg23100N4
RF97DRS100LS433.253kw42rpm680N.m125kg22400N4.2

RF97DRS100LC4Speeding machine type:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

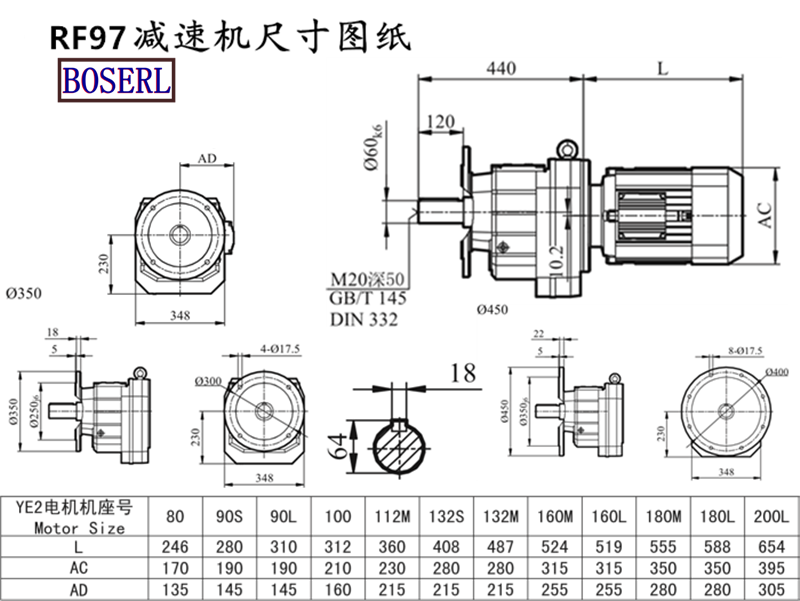

RF97DRS100LC4Induction Motor 3Ph motors installed size drawings


Horizontal reducer.png

RF97DRS100LC4At thereducing plant: three days in advance

Vertical reducerPresentation of application cases:


Vertical reducer,Vertical gear reducer,Vertical motor reducer Geared motor

RF17 Gear Reducer, RF27 Reducer, RF37 Reducer, RF47 Reducer, RF57 Reducer, RF67 Reducer, RF77 Reducer, RF87 Reducer, RF97 Reducer, RF107 Reducer, RF137 Reducer, RF147 Reducer, RF167 Motor geared

RF Series Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW. >For engineer assistance with model selection, please add WeChat 13827261050 and leave a message with your parameter requirements
