RX107DR160L4Detailed Information
Keywords: 0. 25 kw single deviation engine_rx107dr160l4_ rx107dr160mc4
RX107DR160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107DR160L4 | 65.6 | 11kw | 22rpm | 4710N.m | 235kg | 26000N | 0.9 |
| RX107DR160L4 | 59.41 | 11kw | 25rpm | 4270N.m | 235kg | 27600N | 1 |
| RX107DR160L4 | 52.68 | 11kw | 28rpm | 3790N.m | 235kg | 27000N | 1.15 |
| RX107DR160L4 | 47.63 | 11kw | 31rpm | 3420N.m | 235kg | 26500N | 1.25 |
| RX107DR160L4 | 40.37 | 11kw | 36rpm | 2900N.m | 235kg | 25700N | 1.5 |
| RX107DR160L4 | 35.26 | 11kw | 41rpm | 2530N.m | 235kg | 24900N | 1.7 |
| RX107DR160L4 | 29.44 | 11kw | 50rpm | 2120N.m | 235kg | 23900N | 2 |
| RX107DR160L4 | 30.77 | 11kw | 47rpm | 2210N.m | 235kg | 24200N | 1.95 |
| RX107DR160L4 | 27.58 | 11kw | 53rpm | 1980N.m | 235kg | 23600N | 2.2 |
| RX107DR160L4 | 24.9 | 11kw | 59rpm | 1790N.m | 235kg | 23000N | 2.4 |
| RX107DR160L4 | 22.62 | 11kw | 65rpm | 1620N.m | 235kg | 22400N | 2.6 |
| RX107DR160L4 | 20.07 | 11kw | 73rpm | 1440N.m | 235kg | 21700N | 3 |
| RX107DR160L4 | 18.21 | 11kw | 80rpm | 1310N.m | 235kg | 21200N | 3.3 |
Rx107dr160mc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107DR160MC4 | 65.6 | 11kw | 22rpm | 4710N.m | 235kg | 26000N | 0.9 |
| RX107DR160MC4 | 59.41 | 11kw | 25rpm | 4270N.m | 235kg | 27600N | 1 |
| RX107DR160MC4 | 52.68 | 11kw | 28rpm | 3790N.m | 235kg | 27000N | 1.15 |
| RX107DR160MC4 | 47.63 | 11kw | 31rpm | 3420N.m | 235kg | 26500N | 1.25 |
| RX107DR160MC4 | 40.37 | 11kw | 36rpm | 2900N.m | 235kg | 25700N | 1.5 |
| RX107DR160MC4 | 35.26 | 11kw | 41rpm | 2530N.m | 235kg | 24900N | 1.7 |
| RX107DR160MC4 | 29.44 | 11kw | 50rpm | 2120N.m | 235kg | 23900N | 2 |
| RX107DR160MC4 | 30.77 | 11kw | 47rpm | 2210N.m | 235kg | 24200N | 1.95 |
| RX107DR160MC4 | 27.58 | 11kw | 53rpm | 1980N.m | 235kg | 23600N | 2.2 |
| RX107DR160MC4 | 24.9 | 11kw | 59rpm | 1790N.m | 235kg | 23000N | 2.4 |
| RX107DR160MC4 | 22.62 | 11kw | 65rpm | 1620N.m | 235kg | 22400N | 2.6 |
| RX107DR160MC4 | 20.07 | 11kw | 73rpm | 1440N.m | 235kg | 21700N | 3 |
| RX107DR160MC4 | 18.21 | 11kw | 80rpm | 1310N.m | 235kg | 21200N | 3.3 |
RX107DR160L4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

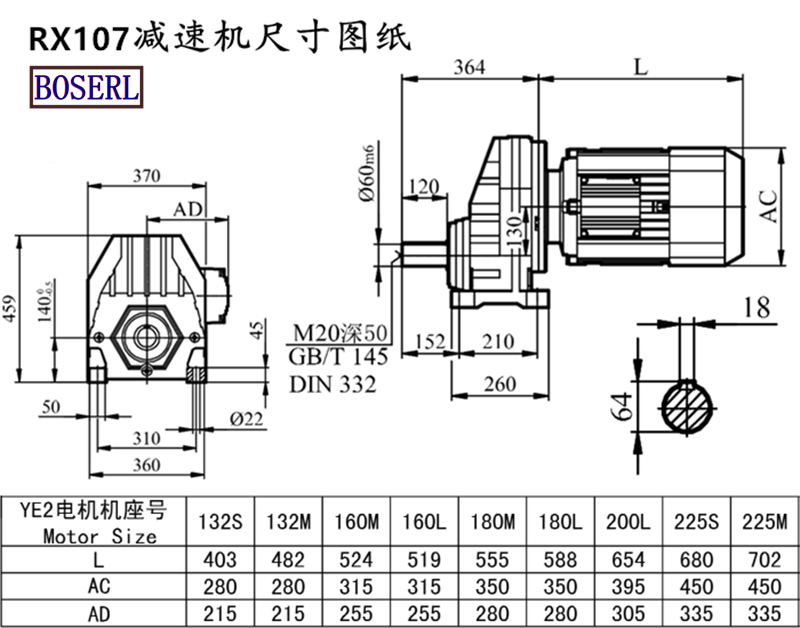

RX107DR160L4Induction Motor 3Ph motors installed size drawings
RX107DR160L4At thereducing plant: three days in advance
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: 0. 25kw single speed-reducing machine rx107dr160l4rrx107dr160mc4
- 上一条RX107DM160L4
- 下一条RX107DRE160L4
