RX107DT180LC4Detailed Information
Keyword: 75kw threereducing machines_rx107dt180lc4_rx107drrs180lc4
RX107DT180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107DT180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| RX107DT180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| RX107DT180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| RX107DT180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| RX107DT180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| RX107DT180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| RX107DT180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| RX107DT180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| RX107DT180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| RX107DT180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| RX107DT180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| RX107DT180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| RX107DT180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| RX107DT180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
Rx107drs180lc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107DRS180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| RX107DRS180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| RX107DRS180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| RX107DRS180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| RX107DRS180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| RX107DRS180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| RX107DRS180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| RX107DRS180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| RX107DRS180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| RX107DRS180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| RX107DRS180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| RX107DRS180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| RX107DRS180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| RX107DRS180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
RX107DT180LC4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

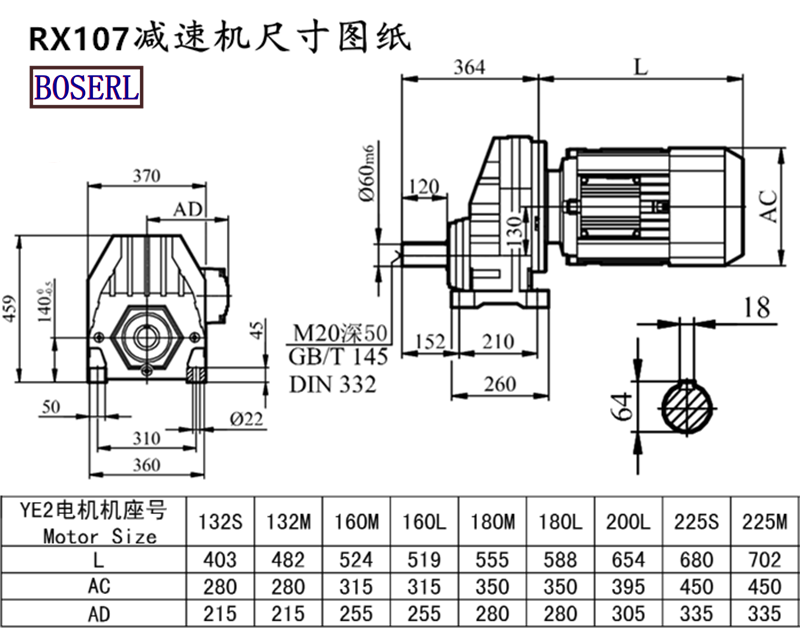

RX107DT180LC4Induction Motor 3Ph motors installed size drawings
RX107DT180LC4At thereducing plant: three days in advance
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: 75kw three speed-reducing motors rx107dt180lc4 rx107drs180lc4
- 上一条RX107DRE180LC4
- 下一条RX107DRN180LC4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RX107DT180LC4减速机样本 |
|
| RX107DT180LC4三维图纸 |
|
