Rx107 motor for speed reductionDetailed Information
Keyword: rx107 deviation engine_rx107y132m4_ rx107y2. 2kw_rx107 deviator
RX107Y132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107Y132M4 | 92.7 | 7.5kw | 16rpm | 4590N.m | 215kg | 27800N | 0.95 |
| RX107Y132M4 | 78.57 | 7.5kw | 18rpm | 3890N.m | 215kg | 31500N | 1.1 |
| RX107Y132M4 | 72.88 | 7.5kw | 20rpm | 3610N.m | 215kg | 31200N | 1.2 |
| RX107Y132M4 | 65.6 | 7.5kw | 22rpm | 3250N.m | 215kg | 30600N | 1.3 |
| RX107Y132M4 | 59.41 | 7.5kw | 24rpm | 2940N.m | 215kg | 29900N | 1.45 |
| RX107Y132M4 | 52.68 | 7.5kw | 27rpm | 2610N.m | 215kg | 29100N | 1.65 |
| RX107Y132M4 | 47.63 | 7.5kw | 30rpm | 2360N.m | 215kg | 28400N | 1.8 |
| RX107Y132M4 | 40.37 | 7.5kw | 36rpm | 2000N.m | 215kg | 27300N | 2.2 |
| RX107Y132M4 | 35.26 | 7.5kw | 41rpm | 1740N.m | 215kg | 26300N | 2.5 |
| RX107Y132M4 | 29.44 | 7.5kw | 49rpm | 1460N.m | 215kg | 25100N | 2.9 |
| RX107Y132M4 | 30.77 | 7.5kw | 47rpm | 1520N.m | 215kg | 25400N | 2.8 |
| RX107Y132M4 | 27.58 | 7.5kw | 52rpm | 1360N.m | 215kg | 24700N | 3.2 |
| RX107Y132M4 | 24.9 | 7.5kw | 58rpm | 1230N.m | 215kg | 24000N | 3.5 |
| RX107Y132M4 | 22.62 | 7.5kw | 64rpm | 1120N.m | 215kg | 23400N | 3.8 |
Rx107y2. 2kw reduction engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX107Y2.2KW | 251.15 | 2.2kw | 5.6rpm | 3760N.m | 180kg | 32100N | 1.15 |
| RX107Y2.2KW | 229.95 | 2.2kw | 6.1rpm | 3450N.m | 180kg | 33400N | 1.25 |
| RX107Y2.2KW | 203.16 | 2.2kw | 6.9rpm | 3040N.m | 180kg | 34800N | 1.4 |
| RX107Y2.2KW | 172.34 | 2.2kw | 8.1rpm | 2580N.m | 180kg | 36000N | 1.65 |
| RX107Y2.2KW | 158.68 | 2.2kw | 8.8rpm | 2380N.m | 180kg | 36300N | 1.8 |
| RX107Y2.2KW | 141.83 | 2.2kw | 9.9rpm | 2120N.m | 180kg | 36600N | 2 |
| RX107Y2.2KW | 127.68 | 2.2kw | 11rpm | 1910N.m | 180kg | 36900N | 2.2 |
| RX107Y2.2KW | 115.63 | 2.2kw | 12rpm | 1730N.m | 180kg | 37000N | 2.5 |
| RX107Y2.2KW | 102.53 | 2.2kw | 14rpm | 1530N.m | 180kg | 37200N | 2.8 |
| RX107Y2.2KW | 92.7 | 2.2kw | 15rpm | 1390N.m | 180kg | 37300N | 3.1 |
RX107-caliber motorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

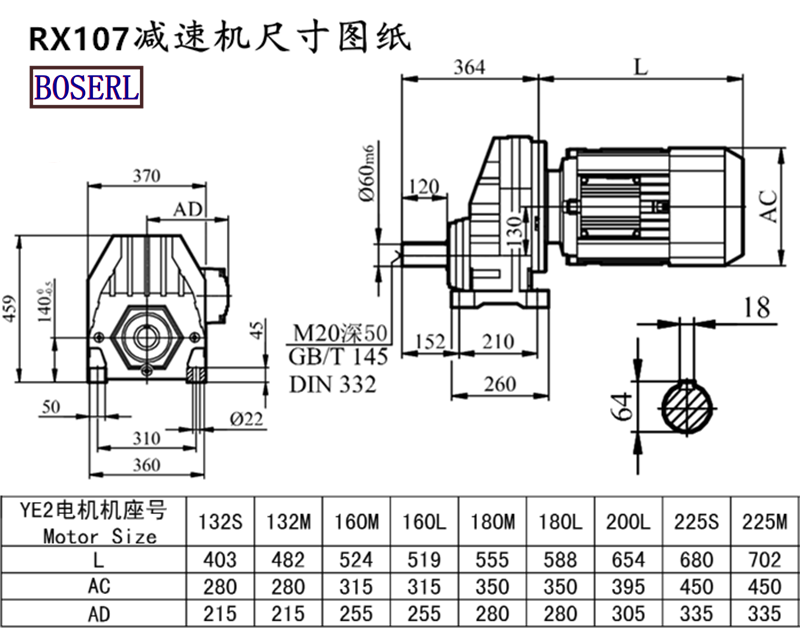

Rx107 motor for reductionInstall size drawings
Rx107 motor for reductionProduction plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: rx107y132m4rrx107y2. 2kw rx107 deviation machine rx107 deviation factory
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RX107减速机电动机样本 |
|
| RX107Y132M4三维图纸 |
|
