RX57DRS132ML4Detailed Information
Keywords: 132kw220 volt-reducing electric power _rx57drs132ml4_rx57drn132ml4
RX57DRS132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX57DRS132ML4 | 7.97 | 7.5KW | 184rpm | 385N.m | 91kg | 1130N | 0.90 |
| RX57DRS132ML4 | 7.53 | 7.5KW | 195rpm | 365N.m | 91kg | 1420N | 0.95 |
| RX57DRS132ML4 | 6.41 | 7.5KW | 229rpm | 310N.m | 91kg | 2130N | 1.05 |
| RX57DRS132ML4 | 5.82 | 7.5KW | 252rpm | 280N.m | 91kg | 2470N | 1.15 |
| RX57DRS132ML4 | 5.05 | 7.5KW | 291rpm | 245N.m | 91kg | 2750N | 1.25 |
| RX57DRS132ML4 | 4.39 | 7.5KW | 335rpm | 210N.m | 91kg | 2800N | 1.30 |
Rx57drn132ml4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX57DRN132ML4 | 186.89 | 0.12KW | 7.40rpm | 155N.m | 23.5kg | 7920N | 2.90 |
| RX57DRN132ML4 | 172.17 | 0.12KW | 8.00rpm | 143N.m | 23.5kg | 7940N | 3.20 |
| RX57DRN132ML4 | 147.92 | 0.12KW | 9.30rpm | 123N.m | 23.5kg | 7960N | 3.70 |
| RX57DRN132ML4 | 128.77 | 0.12KW | 11.0rpm | 107N.m | 23.5kg | 7980N | 4.20 |
Rx57drs132ml4 motor deceleratorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

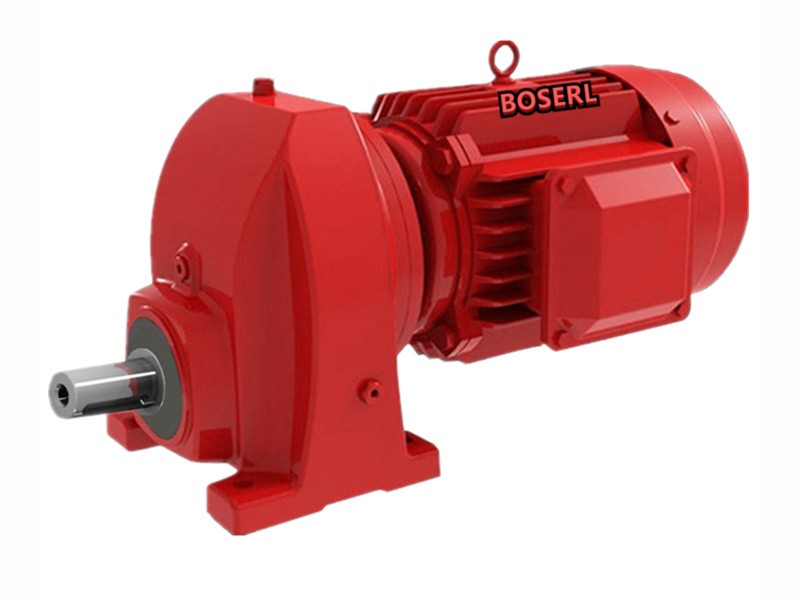

R. Dr. bottom foot with slash gears

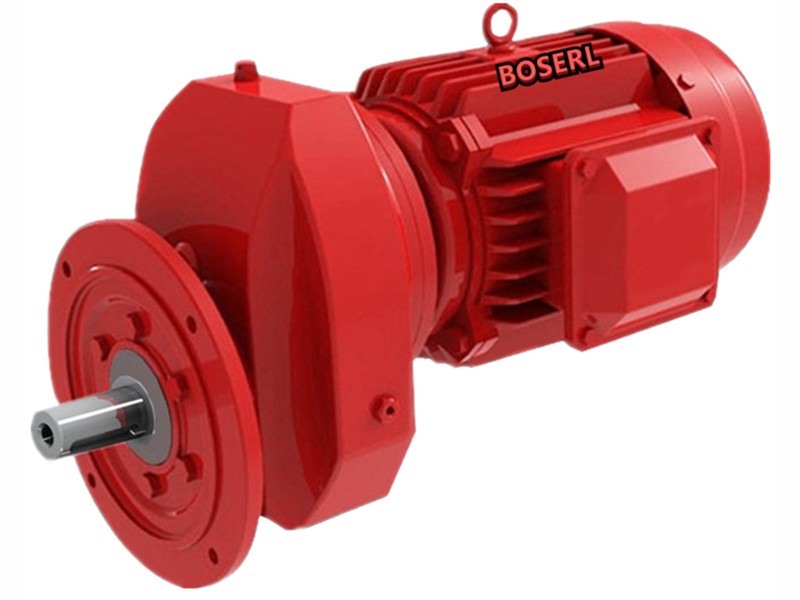

R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction
Rx57drs132ml4 motor deceleratorInstall size drawings
Rx57drs132ml4 motor deceleratorProduction plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
